Photovoltaic Distribution Board Pv Dc 1000V T1 T2 Surge Arrester Flp-Pv1000/Y Saltek 1-String Ip65 Solar Surface-Mounted Doktorvolt Dv-6418-Fot

Photovoltaic distribution board PV surge arrester Saltek solar distribution board Doktorvolt

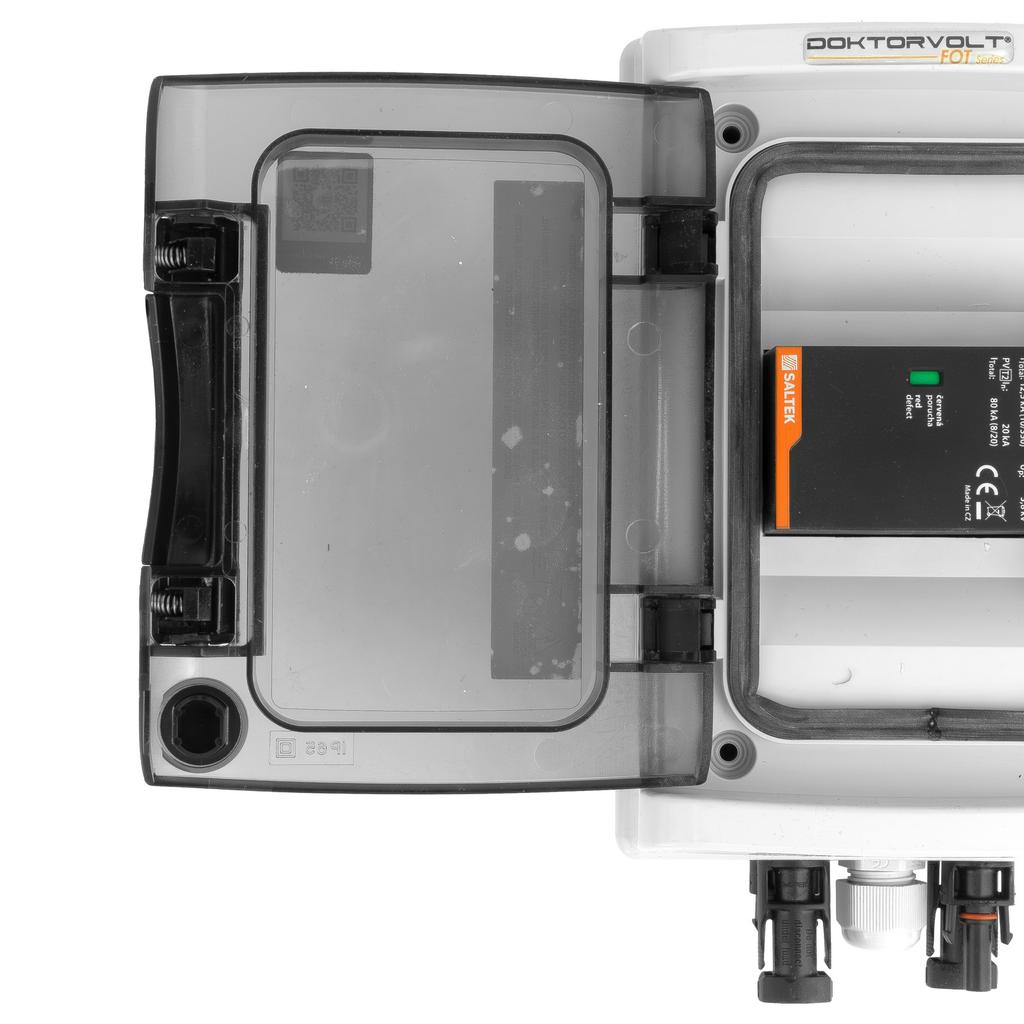

Durable photovoltaic distribution board made of high-quality materials with a transparent door. Solar distribution board equipped with a Saltek surge arrester.

Versatility in a compact distribution board

Compact photovoltaic distribution board 142x210x100mm made of high-quality technopolymer. Equipped with transparent door for easy assessment of the device's operating status.

Comfort of use combined with quality of workmanship

The switchboard is equipped with the FLP-PV1000/Y varistor surge arrester from the renowned manufacturer Saltek. Designed for mounting on a DIN rail, it effectively protects PV systems with an external LPS system when there is no insulating distance.

An additional advantage is visual damage indication, plug-in modules and locking possibility.

Sockets and Electrical Data

1x DC 3P T1 T2 PV VDE

Number of PV circuits (STRING): 1

Maximum operating voltage +/PE, −/PE UCPV: 1050V DC

Total discharge current (10/350 µs) ITotal: 12.5 kA

Surge current (10/350 µs) Iimp: 6.25 kA

Total discharge current (8/20 µs) ITotal: 80 kA

Rated discharge current (8/20 µs) In: 20 kA

Maximum discharge current (8/20 µs) Imax: 40 kA

Protection level Voltage protection level between poles +/− Up 3.8 kV

Voltage protection level +/PE, −/PE Up: 43.8 kV

Housing and Technical Data

Halogen-free material (HALOGEN-FREE): Yes

Cross-section of rigid conductors (min–max): 4.0 – 35 mm²

Cross-section of stranded conductors (min–max): 2.5 – 25 mm²

Wiring and Standards

Photovoltaic male connector IP68 1500V MC4: 2 pcs. + 2 pcs. for self-assembly on the cable

Photovoltaic female connector IP68 1500V MC4: 2 pcs. + 2 pcs. for self-assembly on the cable

Power cables + 6mm2 Red

Neutral conductors - 6mm2 Black

Certificate = quality guarantee:

DOKTORVOLT brand products are routinely tested to ensure the highest product quality. After passing the tests, each product receives an individual certificate confirming the quality control carried out. The company uses a certified TÜV SÜD system in the production process, which proves high quality.

IP Protection Rating = Greater Safety:

IP Protection Rating is an international standard that determines the degree to which an item is resistant to potential risk factors. It consists of two digits that inform us about the product's dust and water resistance.

Determining the IP rating allows you to consciously use the product in safe conditions. The IP65 protection rating tells us that the device:

- is fully protected against the ingress of dust

- is protected against water jets from any direction

The Doktorvolt® company was founded in 2013. The dynamically developing company has conquered the Polish and foreign markets. The company's headquarters is located in Malichów in the Opole Voivodeship, where a modern production hall and warehouse are located.

The company specializes in the production of construction switchboards, distinguished by their quality and reliability. Each switchboard is constructed of high-quality components. The products meet the safety standards and norms applicable in the European Union.

Model: DV-6418-FOT EAN: 5905191016418 Product serial number: FOT Manufacturer: DOKTORVOLT Surge protection: T1, T2 Type of protective element: Varistor (MOV) in "Y" configuration Rated short circuit current ISCPV: 10 kA DC Response time ta: 25 ns Type of construction: Surface-mounted Housing dimensions: 142 x 210 x 100 mm Housing material: Technopolymer UV resistance: Yes Mechanical resistance: IK08 Housing color: Gray RAL 7035 Number of modules: 4 Housing protection degree: IP65 Complete switchgear protection degree: IP65 Installation temperature: -25 +60 °C Protection class: II Rated insulation voltage UI: 1000V Fault signal: Red indicator field Gland: 1x PG11 Mounting pins with screw: 4x
