Cable Gland Pg135 Ip68 For Cables 7-125mm Cable Gland Dgn 2957

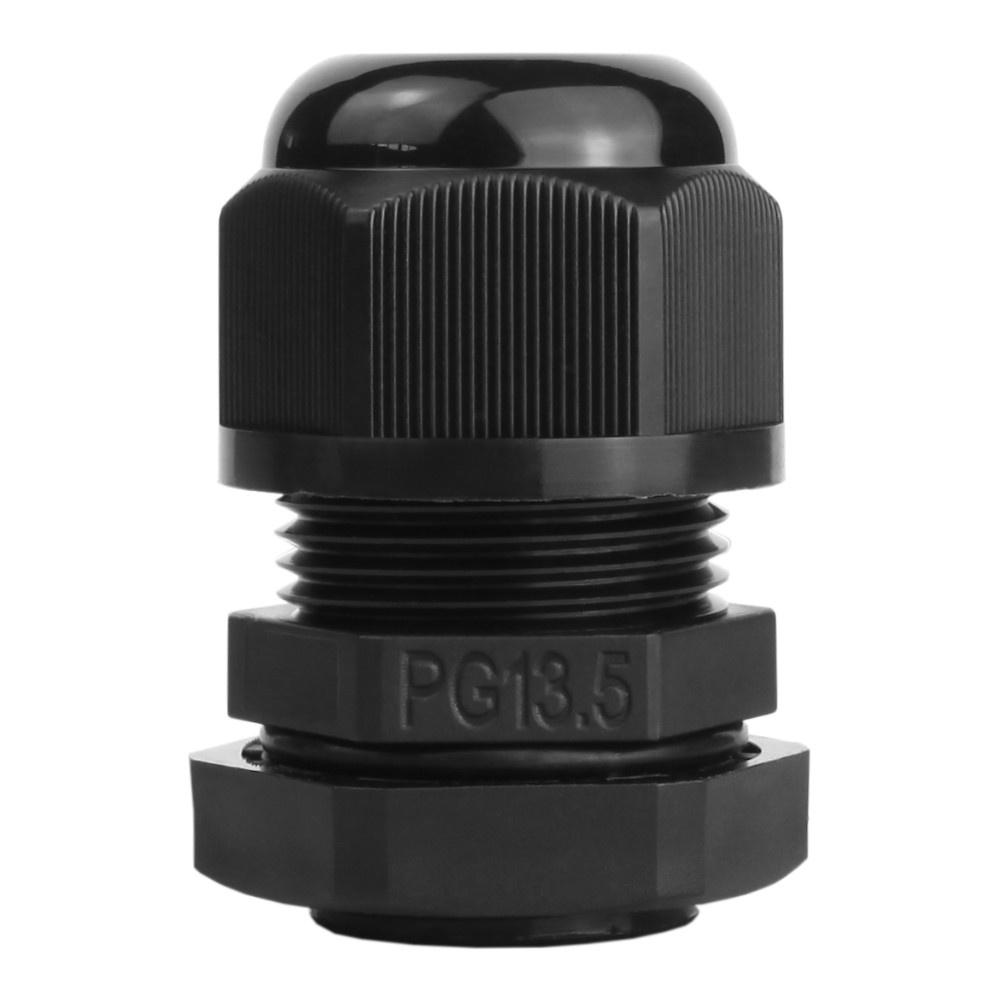

Cable gland PG13.5

DEGSON is one of the leading "Hi-Tech" enterprises, with a laboratory authorized by both UL (CTDP) and VDE. DEGSON is distinguished by many years of experience, a spirit of pragmatic improvement, responsibility, and harmonious development, which translates into modern and innovative products of the highest quality, meeting all required standards.

DEGSON's laboratory is equipped with advanced testing equipment and devices, allowing us to conduct all terminal block tests in accordance with UL1059, UL486E, IEC60998, IEC61984, IEC60947, GB13140, and CSAC22 2NO 158 standards.

DEGSON has established a quality management system that complies with ISO9001, ISO14001, and ISO80079-34 standards. Our products are UL, VDE, EX, CE, EAC, and COC certified, and are RoHS and REACH compliant.

DEGSON supplies its products to companies operating in such fields as industrial automation, renewable energy sources, instruments, elevators, power plants, public transport, security, and the shipbuilding industry.

The DEGSON gland is made of the highest quality materials. The gland, made of Nylon PA66, is characterized by high strength, resistance to many oils, fats, and fuels, high ductility, and good resistance to abrasion.

The seal, made of oil-resistant NBR rubber, is characterized by very high tensile strength and thermal resistance up to 105°C. The glandhas been authorized by CE, EAC and complies with RoHS standards.

symbol | PG13.5

- seals the passage of cables through the housings of electrical devices

- ensures high resistance to breaking

for cable diameter | 7 - 12.5 mm

degree of protection | IP68

temperature Working Temperature | -40 to +100°C

Gland Material | Nylon PA66

Gasket Material | NBR oil-resistant rubber

CE, EAC, RoHS

part number | DDL-PG13.5P-10AH

H | 6 mm

SW3 | 27 mm
