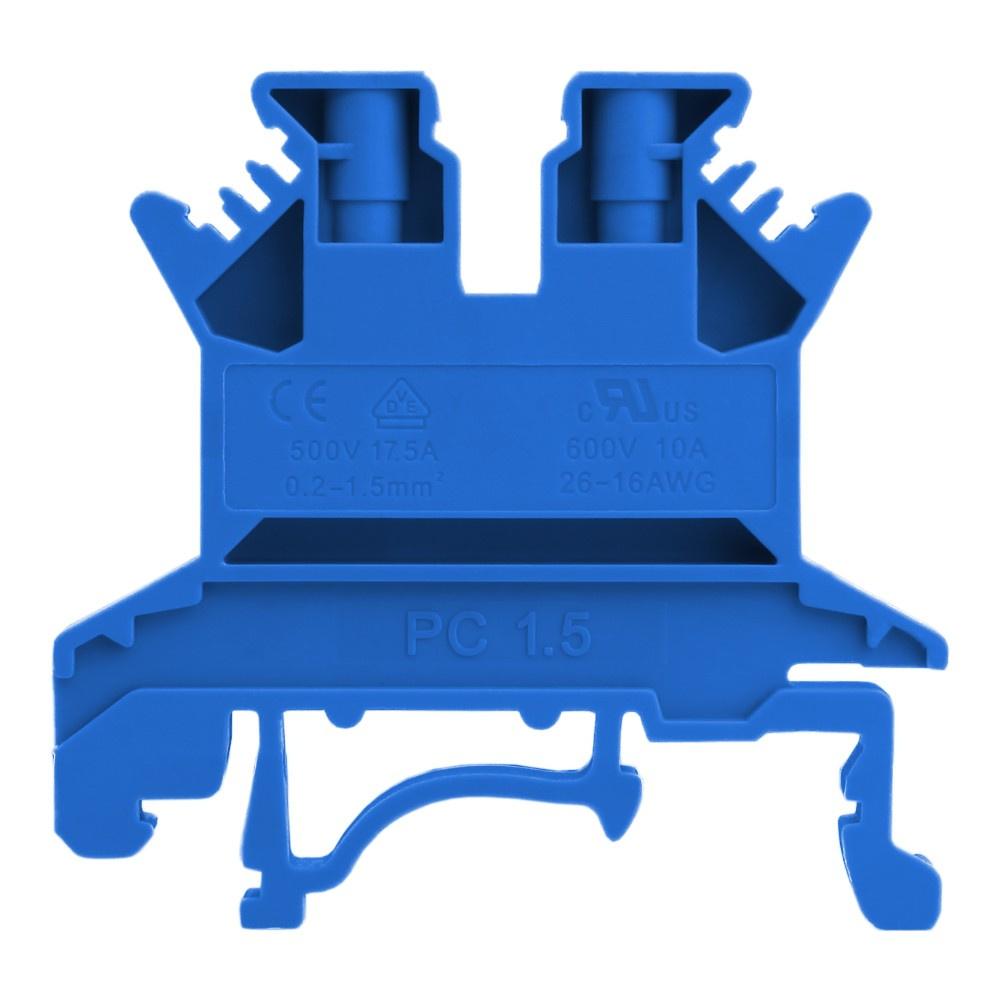

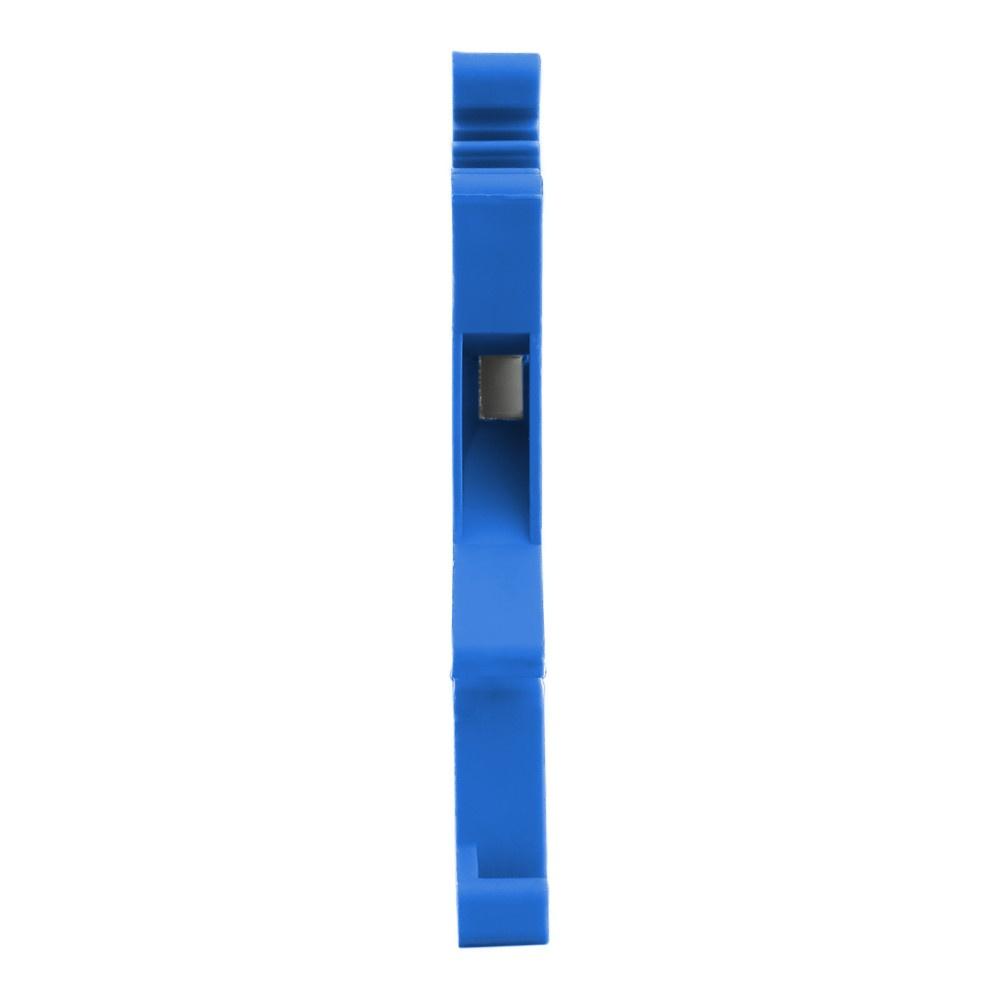

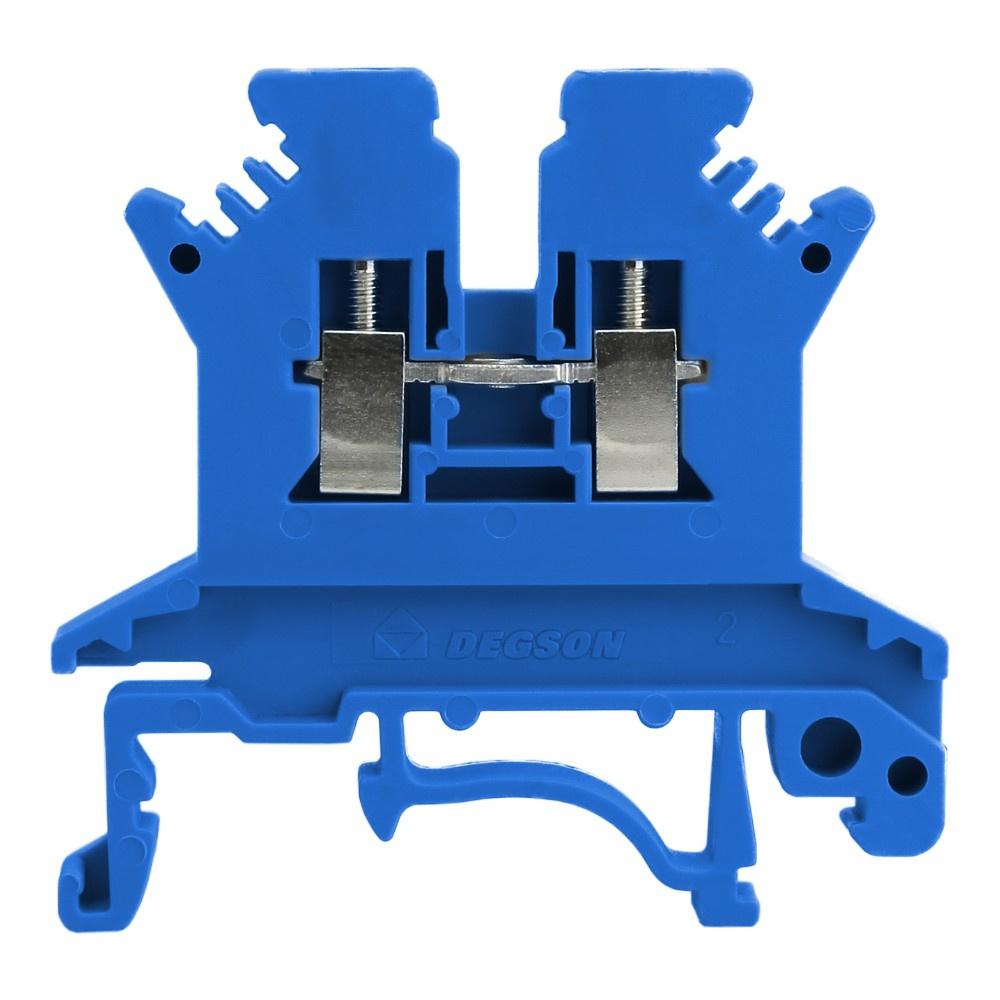

Blue Screw-Through Rail Connector 15mm2 1P Vde Ul 5699

Rail terminal block 1.5 mm2 PC1.5 blue

screw terminal, VDE & UL

An electrical installation consisting of multiple wires must ensure continuity of current flow in the circuit. Pass-through terminal blocks are mounted on a DIN TH/TS 35 rail and enable connecting and bridging wires.

The PC1.5 series of rail terminal blocks allows you to connect wires with cross-sections of 0.2 - 1.5 mm² (26 - 16 AWG) using screw terminals. The terminal housings are made of high-quality PA66 and UL94V-0 plastics.

All metal components in the terminal block are made of coated copper alloy. DEGSON rail terminal blocks have undergone numerous tests confirming their quality and durability. The terminal blocks have been awarded UL and VDE certificates.

➡️ Features of the PC1.5 rail terminal block:

✔️ screw terminals

✔️ rated voltage 500 V

✔️ rated current 17.5 A

✔️ wire cross-section 0.2 - 1.5 mm2 (26 - 16 AWG)

✔️ VDE certification (no. 40024711) and UL (no. E228872)

✔️ blue color

✔️ high-quality material

symbol | PC1.5-01P-11-00A(H)

type | rail connector

type | screw

color | gray

application | cable connection

nominal voltage | 500 V

nominal current | 17.5 A

for cables with a cross-section of | 0.2 - 1.5 mm2

certificates | UL, VDE, CE

testing standard | EN60947-7-1： UL1059

bleed | 4.2 mm

number of poles | 1P

Test data EN60947-7-1 | VDE certificate NO. 40024711

UL1059 test data | UL E228872

overvoltage category | III

degree of contamination | 3

material group | I

pulse voltage | 6 kV

material group | I

screw tightening torque | 0.2 Nm

material group | I

application in groups | B, C, D

nominal voltage for groups (B, C, D) | 600, 600, 600 V

nominal current for groups (B, C, D) | 10, 10, 5 A

rated connection capacity | 26 - 16 AWG

permissible continuous pressure | 0.8 kg

screw type | M2

flammability class UL94 | V-0

Permitted ambient temperature | -40~ +105

Relative humidity | 5% - 95%

inspection standard | MIL-STD-105E II

AQL | 0.65

Housing Material | PA66, UL94V-0

Screw Material | galvanized copper

connector material | nickel-plated copper

recommended stripping of insulation for the wire | 6 - 7 mm

Wire attachment | Strip the wire to the desired length, then tighten with the nominal torque.

Cable attachment | Strip the cable to the desired length, then put on the insulating tip and tighten it with the nominal torque

Accessories available | Side cover

(in our offer)

manufacturer | DEGSON

EAN code | 5907589335699
