Portable Construction Distribution Board 32A 16A 4X230V Without Protection Empty

Building distribution board TGD 32A/16A 4x230V without fuses Doktorvolt

Durable IP44 building distribution board with 4x230V and 2 CEE 400V sockets. Made of high-quality materials. Erbetka is equipped with a 12-module inspection window.

Multi-purpose sockets for full power control

The building distribution board is equipped with 230V sockets and power sockets. Simultaneous connection of several devices is ensured by the available four 230V sockets. The versatility of the erbetka is complemented by two CEE 400V 16A and 32A sockets.

Comfort of use combined with quality of workmanship

The switchboard has an inspection window that can accommodate 12 modules. Using the window makes it easier to work with the switchboard to expand the system. The whole thing is placed in a solid housing made of ABS/PC with dimensions 260x360x127mm.

The switchboard is UV-resistant and has a mechanical resistance of IK08.

Sockets and Electrical Data

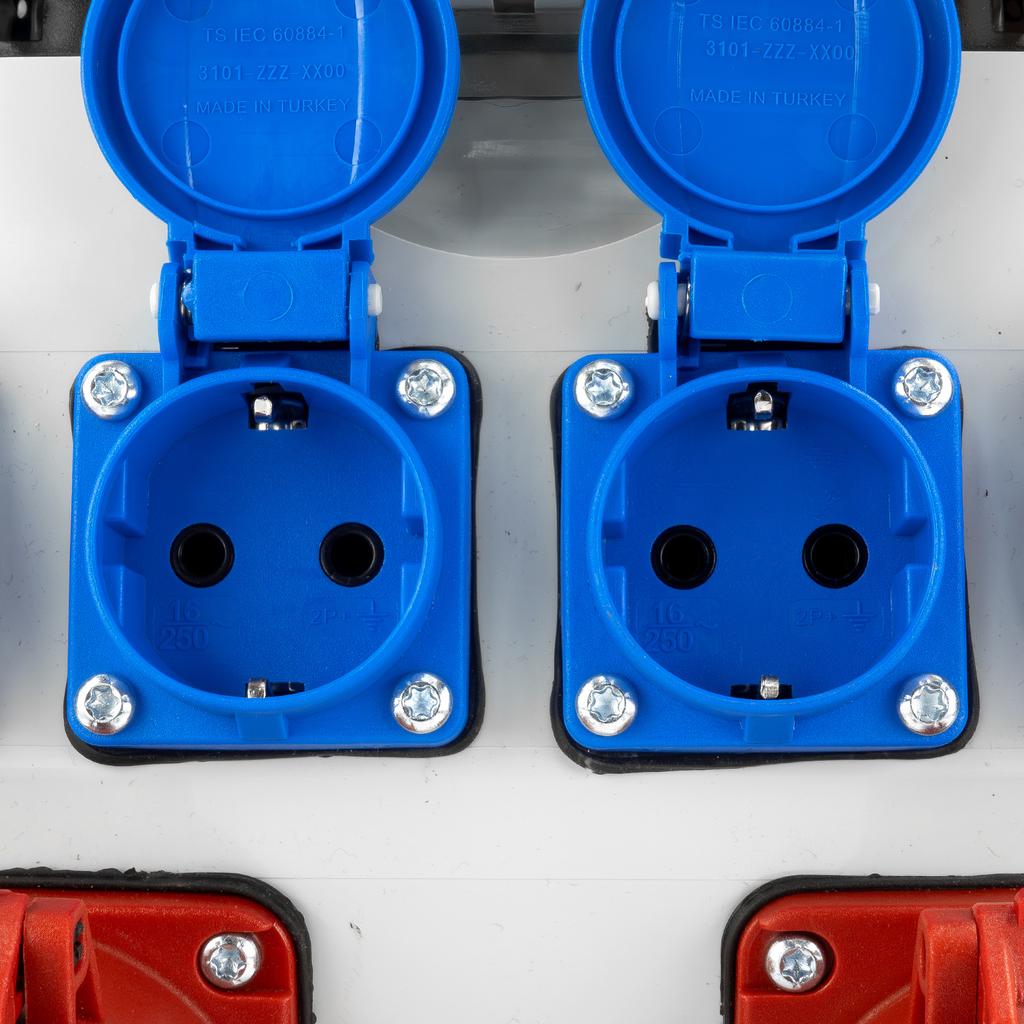

4x 230V 16A 1P+N+PE SCHUKO

1x CEE 400V 16A 3P+N+PE 6h

1x CEE 400V 32A 3P+N+PE 6h

Housing and Technical Data

Color of the front/rear housing plate: Gray/black

Wiring and Standards

Power cables Control cable H07V-K 2.5/4 mm² black

Neutral conductors Control cable H07V-K 2.5/4/6 mm2 blue

Protective conductors Control cable H07V-K 2.5/4 mm2 yellow-green

Halogen-free material (HALOGEN-FREE): Yes

Certificate = quality guarantee:

DOKTORVOLT brand products are routinely tested to ensure the highest product quality. After passing the tests, each product receives an individual certificate confirming the quality control carried out.

The company uses a certified TÜV SÜD system in the production process, which guarantees high quality.

IP Protection Rating = Greater Safety:

IP Protection Rating is an international standard that determines the degree to which an item is resistant to potential risk factors. It consists of two digits that inform us about the product's dust and water resistance.

Determining the IP rating allows you to consciously use the product in safe conditions. The protection ratingIP44 tells us that the device:

- is protected against penetration of objects larger than 1 mm

- is protected against water splashing from various directions

The Doktorvolt® company was founded in 2013. The dynamically developing company has conquered the Polish and foreign markets. The company's headquarters is located in Malichów in the Opole Voivodeship, where a modern production hall and warehouse are located.

The company specializes in the production of construction switchboards, distinguished by their quality and reliability. Each switchboard is constructed of high-quality components. The products meet the safety standards and norms applicable in the European Union.

Model: DV-6029-D EAN: 5905191016029 Product serial number: TGD Manufacturer: DOKTORVOLT Rated voltage: 230V/400V Rated frequency: 50 Hz Rated current: 80A RDF: 0.6 Housing dimensions: 260x360x127mm Housing material: ABS / PC Mechanical resistance: IK08 Number of modules: 12 Housing protection degree: IP65 Complete switchgear protection degree: IP44 Installation temperature: -25 +60 °C UV resistance: Yes Gland: PG16 Mounting pins: Yes, 4 pcs.
