Electrical Box With Transparent Door 200x300x130mm Switchboard Housing Ip65 Ik10 Tp Electric

Empty switchboard housing 200x300x130mm TP Electric

Surface-mounted electrical box by TP Electric designed for mounting modular equipment on a mounting plate. The integrated polyurethane foam seal provides protection against moisture and dust, and the included mounting plate simplifies installation, shortening assembly time and improving work comfort.

IP protection class is an international standard informing the user about the resistance of an item to potential threats. Products with IP protection guarantee trouble-free operation of the device in less controlled conditions and user safety.

The IP65 protection rating means protection against dust ingress and protection against water jets from any direction.

Internal dimensions (mm):

• depth: 100

• height: 260

• width: 150

Materials and design

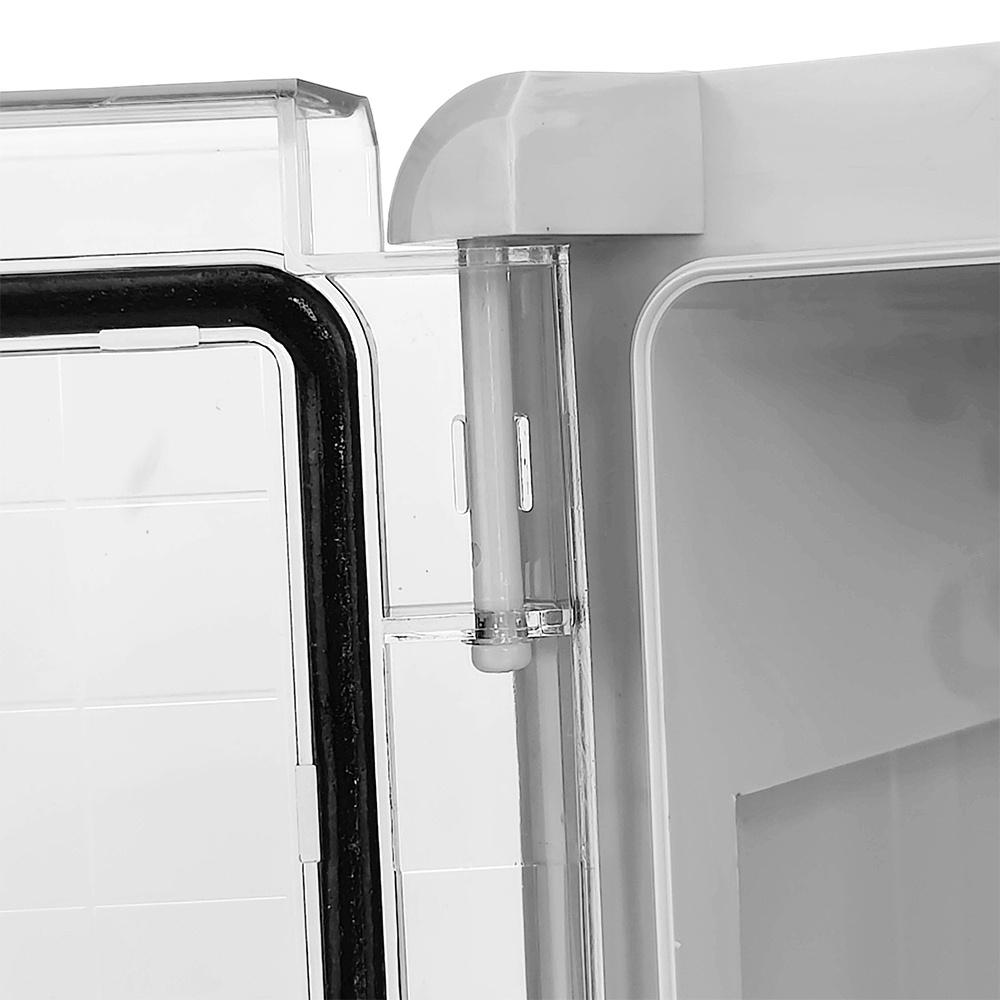

The switchboard is made ofhigh-quality ABS and polycarbonate, and its RAL 7035 (light gray) color fits into modern visual standards. Additionally,the ability to open the enclosure door up to 180° facilitates access to the interior and comfortable use.

The IK10 impact resistance rating means protection against strong impacts, making the case ideal fordemanding environments.

Protection Class: IP65 Mounting: surface-mounted Impact Resistance: IK10 Material: ABS Color: RAL 7035 Cover Opening Angle: 180° Operating temperature range: -40°C / +70°C Polyurethane foam seal: Yes Mounting plate: Yes
