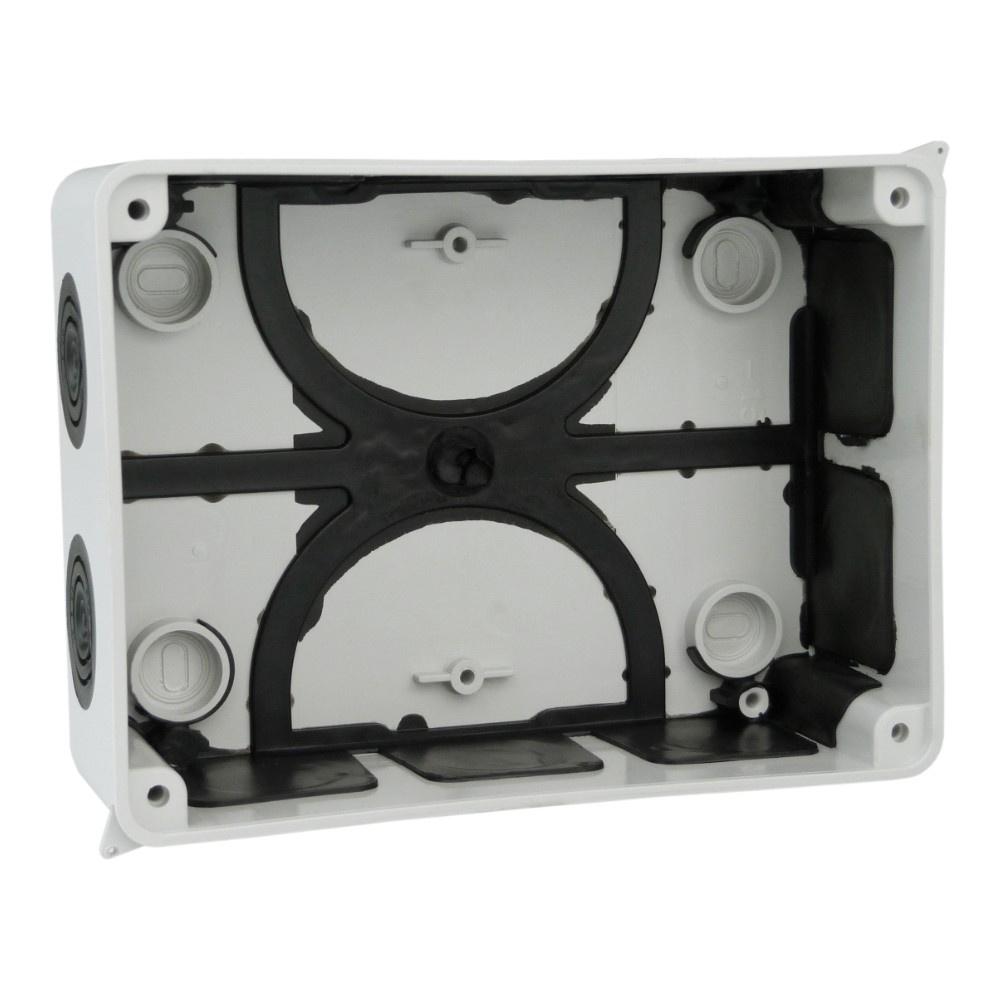

Surface-mounted box with glands 150x110x70 , hermetic IP66 with membranes

Junction box 150x110x70 mm surface-mounted 10 flexible side membranes 008.PG Marlanvil

✔️The junction boxes are characterized by a high degree of tightness - IP54. Halogen-free material reduces the risk of emission of harmful substances in the event of a fire. 008.PG installation boxes are dedicated to surface mounting.

The external dimensions with the cover are 158x118x80 mm, while the internal dimensions of the box are 150x110x70 mm.

Application | ​​

for rooms and sheltered outdoor installations

Mounting method |

type of housing passage |

elastic sealing membrane

number of elastic side membranes (grooves) |

maximum sealing range 10 flexible side membranes

3x Ø29 mm

3x Ø29 mm

2x Ø29 mm

2x Ø29 mm

gray RAL 7035

membrane material flexible (inlets)

steel self-tapping screws stainless

internal:

A: 150mm

B: 110mm

C: 70mm

external:

A: 158mm

B: 118mm

C: 80mm

base height: 50mm

cover height: 21mm

Protection class |

Black seals Isolating |

Input diaphragms of different diameters between PG9 and PG21 |

resistant to chemicals and sediments |

high degree of protection against mechanical impacts
