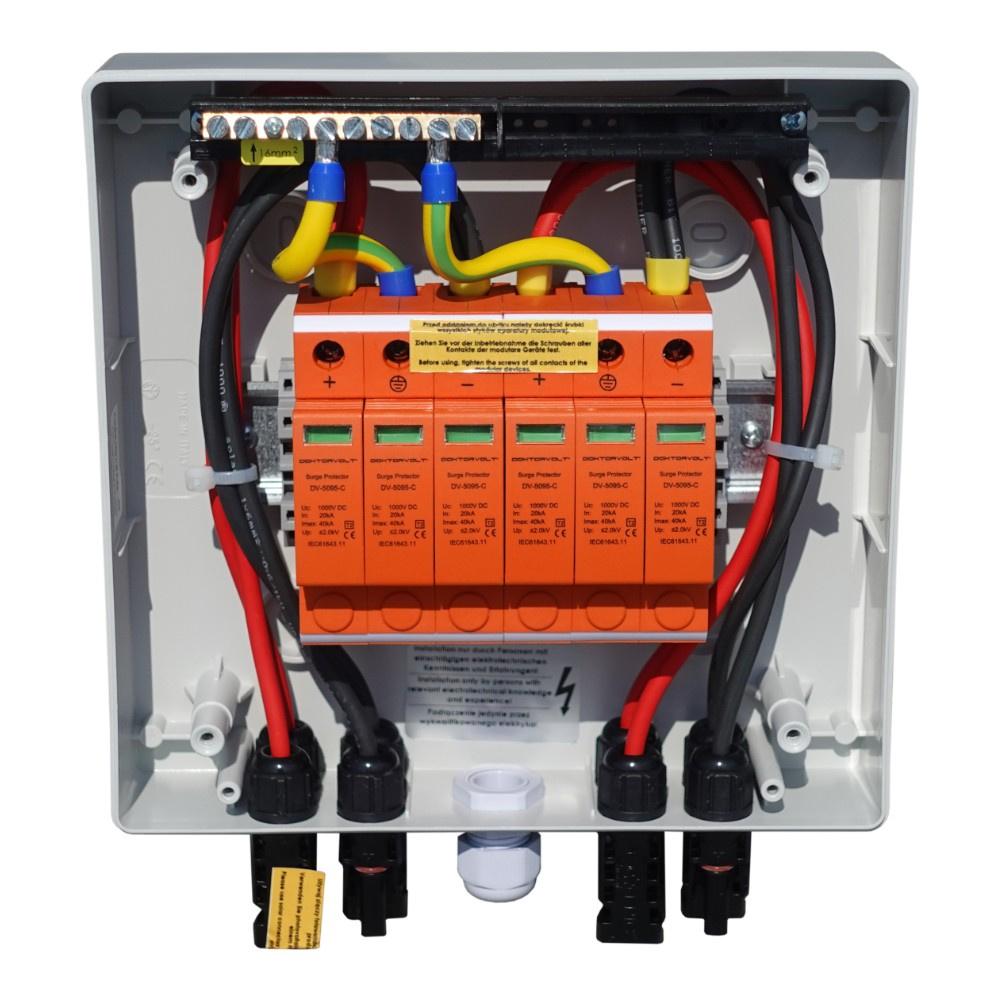

Photovoltaic distribution board DC 1000V T2 IP65 2-string 2x DC 1000V limiter
Additional set of solar connectors
➡️Photovoltaic distribution board by Doktorvolt:
✔️ is equipped with high-quality components in the field of current protection,
✔️ for DC surge protection, two surge arresters from the renowned Doktorvolt brand were used, which are characterized by high operating efficiency and T2 protection class,
✔️ the switchgear has an IP65 protection degree, which ensures its hermeticity and waterproofness.
➡️ Doktorvolt® has implemented a management system certified by TÜV SÜD in the production process of switchgear:
✔️ high quality guarantee,
✔️ transparent information flow,
✔️ security guarantee,
✔️ good customer service provided.
WARNING! A very common cause of fires in PV installations is the use of solar connectors from different manufacturers. Connectors from different sources have different parameters - poor matching leads to the generation of resistance, which in turn causes a temperature increase that can result in a fire in the installation.
In Europe, the IEC 62548 and IEC 60364-7-712:2017 standards do not allow connecting DC connectors from different manufacturers. The use of connectors and components from companies other than those factory recommended by Doktorvolt® is prohibited.
➡️Doktorvolt specializes in the production of high-quality construction distribution boxes with sockets, photovoltaic distribution boxes, and extension cords. Their quality, attention to detail, and comprehensive customer service distinguish them on the market.
Doktorvolt products are manufactured from proven components from European suppliers.
Number of modules |
number of rows |
assembly | surface-mounted
degree of protection of the switchgear | IP65
Rated housing voltage | 1000V
Housing dimensions | 215 x 210 x 100 mm
Housing dimensions with PG glands and connectors | 215 x 240 x 100 mm
Housing material | Technopolymer
Material door | polycarbonate
color housing |
gray RAL 7035
Screw material | Stainless steel
Gasket material | EPDM rubber
PG cable glands and M F 4 connectors |
(additionally a set of connection connectors included)
certificates and standards |
DC Site Protection
DC surge arrester | 2x 1000V DC T2
maximum operating voltage Uc | 1000V DC
maximum operating current In
maximum operating current Imax | 40kA
voltage protection level | Up < 2.0kV
number of DC circuits (strings) | 2
certificates | CE
Cables used |
Solar cable 1x6mm2 0.6/1kV BiT 1000 (black)
Solar cable 1x6mm2 0.6/1kV BiT 1000 (red)
solar connectors |
(additional set included with the distribution board)
operating voltage |
1000 V DC
Impulse voltage |
Protection class |
manufacturer | Doktorvolt
manufacturer's certificates and standards |
ISO 9001:2015
manufacturer's marking | DV-9474-FOT-258-DC
EAN | 5903260279474
