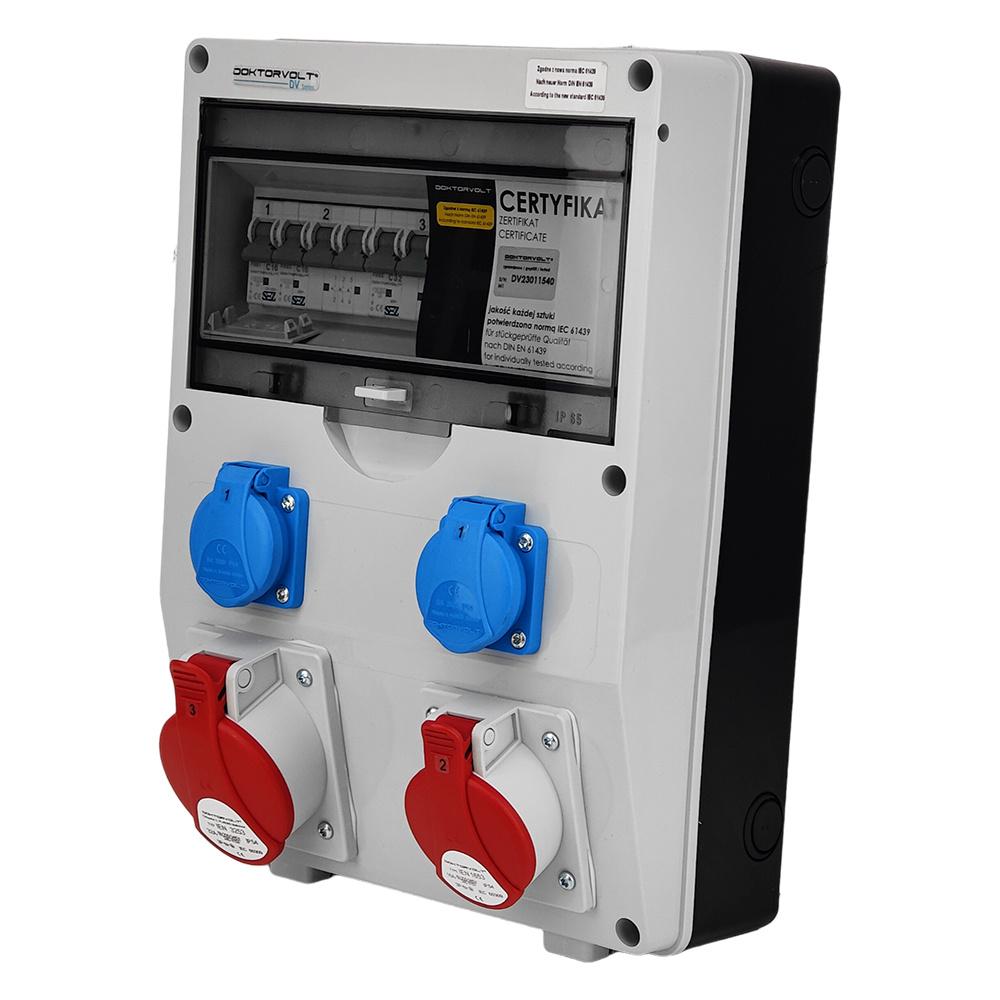

Erbetka Construction Distribution Board 32A 16A 2X230V Ip54 Schuko Sockets

Building distribution board DV-S/FI 32A 16A 2x230V IP54, Doktorvolt®

German Schuko socket system

➡️ Electrical distribution board DV-S/FI 32A 16A 2x230V Doktorvolt®, advantages:

✔️ Compact and tight housing made of the best quality materials,

✔️ equipped with two sockets 2x 230 V 16 A and power sockets 1x 32A and 1x 16A,

✔️ wiring and sockets from renowned manufacturers of electrical equipment,

​​✔️ tightness class IP 54 sockets,

✔️ ready for connection,

✔️ protection against indirect contact,

✔️ overcurrent protection of sockets.

➡️ Electrical distribution board DV-S/FI 32A 16A 2x230V Doktorvolt®, application:

✔️ On construction sites and areas and during road works,

✔️ for industrial plants,

✔️ in workshops and garages where it is necessary to connect devices to a power socket,

✔️ during independent house construction,

✔️ to supply electricity to green areas and mass outdoor events.

➡️ The presented construction distribution board is equipped with:

✔️ two sockets 2x 230V 16A with IP 54 protection class,

✔️ differential circuit breaker 40A 4P 30mA,

✔️ overcurrent protection for 230 V sockets, 1x C16A 1P 10kA,

✔️ overcurrent protection for power sockets, 1x C16A 3P 10kA, 1x C32A 3P 10kA,

➡️ Doktorvolt® has implemented a management system certified by TÜV SÜD in the production of switchboards:

✔️ high quality guarantee,

✔️ transparent flow of information,

✔️ safety guarantee,

✔️ Good customer service provided.

• Socket Manufacturer: Doktorvolt®

• Power Sockets:

• 1 x Angled board socket 32A 5P IP54 Doktorvolt

• 1 x Angled board socket 16A 5P IP54 Doktorvolt

• Protected with SEZ circuit breakers:

• 1 x C16A 10kA 3P 0099249 SEZ VDE

• 1 x C32A 10kA 3P 0099252 SEZ VDE

• Number of 230V sockets 16A:

• 2 x panel socket 230V 16A IP54 Schuko Doktorvolt system (German system Type F)

• Protected by circuit breaker:

• 1 x C16A 10kA 1P 0099209 SEZ VDE

• Protection against indirect contact:

• SEZ 40A 30mA 4P Type A differential circuit breaker 0090684 SEZ

• Connection bus: 3-phase 10 modules 12mm²

• Rated voltage: 230/400V AC 50Hz

• Rated current: 40A

• Protection class: IP54

• Icc: ≤ 10kA

• RDF: 0.8

• Housing dimensions: 365x260x125mm

• Standards and approvals: IEC 61439-3

• Manufacturer: Doktorvolt

• Manufacturer's code: DV-1776-D

• EAN: 5907589331776
