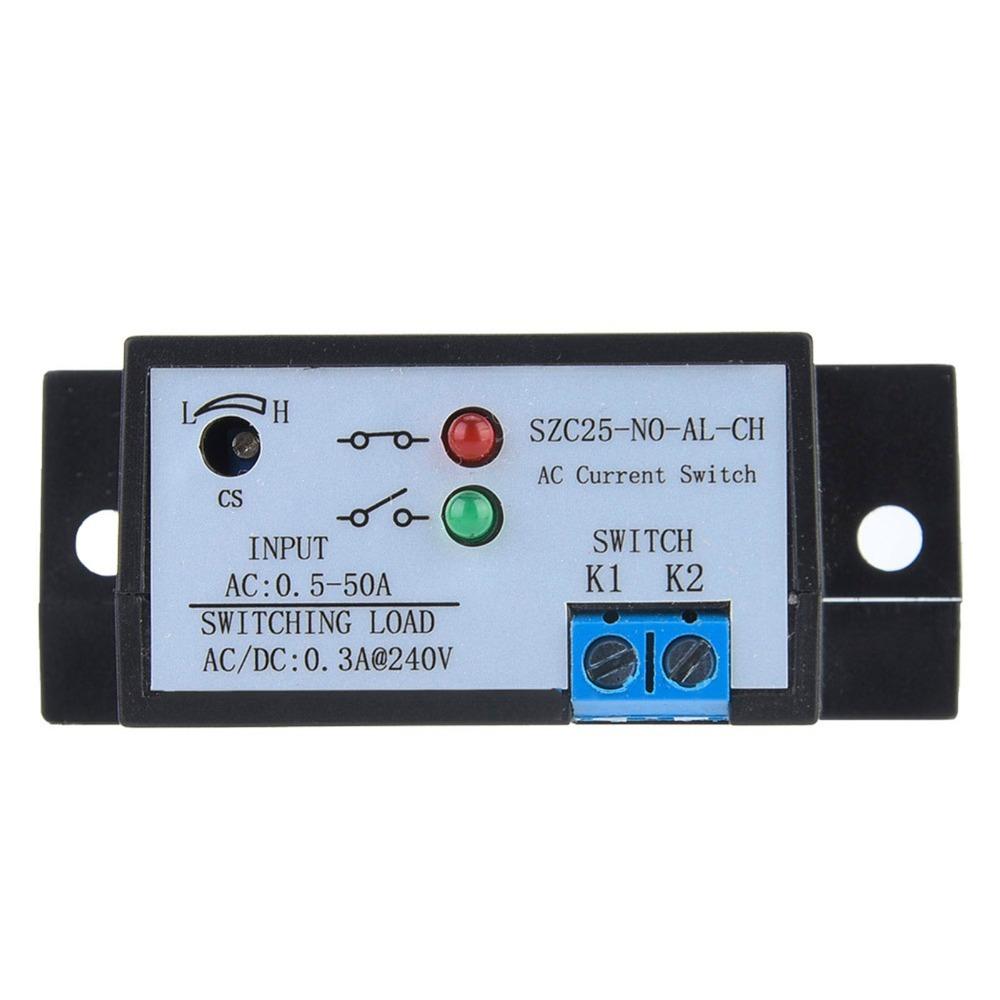

SZC25-NO-AL-CH SZC25-NO AL-CH Current Sensing Switch AC Current Sensing Switch Electrical Systems

Label:Yes It uses the principle of mutual inductance to sense the AC current through the AC, isolate the AC current, and output a normally closed switching signal to directly control various automated chemical equipment. Widely used in substation, frequency conversion speed control device, inverter device, electrolytic plating, electric locomotive, street lamp monitoring, coal mine and other automation industries requiring current monitoring. This AC current sensing switch is designed and manufactured to solve the AC current monitoring. High precision, more stable and long service life. It is an ideal choice for automated industrial equipment and store monitoring.

Specification: Model: SZC25-NO-AL-CH Housing Material: ABS Self-Extinguishing Material External Power Supply: No Need, Product Self-Inductive Power Supply Switch Type: Normally Open Input Through Current: AC 0.5-50A Threshold Point Range: 0.5-50A AC Adjustable Switch Rated Load: AC/DC 0.3A at 240VAC  Maximum Leakage Current: <0.1A Response Time: <200ms Hole Diameter: 10mm Product Size: Approx. 65 * 26 * 47mm / 2.6 * 1.0 * 1.9in Color: Black

Package List: 1 * Current Sensing Switch
