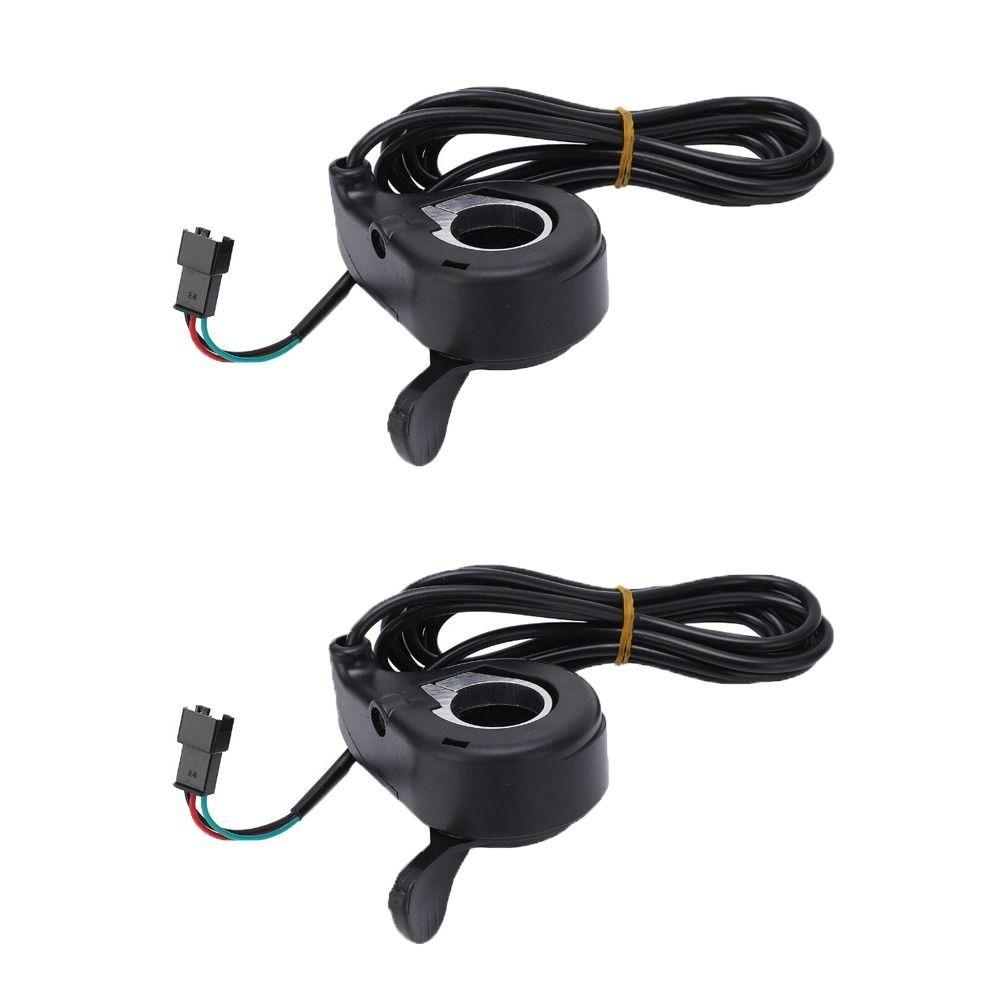

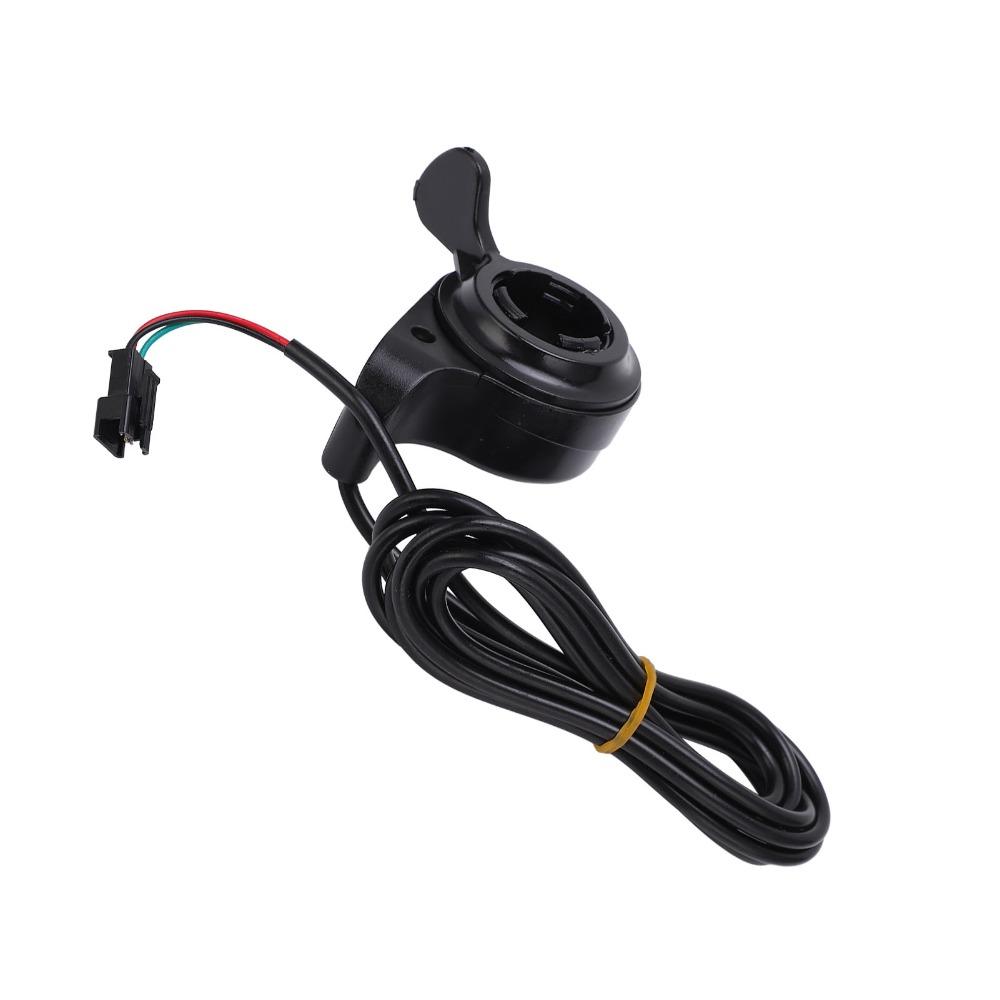

2pcs Inner 22mm Thumb Throttle 12V-72V Electric Vehicle Handlebars Finger Throttle Electric Bike

Label:Yes Widely Use: Has a wide application, regardless of battey types, sealed or lithium battery, water battery or dry battery. Warm Prompt: Please wiring while checking controller function line, do not simply connect controller wires by colors, the wrong connection will cause damage to the controller or handle. Cable Function Description: Green line is made for the handle hall signal line, the red line connects to the positive 5V line of the handle, and the black line is for the negative pole. High Compatibility: Regardless of electrocar model, can be directly used for 12V, 24V, 36V, 48V, 60V, 72V electric vehicles, part of 84v electric vehicles can also applicable. Plastic Material: Made of premium plastic material, which is anti impact, durable and sturdy.

Item Type: Thumb Throttle Speed Control Material: Plastic Model :S Series (5V-99V Automatic Identification Of Electric Vehicle Voltage) Application: For Electric Bike, Electric Scooter Product Size: Wire length: Approx.180cm(70.87in) Suitable Handlebar Diameter: Approx.2.2cm(0.87in) Weight: Approx.120g Efficiency: ≥98% Hall Scale: Linear Hall Working Voltage: Twist Grip DC0.8V-4.2V

Basic Parameters :(According To Different Battery Materials, Different Batches, The Voltage Values Will Be Different, Please Test A Few Times To Get Your Own Electric Vehicle Battery Parameters,) For 12V Electric Bike, Maximum Voltage Is About 12.6V, Minimum Is About 9V Or Above, For 24V Electric Bike, Maximum Voltage Is About 29.4V, Minimum Is About 21V Or Above, For 36V Electric Bike, Maximum Voltage Is About 42V, Minimum Is About 29V Or Above, For 48V Electric Bike, Maximum Voltage Is About 54.6V/58.8V, Minimum Is About 40V Or Above, For 60V Electric Bike, Maximum Voltage Is About 72V, Minimum Is About 49V Or Above, For 72V Electric Bike, Maximum Voltage Is About 84V, Minimum Is About 60V. For Other Electric Bikes With Above Voltage, A Voltmeter Should Be Installed.

Package List:2 x Thumb Throttle Speed Control

Notes: 1.Please pay attention to the wiring sequence when non professional personnel install, do not connect the wrong line, otherwise it is easy to cause hall burn. 2.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 3. Please allow slight manual measurement deviation for the data.
