Description:

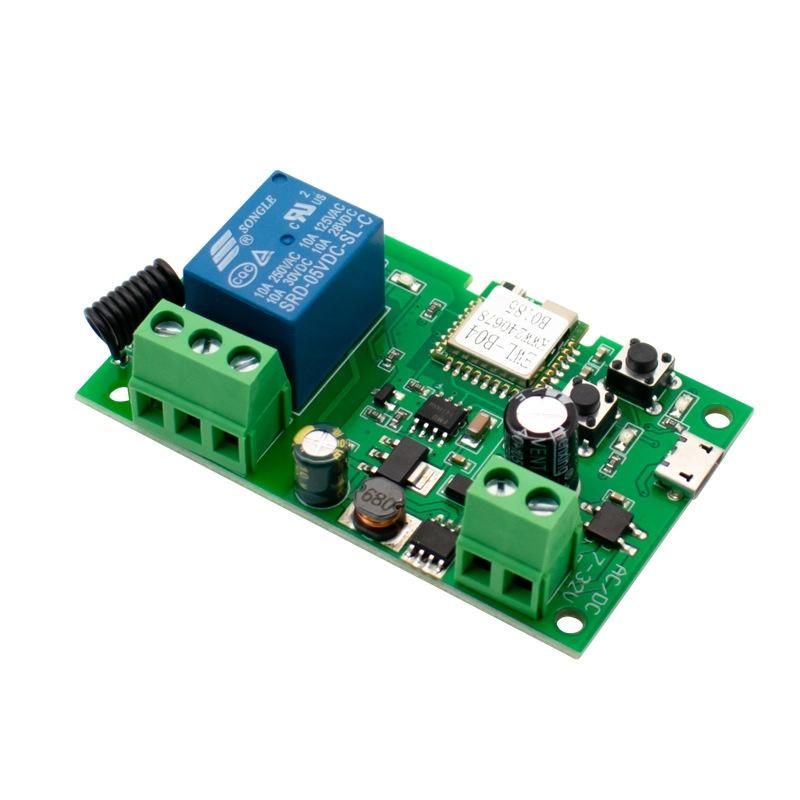

Single-Channel WiFi & Bluetooth Relay Control Module (DC 7-32V Pro Version) – the all-in-one smart control solution that supports both remote mobile app operation and local manual control, ideal for smart access control, door lock systems, garage doors, and all kinds of IoT automation projects.
Features:
1. Dual Wireless Connectivity: Equipped with a high-sensitivity WiFi+Bluetooth dual-mode chip and 2.4G signal antenna, it supports both long-distance WiFi remote control when you’re out and short-range Bluetooth local control when you’re nearby, so you can manage connected devices anytime anywhere without extra on-site operation.
2. Wide Voltage Compatibility: Its optimized wide-voltage input circuit is fitted with high-capacity filter capacitors, supporting DC 7V to 32V power input that matches most common power supply systems on the market. No extra voltage converter accessories are needed for installation, saving you extra cost and trouble.
3. Reliable Load Performance: Fitted with premium SONGLE SRD series 10A relay, it supports up to 10A resistive load switching, with superior anti-interference performance and extended service life. It guarantees stable on-off control for your connected devices and cuts long-term maintenance costs.
4. Sturdy Board Build: Made of flame-retardant FR-4 fiberglass PCB with thick copper cladding process, it boasts excellent heat dissipation, corrosion resistance and anti-aging properties, working reliably across various working environments to prolong the module’s overall lifespan.
5. User-Friendly Operation Options: It supports pairing with the eWeLink app, plus comes with an on-board physical silicone control button, and supports both inching and self-locking working modes. You can operate it via your phone or press the physical button for debugging, no complicated programming required – even beginners can finish setup in minutes.
Specifications:
Type: Smart IoT Relay Control Module
Materials: FR-4 fiberglass printed circuit board, copper wiring terminals, premium electronic components (10A relay, dual-mode wireless chip, filter capacitor, silicone button)
Dimensions: Approx. 60 x 40 x 18 mm (compact size fits embedded installation perfectly)
Appearance: Green PCB, blue relay, black and silver electronic components
Application Scenarios: Access control systems, smart door locks, garage door control, remote home appliance on/off control, lighting control, industrial equipment remote management
Package Content: 1 x Relay Control Module
Notes:
1. Please allow minor size error due to manual measurement, thanks for your understanding.
2. Actual color may slightly differ from the image due to different monitor displays.
