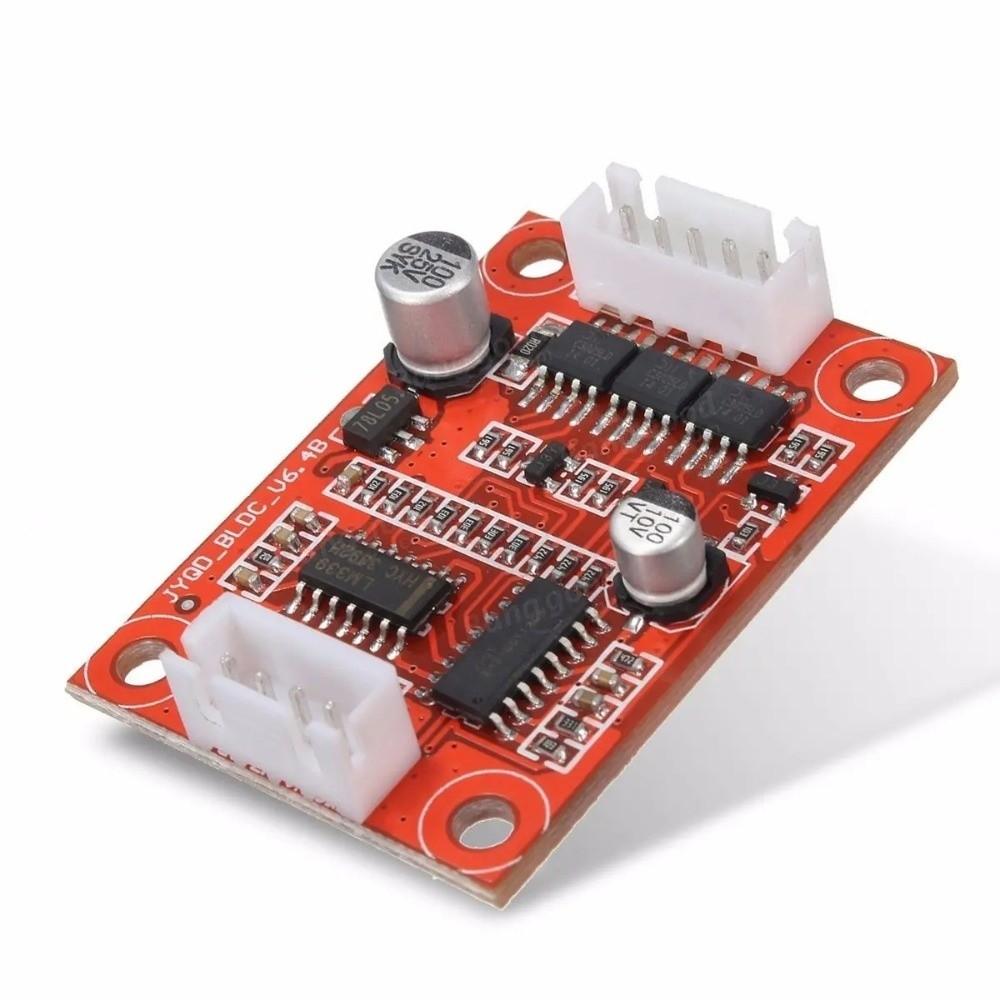

30W Power Motor Driver Board DC 7.5V-18V Speed Controller Board Motor Speed Control

Label:Yes With a potentiometer to adjust the speed of the motor. The controller board can also control the rotation direction of the motor. The board can control the motor speed during 5~100%. With over current protection and reverse connection protection. The controller is integrates with soft rectifier function.

Item Type:Motor Driver Board Working voltage: DC7.5V-18V Working current: ≤ 3A Speed voltage: 0.25V-5V Speed range: 5%-100% Drive power: 30W Color: Multicolor Material: PCB Size: Approx. 45 x 32 x 11mm(1.77 x 1.26 x 0.43in) Wiring instructions: 1. Control terminal: 5V: Driver board output voltage, external speed potentiometer when used (empty when not in use) ZF: Motor rotation direction control terminal, grounding or 5V can change the direction of the motor (can be left, the steering is fixed) VR: speed signal input, voltage 0.25V-5V (when the voltage of the motor is less than 0.25V the motor does not rotate) GND: shared control terminal 2, the output: Power +: Connect the positive pole of the power supply, the voltage is 7.5volts 18V --- Power - : Power ground, then power negative MA / U: Turn off every three wires of the motor MB / V: every three lines of the motor MC / W: every three lines of the motor

Package List: 1 x Brushless Motor Driver Board 1 x Speed Adjuster + Positive and Negative Switch 1 x 5Pin Output Control Cable(Random Color)

Note: In order to drive the motor better and more efficiently, we have divided it into 2 specifications.(Can be programmed) 1, 12V ordinary, working voltage range 7.5V---18V, the highest speed 3000 rpm 2, 12V high speed, working voltage range 7.5V---18V, the highest speed reaches 50,000 rpm
