CK-DT-A Mini 68mm IR Temp Sensor Probe 0‑10V/0‑5V/4‑20mA RS485 0‑600℃ Industrial Non-contact Temp Transmitter 2

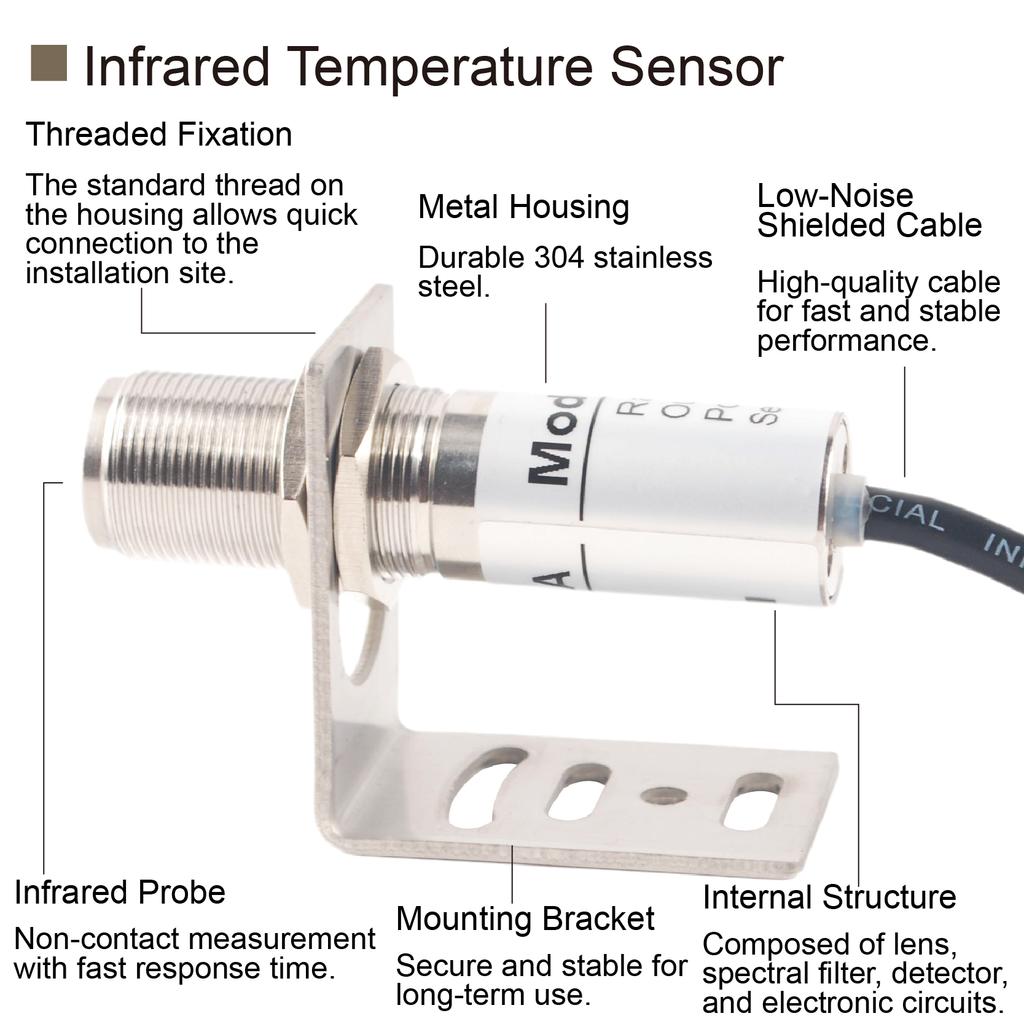

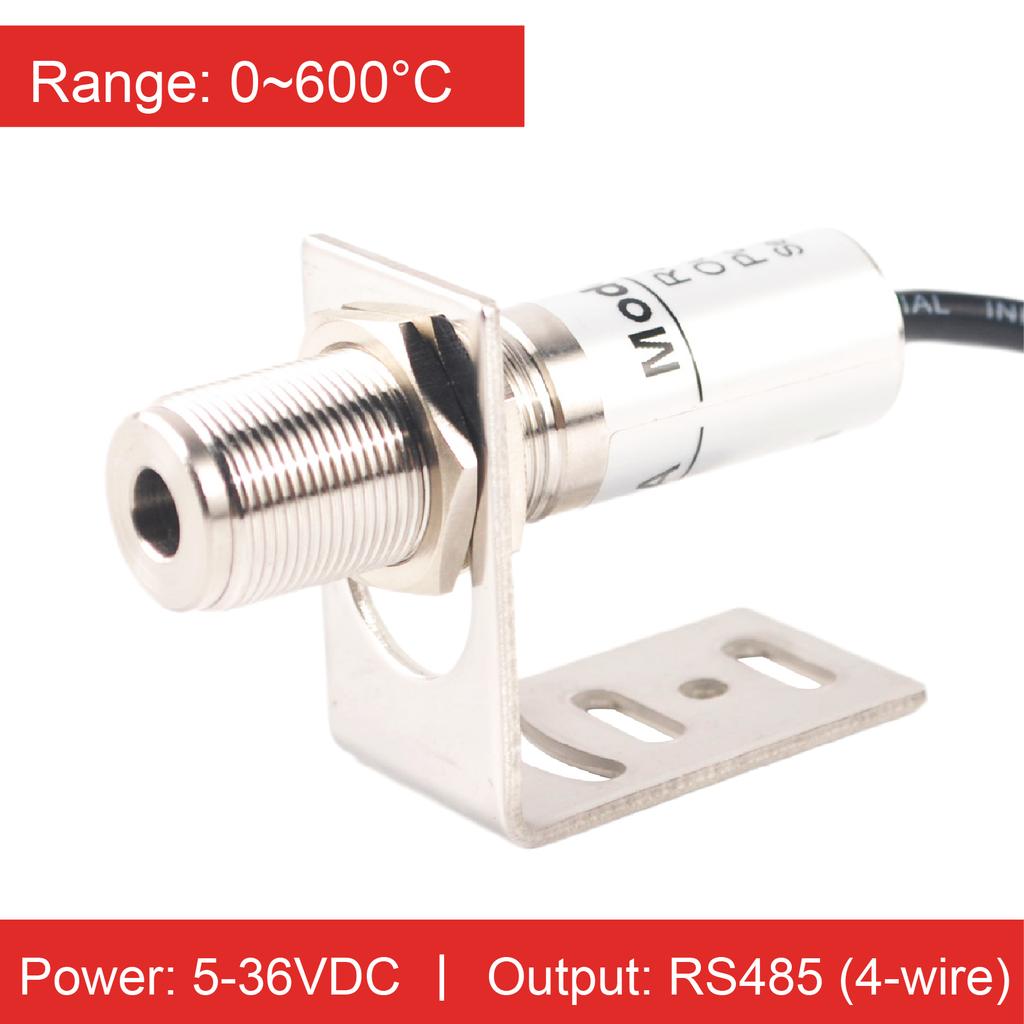

Product Description Important Note This infrared temperature sensor is designed to measure non-metal surfaces only. To measure metallic surfaces, apply high-temperature tape or paint to create a suitable target area. Target Requirements: The target surface must be larger than 10mm in diameter and either stationary or moving slowly. Not recommended for fast-moving objects. <hr/>Default Configuration Power Supply: DC 24V Temperature Range Options: 0–100°C, 0–200°C, 0–300°C, 0–500°C, 0–600°C Signal Output: 4–20mA, two-wire system Thread Connection: M18×1 (Thread length: 32mm) Product Length: 68mm Housing Material: 304 Stainless Steel Cable Length: 1.5 meters (standard) Protection Level: IP65 <hr/>Customizable Options Temperature Range: -30~1300°C (Selectable: -20~100 /-20~200 /-20~300 /-20~500 /-20~600 /0~800 /0~1000°C) Power Supply Voltage: Customizable (12–36VDC, 5–36VDC) For 5V power supply, please contact customer service and leave a note when ordering. Signal Output Options: 0–5V, 0–10V, RS485 Cable Length: Customizable (e.g., 5m, 10m, etc.) <hr/>Optional Accessories (sold separately) Intelligent display units Control instruments Wind-cooling shields Large-screen displays Mounting brackets (adjustable and 3D) Laser aimers (single or dual) Audio-visual alarms Please confirm your desired temperature range and output signal before placing an order. For any customization needs, contact our support team. <hr style="text-align: center;width: 100.0%;" width="100%" align="center"/> 5.FAQs Q1:What is the response time of this infrared sensor? A1:The standard response time is 200ms, but it can be customized to 50ms if needed.

Q2:Is the cable length customizable? A2:Yes, the standard cable length is 1.5m, but it can be customized based on your requirements.

Q3:Can I customize the signal output type? A3:Yes,signal output types (4-20mA, 0-5V, 0-10V, RS485) can be customized to meet your specific requirements.
