REX-C900 Digital PID Temperature Controller Universal Input 4-20mA Output Solid State Relay Industrial Thermostat 2

1.NOTE This controller does not measure temperature directly — it reads external sensor inputs. The universal input version supports up to 1200°C, while the default K-type input supports up to 999°C.

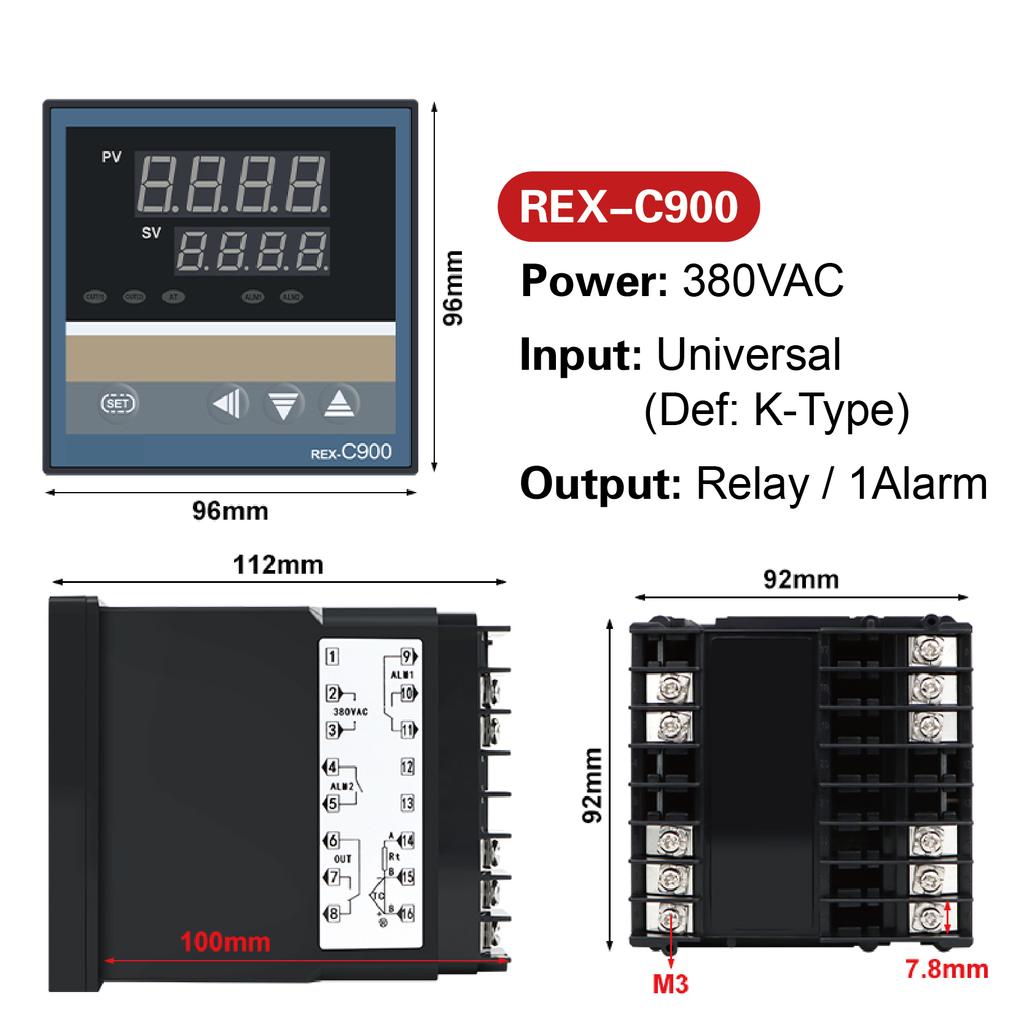

Due to page limitations, some specifications may not be fully detailed. Please contact us for any specific requirements. The default configuration for the REX-C900 includes: · Panel size: 96x96mm · Mounting cutout: 92x92mm · Embedded depth: 100mm · Total product length: 112mm · Power: 100-240VAC, 380VAC · Weight: 0.315kg The device features a high-quality copper transformer for stable power supply and supports multiple input modes, including K, E, and PT100. Optional configurations include relay or SSR output modes. Customization is available upon request. Additional sizes available: · 45x45mm · 92x45mm · 68x68mm <hr style="text-align: center;width: 100.0%;" width="100%" align="center"/>2.Parameters <hr style="text-align: center;width: 100.0%;" width="100%" align="center"/>3.Features Clear Display High-quality LED display offers excellent visibility and an intuitive user interface.

Stable Power Supply Copper transformer ensures consistent power delivery, enhancing stability and extending device lifespan.

Versatile Applications Compatible with various equipment such as injection molding machines, ovens, and dryers. <hr style="text-align: center;width: 100.0%;" width="100%" align="center"/>4.Applications Widely used in industrial processes requiring precise temperature control, including manufacturing, baking, and drying. <hr style="text-align: center;width: 100.0%;" width="100%" align="center"/>5.FAQs Can this controller handle temperatures up to 1200°C? Answer: Yes, it supports a range of 0–1200°C with high precision.

Is it compatible with PT100 sensors? Answer: Yes, it supports K, E, and PT100 input options.

What is the installation requirement? Answer: Ensure a clean environment with a pollution degree of 2 and use the specified panel dimensions.

Hazmat: None deliveryOptionStandard: Yes name: REX-C900 Digital PID Temperature Controller Universal Input 4-20mA Output Solid State Relay Industrial Thermostat 2 source: asc brand: No Brand preorder: No
