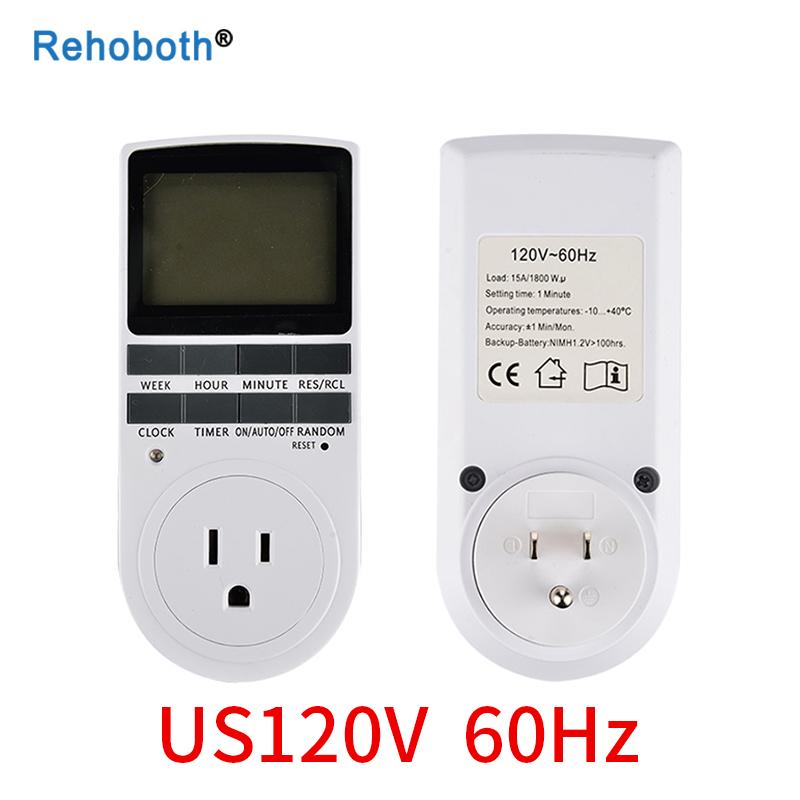

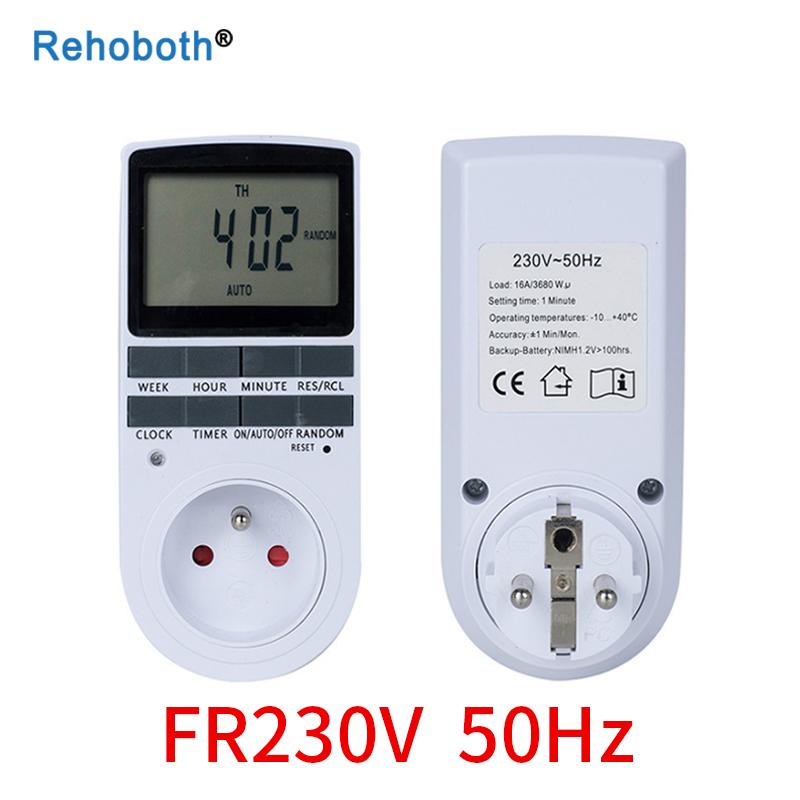

7 Days Programmable Timer Socket Outlet 110V-230V Dual Voltage with US/EU/UK/AU Plug Digital Display for Home Appliance3

EU Electronic Digital Timer Switch US FR BR Plug Kitchen Timer Socket Outlet 230V 110V 7 Day 12/24 Hour Programmable Timing

Please check your local plug standard before ordering, and make sure that the plug you buy is suitable for your country. The diagram below is for reference only, failure to select the appropriate local socket will result in failure to use, please check the type of socket you need.

Note: When the package is received, if the timer screen is not displayed and the internal battery is exhausted, please plug in the power and press the “Reset” button to restore the item to normal and charge. If you have any questions, please contact customer service first. Electronic Digital Timer Switch 24 Hour Cyclic EU UK AU US BR FR Plug Kitchen Timer Outlet Programmable Timing Socket 220V

Specifications:

Product Name: Timer

Number of programs: 10 groups setting

Hull material: PC

Operating temperature: -10-40 ℃

Min in the timer setting: 1 Minute

Accuracy: +/- 1 Min /Mon

Type:EU(230V 50Hz)

FR(230V 50Hz)

UK(230V 50Hz)

AU(240V 50Hz)

US(120V 60Hz)

BR(220-250V 50Hz)(100-120V 60Hz)

If you need AC110V 60Hz Plug , Please contact with Customer Service

Note:

1.When in setting interface, it will back to local time in 20 seconds without any operation 2 Be sure to Press the "RES/REC button in setting interface to reset or recall data

TIME SETTING CURRENT

1. Press and hold the “clock” button and press the “week” button until the actual day is displayed, then pressing the “ hour “or “minute” and “Clock” button until the current time or MINUTE is displayed. When setting, the week, hour or minute buttons can be selected for quick counting

2. Release both buttons, the week and time will be set.

3. To reset the incorrect time,reset it and then repeat the previous steps.

Setting programs

1. Press the timer button and release. 1on Will display on the screen.

2. Press the week button to set the day or blocks of days, set the time by pressing the hour button, then the minute button.

3. Press the " timer" button again to complete the first setting .1 off will display on the screen.

4. Press the week button to set the day or blocks of days, set the time by pressing the hour button, then the minute button. 1 group of setting finish .

5.Repeat 2 ,3 and 4 to program the other setting.

6. After finishing the settings, press the clock button and the timer is ready to operate

Description:

Dimension(approx.):13cm x 5.8cm x 4.5cm/5.12" x 2.28" x 1.77 Large LCD Display LCD size(approx.):34*49mm
