AC 110V 220V DC 12V 24V 1.37 Inch Programmable Digital Timer Switch Relay Control 10A 20A Time Controller Delay Relay Module DIY3

AC 110V 220V DC 12V 24V 1.37 Inch Programmable Digital Timer Switch Relay Control 10A 20A Time Controller Delay Relay Module DIY

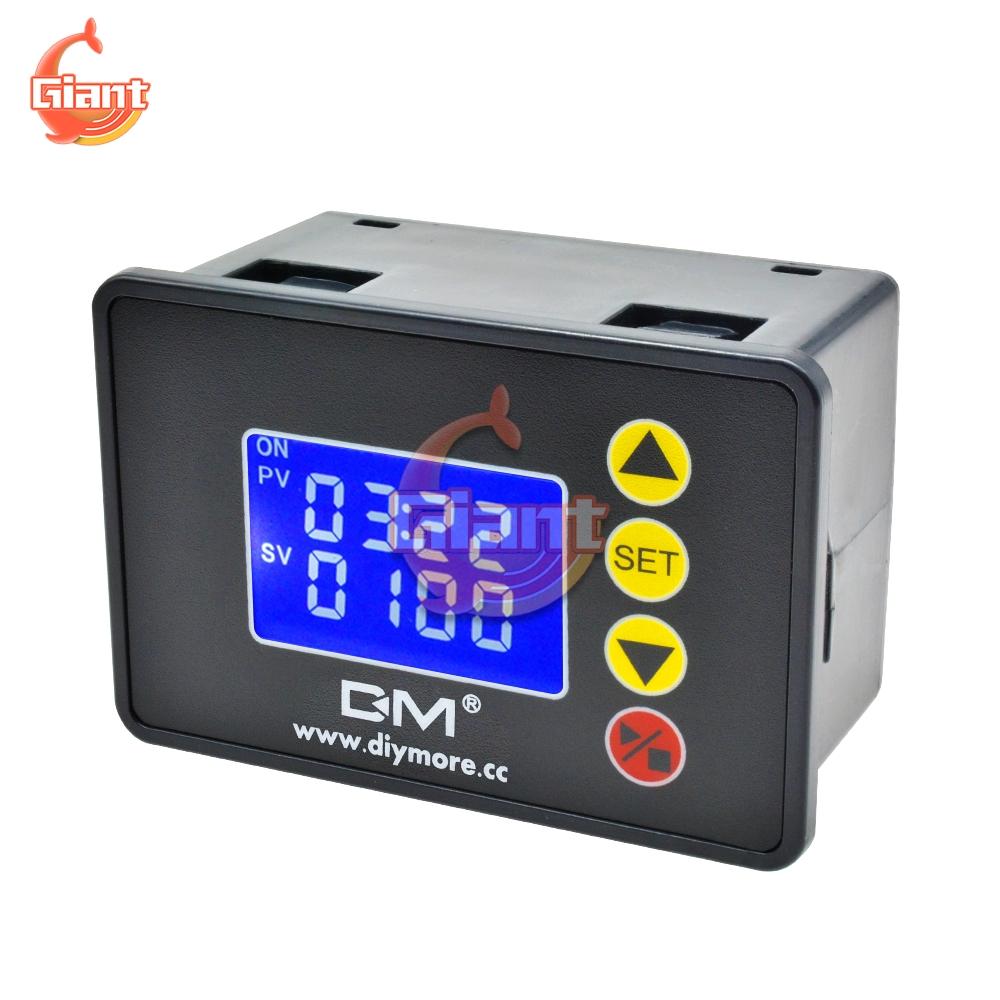

Microcomputer Time Controller 1.37 inch LCD Digital Display Time Delay Relay

Timing range: 00:00~99:59 0000~9999 S Power : DC12V/20A /240W (Max) DC24V/20A/480W (Max) AC110V~220V /10A/2200W (Max) Product size: 67×45×34mm Hole size: 63×42mm product weight:58g（12V/24V) /63g(110~220V)

1 * DM-1.37 inch LCD Display Microcomputer Delay Relay (Time Control)

Red Blue Time Delay Relay Description

Name:Digital display time relay module Material:plastic+metal Display panel: 79mm * 43mm Installation: 71mm * 40mm * 24mm Colour:Black System Power: 110-220V / 12V Timing range:0-999S/0-999M/0-999H Product features: timer /delay /cycle /covering 18 kinds of functions Maximum operating current: 10A Maximum power: 1500W

Function:

<hr/> Can be used for timing, delay, cycle timing, intermittent timing and other occasions.

Instruction

<hr/> * Before using the first prompt the user to note that after setting the data must wait 6s, 6s after the module will automatically save the memory settings data.

* Press the SET key once to enter the time setting mode, the red digital tube flicker, through button plus or minus button to adjust the setting time T1.After T1 is set short press the SET button again , the digital tube flicker, through button plus or minus button to set time.After time T2, T2 time is set, press the SET button again, the system will automatically save the memory setting time or wait 6s, must wait 6s,6s after the module will automatically remember to save the data.

* Long press SET to enter parameter setting mode. There are two sets of parameters for the user to select P0, P1. Pressing SET in the current mode switches P0, P1. In the P0 parameter can be set by button plus or minus button for their own timing mode. Under the P1 parameter, you can set the operation mode by pressing the button plus or minus button. P0--0: T1 Timer time mode is seconds P0-1: T1 timer time mode is minutes P0--2: T1 timing time mode is hour P1--0: T1 time delay relay (T1 timer) P1--1: T1 delay time relay releases (T1 timer) P1--2: time delay relay after T1 (T1 timer), then the delay time T2 successor electrical release (T2 timing) ends. P1--3: T1 delay time relay releases (T1 timer), then the delay time T2 successor Electric energized (T2 timing) ends. P1--4: time delay relay after T1 (T1 timer), then the delay time T2 successor electrical release (T2 timer), repeat the cycle. P1--5: T1 delay time relay releases (T1 timer), then the delay time T2 successor Electric energized (T2 timer), repeat the cycle. For example: A customer needs time 10 seconds to boot, 20 seconds off, would always loop. Set up as follows: T1 set the time 10, T2 set the time 20 P0-0 (T1 timing range is seconds) P1 - 5 (timer mode is the first to work then stop would always loop.)

1 x Timing Delay Relay Module

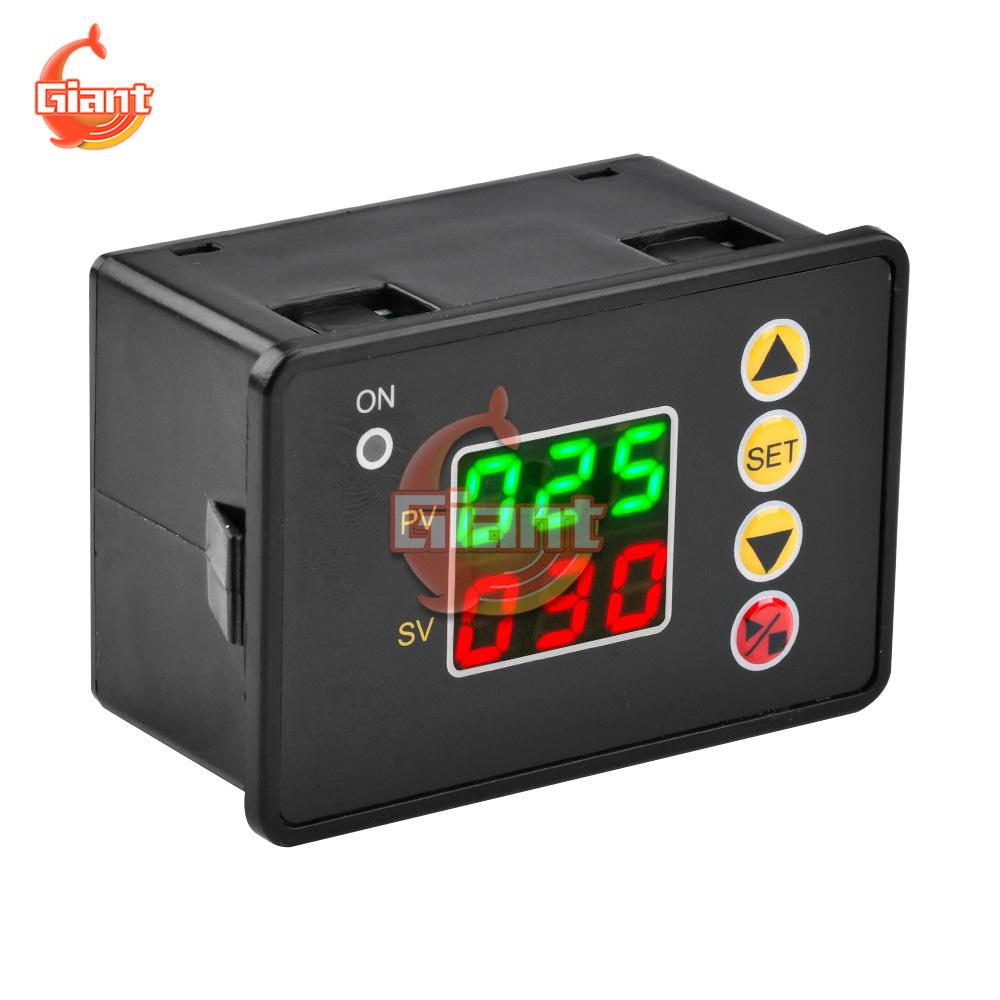

T2310 DC 12V 24V AC 110V 220V T2310 Digital Time Delay Relay Cycle Timer Control Switch Adjustable Timing Relay Multifunction Time Relay

Independent crystal oscillator, more accurate timing 1. Convenient direct output wiring 2. Add buzzer and audible alarm 3. Add pause button to stop urgently 5. Start and stop setting mode, provincial conversion, which is more convenient 6. Automatically save when power off, run automatically when power on 7. Timing units can be set separately, with 36 working combinations 8. Timing range: 0-999 seconds, minutes, hours 9. To count in minutes or hours, the digital tube flashes in seconds.

Note: This product is a countdown operation and cannot be set to a 24-hour working mode.

Controller type Normally open Operating Voltage: DC12V /DC24V /AC110~220V Control circuit voltage: DC12V / DC24V /AC110~220V Relay carrying power: 240W 480W 10A（max） Recommended power: ＜Relay carrying power×80% Relay type: Normally open relay Power consumption: ＜1W Relay service life: 100000 Times Timing error: ±3s（in 24 hours） Weight: 65g Size: 67mm×45mm ×34mm Fixed way Embedded Hole : 63mm×42mm

1 x DC 12V/24V /AC 110V 220V T2310 Timing Relay (optional)
