Creality 3D Scanner CR-Scan Raptor Handheld Scan 0.02 Mm Accuracy 60fps Scanning Speed Blue Laser NIR Light 3D Printing Scanner

Creality 3D Scanner CR-Scan Raptor 3D Printing Handheld Scan 0.02 mm Accuracy 60fps Scanning Speed Blue Laser NIR Light Scanner CR-Scan Raptor 3D Scanner: 7 Blue Parallel Laser Lines Metrology Grade Accuracy, up to 0.02mm Scanning Speed up to 60fps Objects between 5-2000mm Anti-shaking for Smooth Scanning Scan Black/Metal Objects Without Sprays 24-Bit Full-Color Scanning Light and Compact(215mmx50mmx74mm), only weight 372g

Blue Light(Blue 7-line laser) Mode: Accuracy: Up to 0.02mm @ 100mm [1] 3D Resolution: 0.02-2mm Scanning Speed: Up to 60fps Min. scanvolume: 5mm x 5mm x 5mm Single Capture Range: 270mmx170mm@300mm Working distance: 150mm-400mm Color Mapping: Yes Alignment mode: Marker

NIR(infrared binocular structured light) Mode: Accuracy:Up to 0.1mm 3D Resolution:0.1-2mm Scanning Speed:Up to 20fps Single Capture Range:930mmx580mm@1000mm Working distance: 170mm-1000mm Color Mapping: Yes Alignment mode: Marker / geometry / texture

CR-Scan Raptor Hybrid Blue Laser & NIR, Metrology Grade Accuracy Lightweight and Portable, One-hand Control

BLUE LASER & NIR

Intuitive Experience

See Raptor's Wide Applications

Scan Black/Metal Objects without Sprays

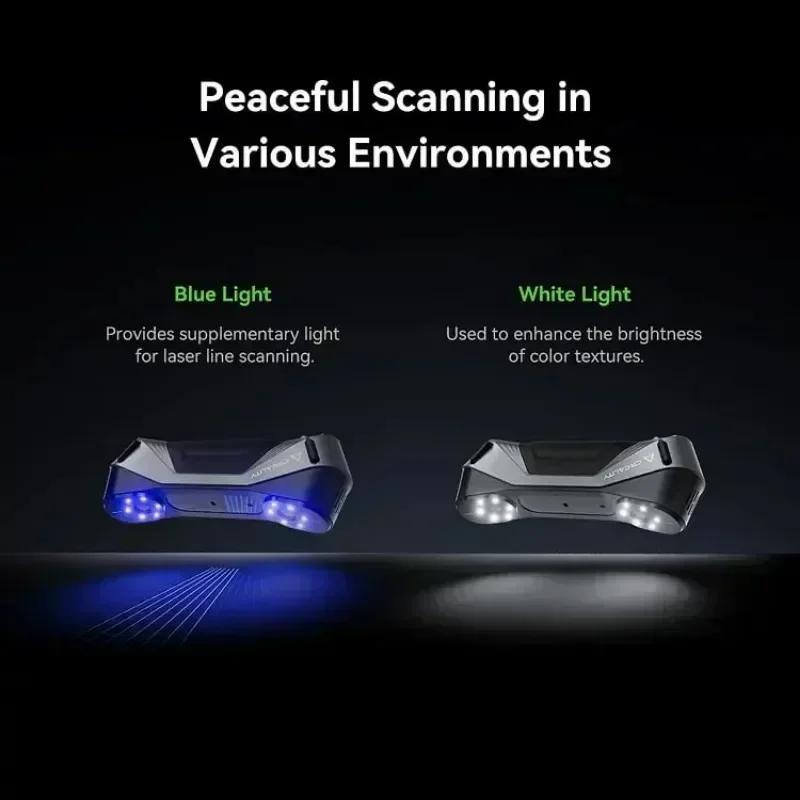

Peaceful Scanning in Various Environments

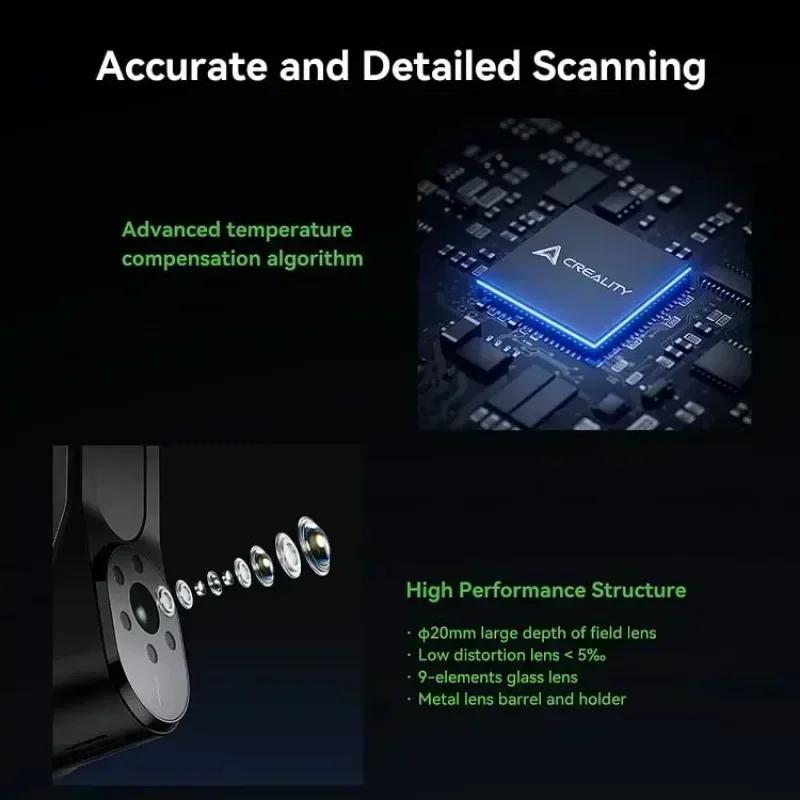

Accurate and Detailed Scanning

Anti-shaking for Smooth Scanning

Unique Face & Body Algorithm

High-speed Scanning Beyond Your Imagination

Infrared Structured Light Scanning

Versatile Scanning for All Sizes

7 Laser Lines Metrology Grade Accuracy

High Precision Glass Calibration Board

24-bit Full-Color Scanning

Product Display

System Support: Windows/macOS Item Shape: Others Item Type: Cartridge Heater Name: CR-Scan Raptor 3D Scanner 3D imaging camera resolution: 1920x1200 Button: Mechanical Wireless Scanning: Supported in conjunction with future wireless scanning accessories Operating temperature: -10°C to 40°C Operating humidity: 0-90%RH Origin: Mainland China Control Method: Sensor Scanning Mode: Blue Light(Blue 7-line laser) / NIR(infrared binocular structured ligh Marker Recognition Enhancement: 12 infrared LEDs Data interface: TypeC/USB3.0 Brand Name: Creality Model Number: CR-Scan Raptor Color Supplemental Light: 12 white LEDs IMU: Yes Input Power: 12V 2A Note: Accuracy is evaluated in laboratory conditions (measurement object is High-concerned chemical: none Assembly Required: no Type: creality 3d Laser Safety: Class I (eye safe) Output format: OBJ/STL/PLY Device Dimensions: 215mmx50mmx74mm Calibration board: High-precision glass calibration board
