Intelligent recognition of vehicle status, better 24-hour parking monitoringChanging the traditional single wiring, using ACC + constant double wiring technology, after the adaption of Mini 5/ Z40 / Z50 / Mola N3 Pro Dash Cam, it can intelligently determine the vehicle operating status. The dash cam automatically enters 1 frame per second time-lapse mode after the car shuts off, which will increase parking monitoring coverage time and data storage by 30 times, better realize 24-hour parking monitoring.

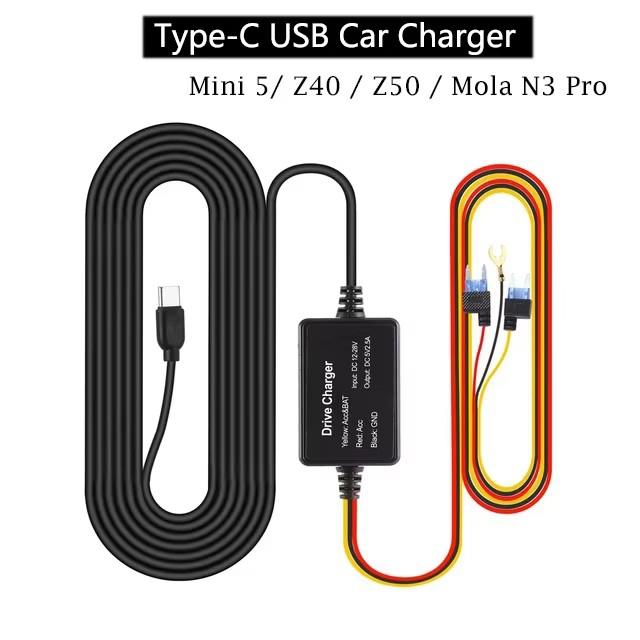

Input:12V-24V; Output:5V/3A, hardwire kit is suitable for most car models(Voltage between 12-24V). Our hardwire kit Equipped TYPEC USB conversion cable,works for almost all car

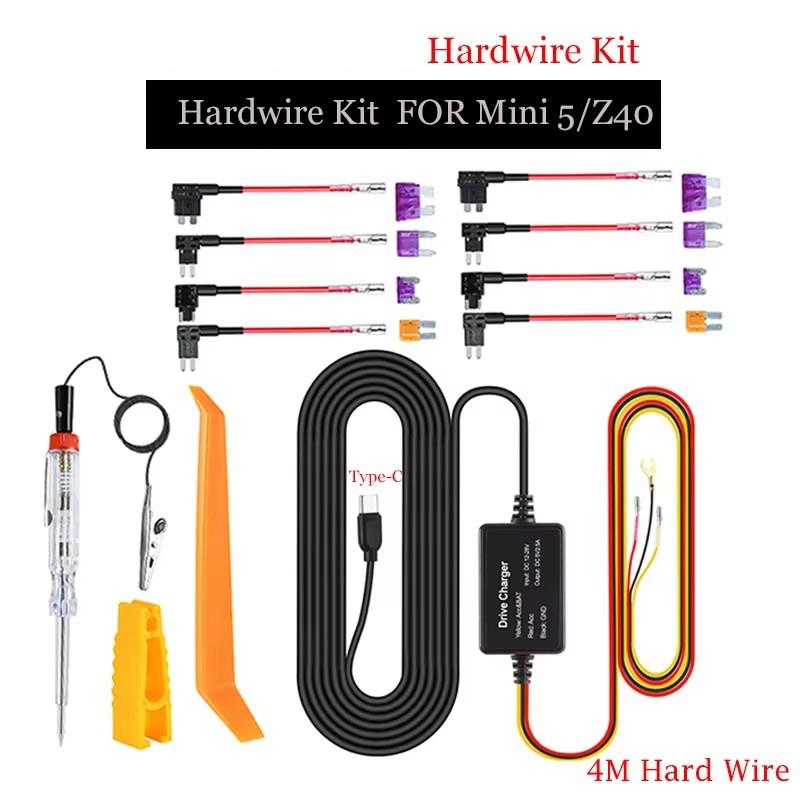

Car Charger 4M Hard Wire Hardwire Kit
5-layer safety protection, for safe driving
5-layer safety protection, greatly enhance the self-defense capability of the hardwire kit, more intelligent protection for your dash cam and car battery.
High-fire-retardant material, thick wire, high-and low-temperature resistant, more stable
Using High-strength ABS flame-retardant material, pure 22 copper core, thicker than the general wire in market, large flow capacity, good electrical and thermal conductivity, Wire rod has been tested for a number of rigorous indicators such as tensile strength, twist, aging and high and low temperature.
Multiple Security Protection
With low voltage protection, our hardwire kit will automatically cut off the power after 60s when the voltage is lower than 11.6V/23.6V (it depending on your vehicle). More security protection like over-current, short-circuit, reverse connection, and overheat.
No break-in installation, safer and more reliable
Drawing power from fuse box, completely invisible wiring, it does not occupy cigarette lighter, nor interface other external devices usage. No cable breaking installation, comes with the voltage setting, the owner can set a reasonable voltage value to protect the car battery according to the vehicle condition, safer and more reliable driving recording.
4 DUAL-SLOT fuse holder
4 DUAL-SLOT fuse holder, Standard ATO, mini, low profile mini and micro2. 4 types, suit for most cars on the market
Fuse adapter installation
Fuse Adapter
1. Pull out the orginal fuse at fuse box
2. Insert the orginal fuse to LOWERslot on the adapter
3. Insert fuse to the UPPER slot
4. Insert the adapter to the fuse slot at fuse box
Wire Connection
If you just want the car key to turn the dash cam on or off, please follow these steps
1. Red wire connect car key power ACC+12V
2.Yellow wire connect with car key power ACC+12V
3.Black wire connect with GND
If you want 24h parking monitor function:
1. Red wire connect car key power ACC+12V
2.Yellow wire connect with 12V (B+) (not controlled by the ignition key, when your car does not start, it is still energized, it can be tested with an electric pen)
3.Black wire connect with GND
How to Hidden The Parking Cable?
1.Connect with Cae ACC power,when start car engine,dvr will turn on automatically,when turn off car engine,dvr will turn off automatically.
2.Connect with Car battery or often electricity,can support 24 hours power for dvr work,sipport car dvr is Parking Monitor function.
Video Format: AVI
Interface: USB 2.0
semi_Choice: yes
Is Batteries Included: Yes
Frames Per Second: no
High-concerned chemical: none
Chipset Manufacturer: HISILICON
Assembly Mode: Hidden Type
Choice: yes
Brand Name: chezhilin
Origin: Mainland China
Original Package: Yes
Item Type: Car DVR
