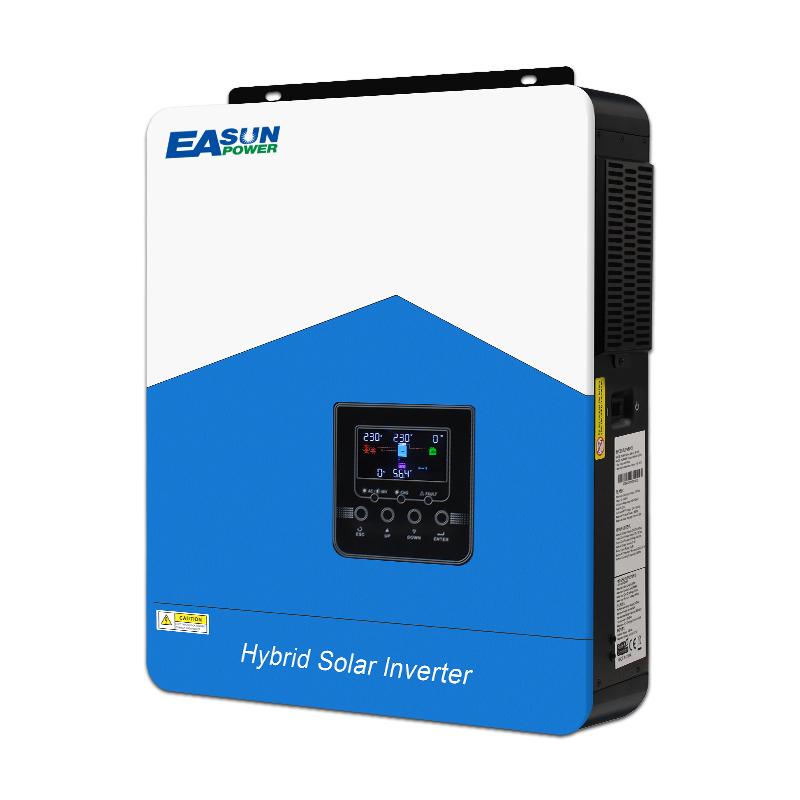

Easun Power 6200w 48v MPPT Hybrid Off Grid Dual Output Pure Sine Wave 120a 230v 50/60hz Solar Inverter Charger with BMS WiFi

Easun Power 6200w/48v 4200w/24v MPPT Hybrid Off Grid Dual Output Pure Sine Wave 120a 230v 50/60hz Solar Inverter Charger

INTRODUCTION

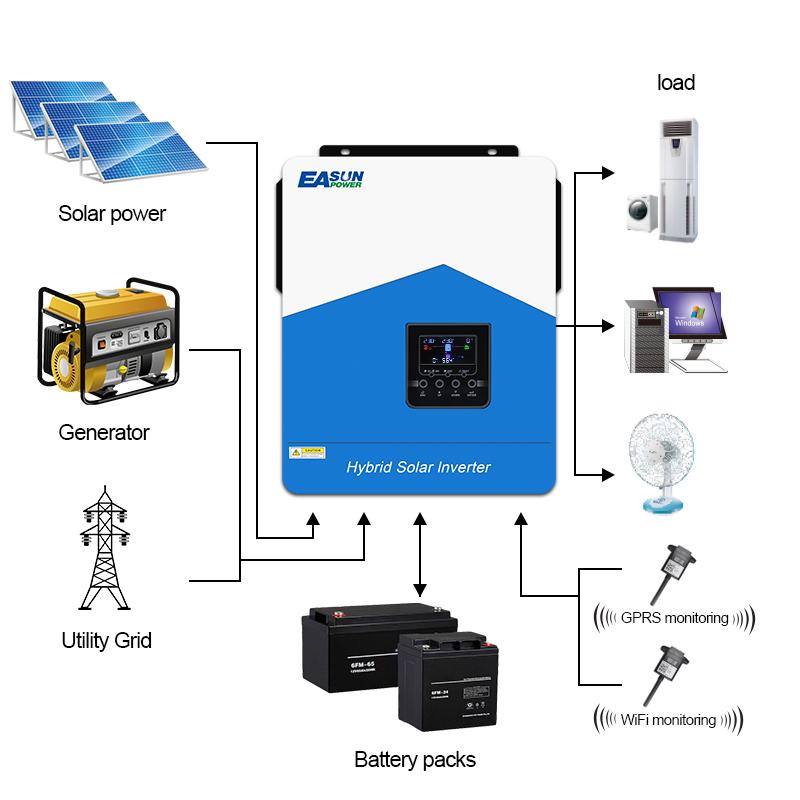

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-confiqurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Features:

1. Pure sine wave inverter

2. Configurable input voltage range for home appliances and personal computers via LCD setting

3. Configurable battery charging current based on applications via LCD setting

4. Configurable AC/Solar Charger priority via LCD setting

5. Compatible to mains voltage or generator power

6. Auto restart while AC is recovering

7. Overload/Over temperature/ short circuit protection

8. Smart battery charger design for optimized battery performance

9. Cold start function

<u>10. Wifi included for remotely monitor</u>

MODEL ISolar-SMH-III-4.2KW-WIFI ISolar-SMH-III-6.2KW-WIFI

Phase 1-phase

Maximum PV lnput Power 6200W 6500W

Rated Output Power 4200W/4200VA 6200W/6200VA

Maximum Solar Charging Current 120A

GRID-TIE OPERATION

PV INPUT(DC)

Nominal DC Voltage/Maximum DC Voltage 360/500VDC

Start-up Voltage/lnitial Feeding Voltage 60VDC/90VDC

MPPT Voltage Range 60-450VDC

Maximum Input Current 1/18A 1/22A

GRID OUTPUT(AC)

Nominal Output Voltage 220/230/240VAC

Output Voltage Range 195-253VAC

Nominal Output Current 18.2A 27.0A

Power Factor >0.99

EFFICIENCY

Maximum Conversion Efficiency (DC/AC) 98%

TWO LOAD OUTPUT POWER

Full Load 4200W 6200W

Maximum Main Load 4200W 6200W

Maximum Second Load (battery mode) 1400W 2067W

Maximum Load Cut Off Voltage 26VDC 52VDC

Maximum Load Return Voltage 27VDC 54VDC

OFF-GRID OPERATION

AC INPUT

AC Start-up Voltage/Auto Restart Voltage 120-140VAC/180VAC

Acceptablel Input Voltage Range 90-280VAC or 170-280VAC

Frequency Range 59-61±1Hz

Maximum AC input Current 24.7A 36.4A

PV INPUT (DC)

Nominal DC Voltage/Maximum DC Voltage 360/500VDC

MPPT Voltage Range 60-450VDC

Maximum Input Current 1/18A 1/22A

BATTERY MODE OUTPUT (AC)

Nominal Output Voltage 220/230/240VAC

Output Wave Form Pure sine wave

Efficiency(DC to AC) 94%

BATTERY&CHARGER

Nominal DC Voltage 24VDC 48VDC

Maximum Solar Charging Current 120A 120A

Maximum AC Charging Current 100A 100A

Maximum Sotar+AC Charging Current 120A 120A

HYBRID OPERATION

PV INPUT (DC)

Nominal DC Voltage/Maximum DC Voltage 360/500VDC

Start-up Voltage/lnitial Feeding Voltage 90VDC/120VDC

MPPT Voltage Range 60-450VDC

Maximum lnput Current 1/18A 1/22A

GRID OUTPUT(AC)

Nominal Output Voltage 220/230/240VAC

Output Voltage Range 195-253VAC

Nominal Outpu tCurrent 18.2A 27A

AC INPUT

AC Start-up Voltage Auto Restart Voltage 120-140VAC/180VAC

Acceptable lnput Voltage Range 90-280VAC or 170-280VAC

Maximum AC Input Current 24.7A 36.4A

Maximum Charging Current 100A

GENERAL

PHYSICAL

Dimension,H*W*D(mm) 420*350*110

Cartoon Dimension,H*W*D(mm) 500*415*180

Net Weight(kgs) 8 8.9

Gross Weight(kgs) 9 10

INTERACE

Communication Port RS232/RS485/WIFI/GPRS/LITHIUM BATTERY

ENVIRONMENT

Humidity 5% to 95% Relative Humidity (Non~condensing)

Operating Temperature -10℃～50℃

STANDARD

Compliance Safety CE

Weight: 10.5kg Type: Hybrid solar inverter Max PV Array Power: 6500w Floating charge voltage: 54V EANCode: 6916986682231 Output Current: 27a Rated power: 6200w Overcharge Protection: 63V Max input current: 26.9A Parallel function: NO Communication: RJ485, wifi EU Stock: Yes EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc Certification: CE Model Number: isolar-smh-iii-6.2kw Charging Current: 120A Wifi: included, for remotely monitor Shipping Cost: free Brand Name: EASUN POWER Output Type: DUAL Is Smart Device: Yes Solar Charger Type: MPPT Origin: Mainland China Size: 48*36*17cm Output Frequency: 50/60hz is_customized: Yes
