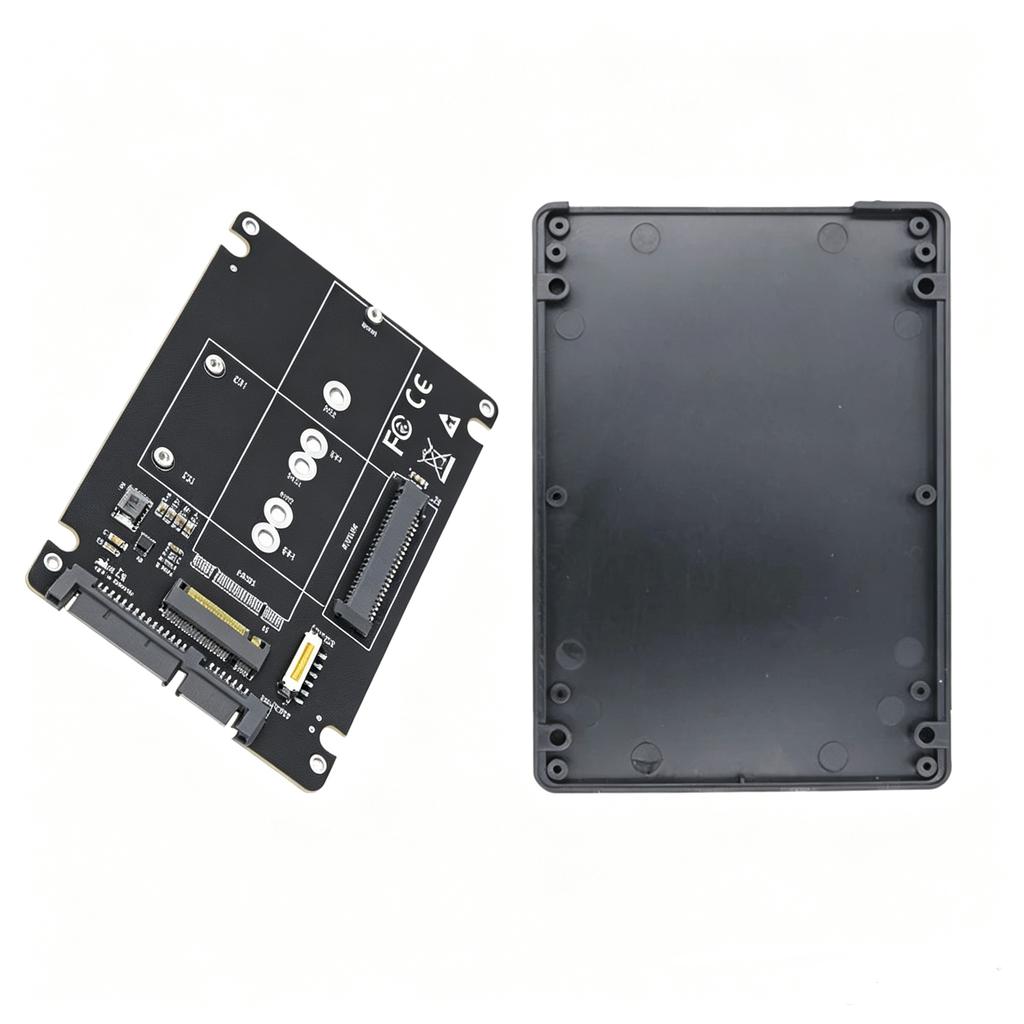

M.2 NGFF & MSATA to SATA III Adapter Card with Switch, 2.5" SSD Enclosure Converter for B-Key M-Key SATA Solid State Drive

M. 2 (NGFF) and MSATA 2-in-1 SATA 3 hard disk enclosure

Be careful:

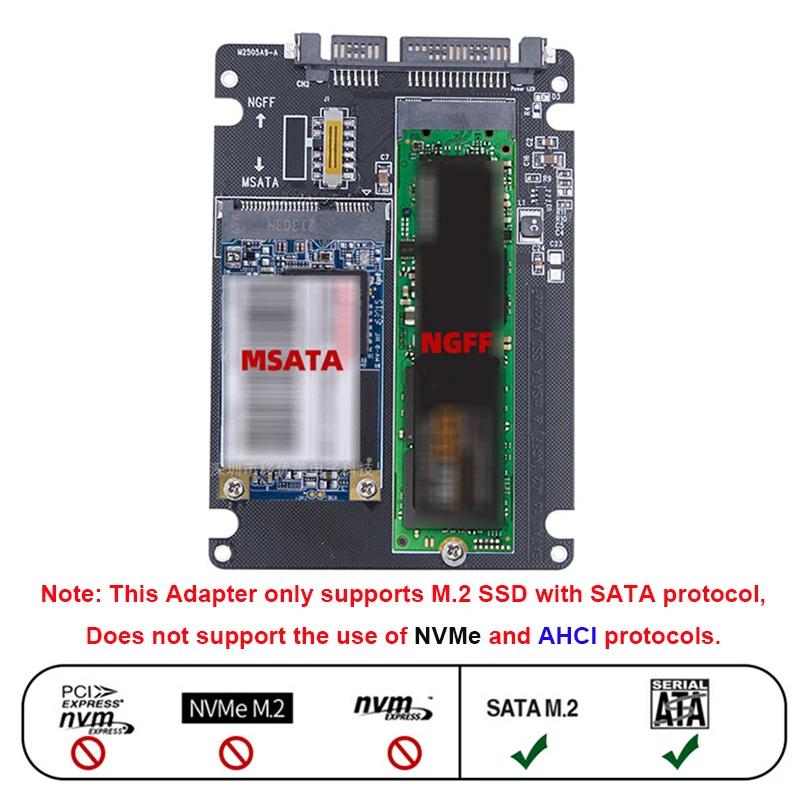

Two SSDs can be inserted at the same time for use.Only one SSD can be identified at a time.You need to turn the switch to the corresponding position

For M.2 NGFF, this adapter card is only applicable to B-key or B/M-key interfaces, not M.2 NVMe M-key interfaces.Hard disk usage thatDoes not support AHCI and NVME protocols

Only M2 NGFF Hard Disk Supporting SATA protocol (NGFF)

1.Support M 2 NGFF or MSATA SSD is converted to SATA2.5 "/3.5" hard disk for use

2.Fully compatible with SATA3.1 standard

3.Compatible with PCI Express M.2 protocol

4.NGFF and MSATA SSDs are allowed to input 3.3V voltage and 3A maximum current.This adapter card has no chip, and there is no speed.The speed that only functions as a transfer is related to the SSD itself

5.Support 80mm 60mm 42mm 30mm M 2 NGFF SSD

6.Support full height and half height MSATA SSDs

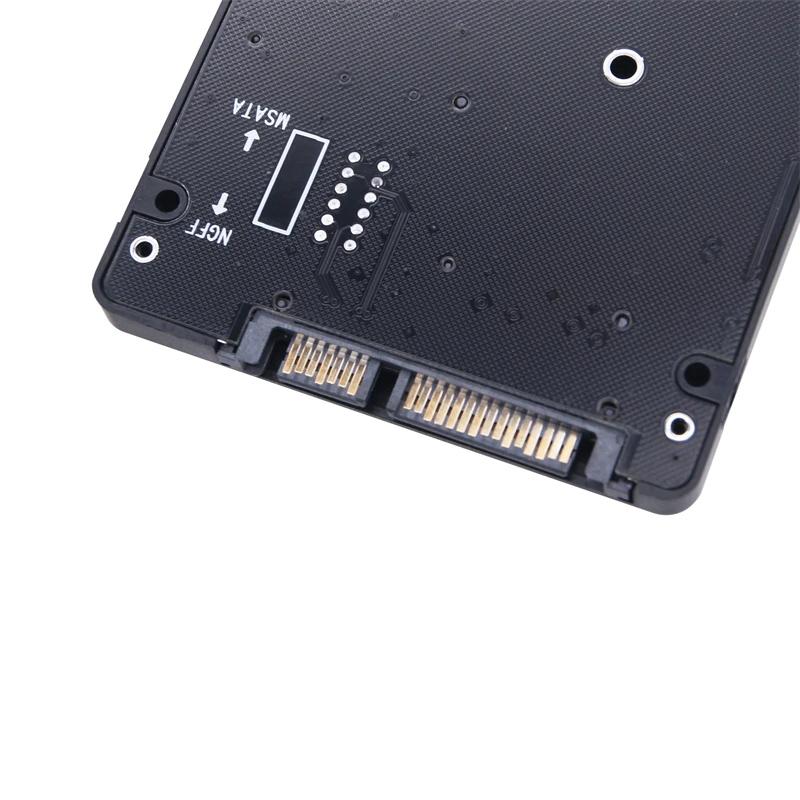

Switch toggle design

Move the NGFF mode switch upward

MSATA mode switch toggles downward

Before purchasing, please make sure to confirm that your SSD type is NVMe.M.2 distinguishes between NGFF and NVMe, as they are different.

AAA

--------------------------------------------------------------------------------------------------------------------------------------------

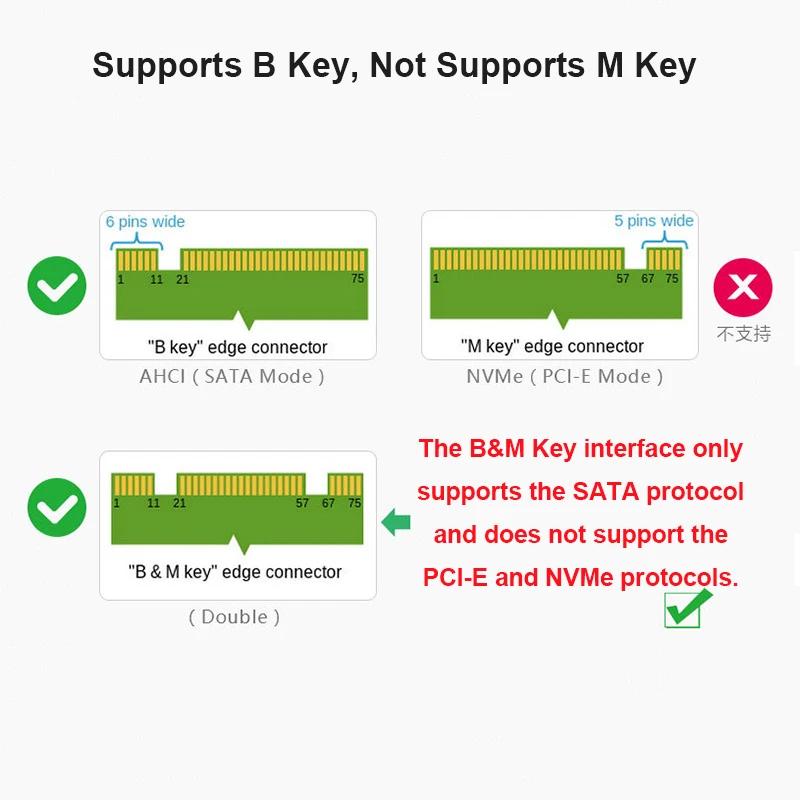

M. 2 Interface confirmation, left notch B key 6Pin, does not support right notch M key 5Pin

Interface Type: NGFF Package: Yes Brand Name: NONE High-concerned chemical: none Function: Single Installation: Internal Model Number: M.2 NGFF Msata To Sata 3.0 Type: Add On Cards Choice: yes Origin: Mainland China Certification: NONE
