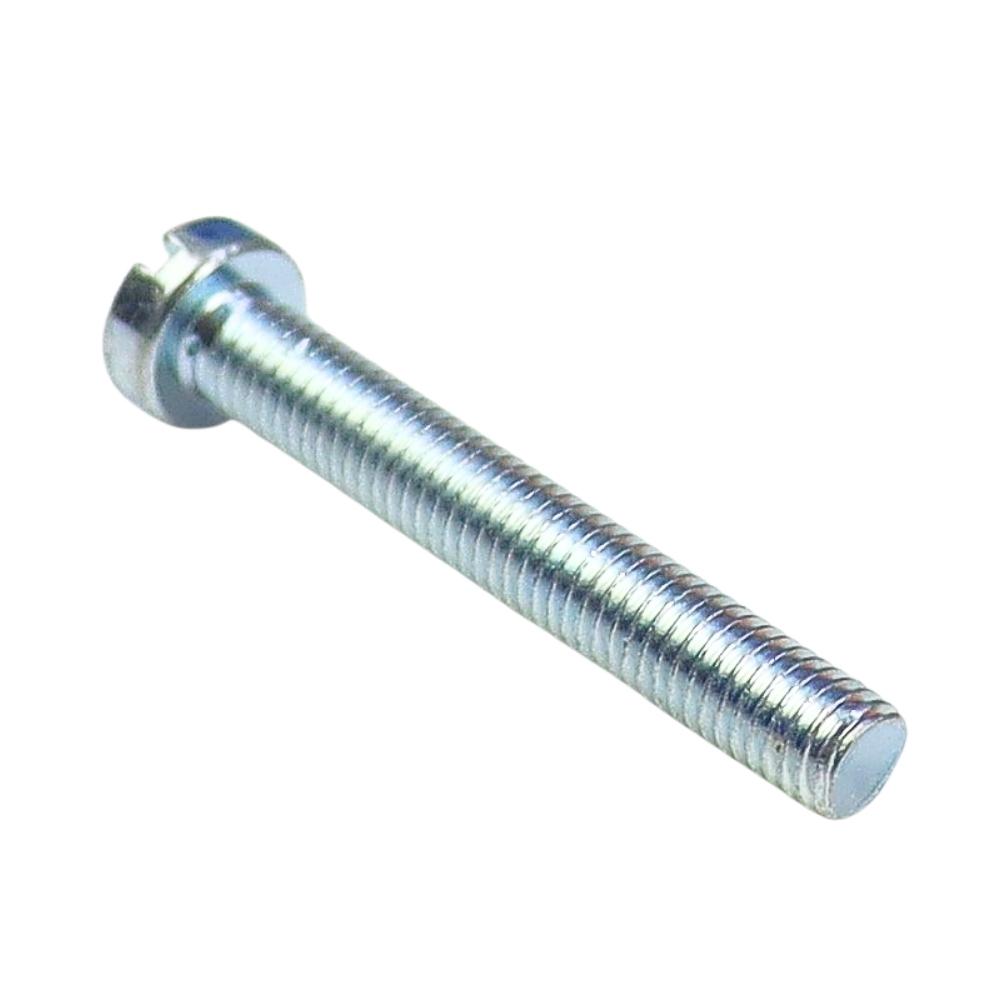

Metal screw M5x35 DIN84 galvanized

Metal screw M5x35 DIN84 galvanized

The galvanized metal screw M5x35 DIN 84 is a classic machine screw with a cheese head and a straight slot, designed for connecting metal elements with an M5 nut or in M5 threaded holes. DIN 84 screws are usually fully threaded, which makes them ideal for connections in thin sheets, profiles, and structural elements.

Thanks to the steel construction and galvanized coating, the screw is well suited for workshop applications, agricultural machinery, and general service work – wherever a secure and aesthetically pleasing fastening is important.

✔️ Type: metal screw / machine screw

✔️ Standard: DIN 84 – machine screw with cheese head and slot; Equivalent standard ISO 1207 / PN 82215 / UNI 6107

✔️ Thread: metric M5, full thread along the entire shank length

✔️ Shank length: 35 mm

✔️ Head shape: cylindrical head (cheese head) – cylindrical, flat on top, with a straight slot for a screwdriver

✔️ Material: steel

✔️ Coating: galvanized – anti-corrosion protection

✅ Metal-to-metal connections in machines, devices and steel structures

✅ Agricultural machinery and workshop – typical standard parts for repairs, modernizations and ongoing service

✅ Assembly of sheet metal, handles, covers, housing elements and small details

✅ Connections in M5 threaded holes and with M5 nuts

✅ Applications where light but stable pressure is needed with a medium screw length (35 mm)

✅ Universal metal screw M5x35 DIN 84 galvanized - a practical workshop standard that is always worth having at hand when working on machines and structures

✅ The cheese head provides a high pressure surface and stable support for the element, while taking up little space, which is important in tight machine spaces

✅ The slot for a flat screwdriver enables quick assembly using simple, commonly available tools – both hand and powered.

✅ The full thread along the entire length of the shank ensures secure tightening even in thin sheets and profiles – the screw “pulls” the material well, and the connection is stiff and stable.

✅ The galvanized coating protects the steel against corrosion - the zinc layer acts as a barrier and a "sacrificial" coating, limiting rusting in conditions of increased humidity and typical use in a workshop or farm.

✅ DIN 84 screws are widely used in industry, electronics and general machine construction, which confirms their versatility and reliability in many typical applications.
