YT-1763 YATO m5-m12 thread repair kit

Professional thread repair kit M5-M12. The drills and taps are made of HSS 4341 high-speed steel. Single-step taps cut a thread into which a hard stainless steel spiral insert is inserted. The insert is inserted using a guide knob and a drift, which breaks off the protruding tip of the insert.

The set is designed for 5 thread types: M5 x 0.8 x 6.7 mm, M6 x 1.0 x 10.8 mm, M8 x 1.25 x 10.8 mm, M10 x 1.5 x 13.5 mm, M12 x 1.75 x 16.3 mm.

Purpose / Application

Professional thread repair kit for M5-M12 threads. The drills and taps are made of HSS 4341 high-speed steel. Single-step taps cut a thread into which a hard stainless steel spiral insert is inserted. The insert is inserted using a guide knob and a drift, which breaks off the protruding tip of the insert.

The set is designed for 5 thread types:

M5 x 0.8 x 6.7 mm,

M6 x 1.0 x 10.8 mm,

M8 x 1.25 x 10.8 mm,

M10 x 1.5 x 13.5 mm,

M12 x 1.75 x 16.3 mm.

How to use

- Determine the size of the damaged thread, and then select a repair kit of the same size.

- Drill out the damaged thread with the drill from the set.

- Then tap it using the tap included in the set. The tap should be mounted

in the tap knob. The knob is not included in the kit.

- Place the cartridge on the spiral cartridge knob so that the cross section of the cartridge is in the knob's slot. Then secure the cartridge with a ring so that it does not stretch during

screwing. Secure the ring with a screw.

- Screw the cartridge completely into the previously threaded hole. Pull out the knob. Using a pin,

break off the transverse part of the insert.

- Screw the screw into the repaired thread.

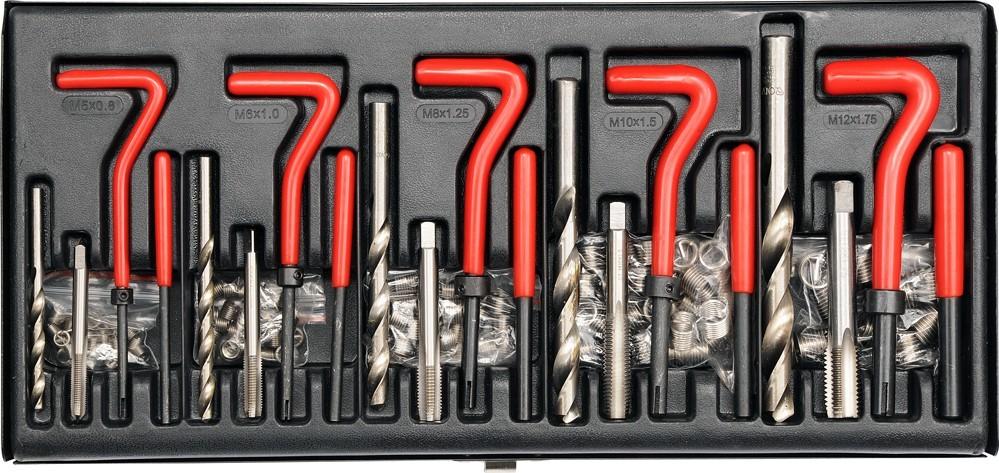

- drills for reaming the damaged thread: 5 pcs.

- single-step taps for making a thread for the new insert: 5 pcs.

- spiral inserts: 5 packs

- knobs for screwing in spiral inserts: 5 pcs.

- drift punches: 5 pcs.

- Allen key: 1 pc.
