Feature:
1. High Definition: Adopt 51 million pixels CMOS sensor, high definition, high resolution, clear images, you can fully view fine details.
2. High Quality Material: Industrial microscope camera is made of high quality aluminium alloy material, rustproof, high strength, sturdy and durable.
3. Multifunction: Video microscope camera supports digital zoom, brightness control, R G B adjustable, etc, convenient for using.
4. LED Ring Light: 56 LEDs ring light provides effective illumination for microscope observation objects, high brightness.
5. Wide Application: Microscope camera can be widely used in microelectronics, mold, jewelry, printing, mobile phone maintenance and other fields.
Specification:

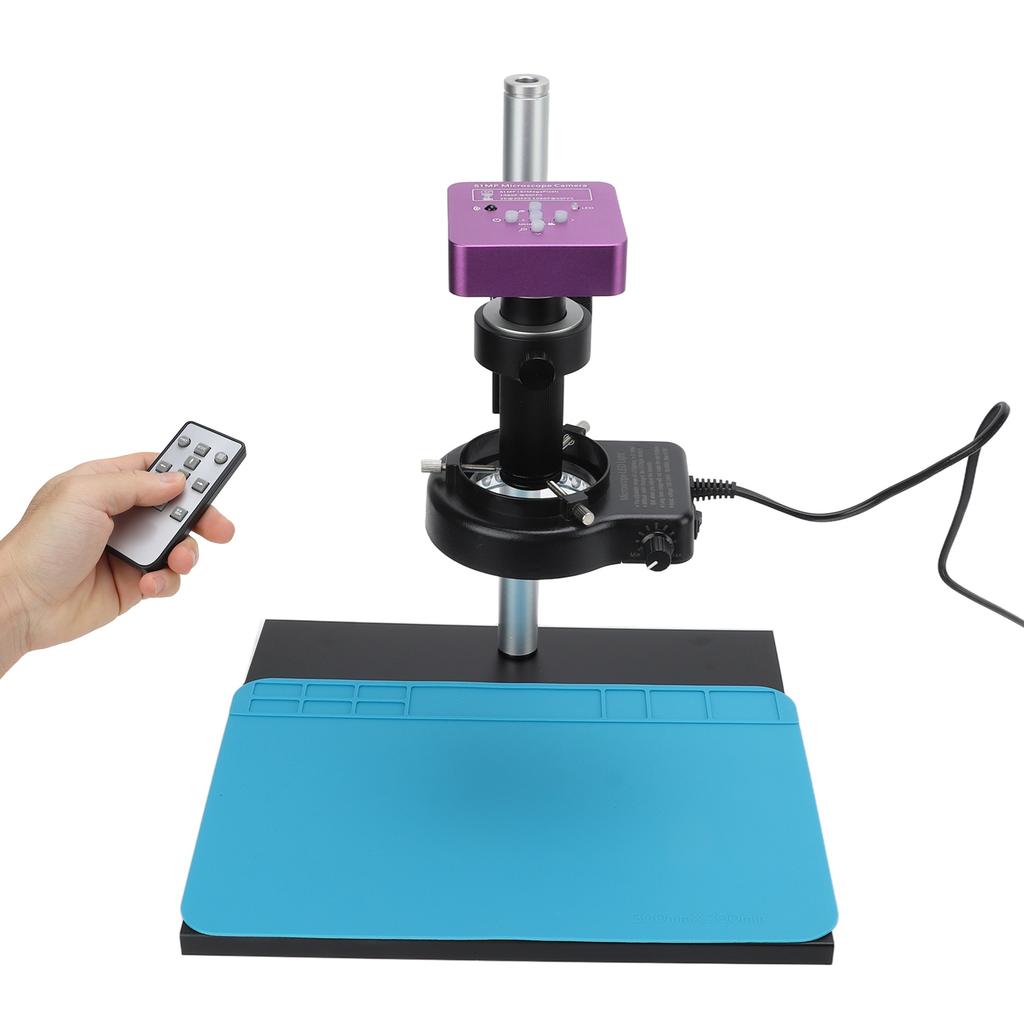

Item Type: Industrial Microscope Camera
Material: Aluminium alloyApplications: Widely used in microelectronics, mold, jewelry, printing, mobile phone maintenance and other fields.
Image Format: JPG
Image Resolution: 51 million pixelsVideo Format: MP4 (for memory card)Video Recorder: 1080P, 60FPSHigh Definition Multimedia Interface Video Resolution: 1920x1080, 60FPS (for High Definition Multimedia Interface)USB Video Resolution: 1920x1080, 30FPS; 1280x720, 30FPS; 640x480, 30FPS; 320x240, 30FPS
White Balance: Automatic or manual
Lighting: Automatic or manual
Exposure: Automatic or manual, adjustable value
Direction: Left or right, up or down
Freeze: Supported
OSD: English, Chinese, French, Spanish, Japanese, German
Lines: Different colors, 5 horizontal lines, 5 vertical lines, any position
Image Sensor: 51 million pixels CMOS sensor 1 2.33 inch
Effective Pixels: 51 million pixels
Pixel Size: 1.335micrometer x 1.335micrometer
Frame Rate: 60fps
Definition: Full high definition
Lens: C CS
Video Format: MOV
Digital Zoom: Supported
Brightness Control: Automatic or manual
Color: R G B adjustable
Film and Record: Supported
Cross Cursor: Support multicolor, adjustable size
Horizontal and Vertical Lines: Support multi color, 5 horizontal or vertical lines, movable
Memory Card Interface: Up to 128GB (not included)High Definition Multimedia Interface: Standard high definition multimedia interface output (Type A)
USB Interface: Standard USB2.0 interface (Type B)
Remote Control Battery Type: 1 x CR2025 (without)
150X C MOUNT Lens
Working Distance: Approx. 50mm 250mm 1.97in 9.84in
C Mount Zoom LensZoom Ratio: 10:1
The magnification of the objective is 0.1 1.3X(about 10 150X on the display)
.
Package List:
1 x Industrial Microscope Camera1 x Lens1 x LED Light
1 x USB Cable
1 x High Definition Multimedia Interface Cable1 x Remote Control1 x Silicone Pad
1 x Hex Wrench1 x Adjustable Bracket1 x Prop1 x Power Adapter1 x Fixing Ring5 x Screw2 x Baseplate1 x Software CD1 x User Manual
Note:
1. Do not place the product in an environment with excessive corrosion, humidity and high temperature.
2. Please supply power according to the operating voltage. Using other voltages may cause fire and damage to the product.
