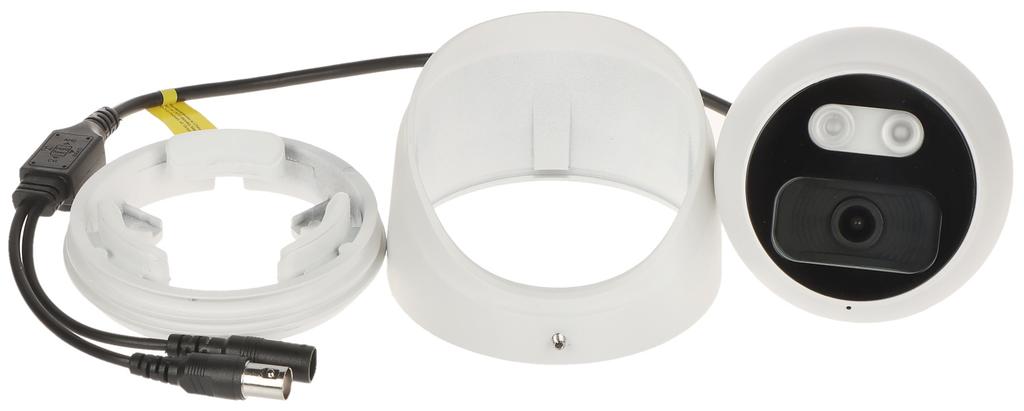

Camera Ahd, Hd-Cvi, Hd-Tvi Apti-H50Va22-28W 2Mpx / 5Mpx 2.8Mm

As the official Polish distributor of APTI equipment, we guarantee that:

✅ We sell only original APTI

✅ All goods from our auctions are available IMMEDIATELY

✅ We offer full WARRANTY support for goods purchased from us…

✅ … as well as full POST-WARRANTY support!

Megapixel camera with a 1/3" CMOS sensor and an AHD / HD-CVI / HD-TVI interface. The AHD / HD-CVI / HD-TVI interface enables the transmission of an analog video signal via a coaxial cable at a maximum resolution of 8 Mpx (4K UHD).

There are no delays during transmission and the original, high image quality is maintained. In the case of video transmission using twisted-pair cables and impedance matching transformers, it should be taken into account that there may be signal reflections and signal crosstalk.

Note! The camera is factory-set to 2 Mpx (1080p) resolution.

• Standard: AHD,HD-CVI,HD-TVI

• Sensor: 1/3 " Progressive Scan CMOS

• Matrix size: 5Mpx

• Resolution: 2592 x 1944 - 5Mpx@AHD/HD-TVI@ 20fps, 12.5fps, 2560 x 1440 - 4Mpx@AHD/HD-TVI@ 30fps, 25fps, 15fps,2560 x 1440 - 4Mpx@HD-CVI@ 30fps, 25fps,1920 x 1080 -1080p@AHD/HD-CVI/HD-TVI@ 30fps, 25fps

• IR illuminator range: 20 m

• IR illuminator power adjustment: Automatic

• Lens: 2.8 mm

• Viewing angle: 89 ° (manufacturer's data), 85 ° (our tests)

• Video output: 1Vpp75 Ω,AHD/HD-CVI/HD-TVI - selectable by switch

• Audio: Built-in microphone, Audio support via coaxial cable - HD-TVI only

• On-Screen Display: Yes

• Housing: Dome - Metal

• Color: White

• Vandal-proof: None

• Protection class: IP67

• Power supply: 12 VDC/ 250 mA

• Power consumption: ≤ 3 W

• Operating temperature: -20 °C ... 60 °C

• Weight: 0.43 kg

• Dimensions: Ø 96 x 91 mm

• Supported languages: Polish, English, French, Spanish, Portuguese, Russian, Italian

• Manufacturer / Brand: APTI

• Warranty: 2 years

• D-WDR - Wide Dynamic Range

• DNR - Digital Noise Reduction

• ICR - Mechanical Infrared Filter

• AGC - Automatic Image Gain Control

• Day/Night Mode

• Automatic White Balance

• Sharpness - Sharpen image contours

CAMERA AHD, HD-CVI, HD-TVI APTI-H50VA22-28W 2Mpx / 5Mpx 2.8mm
