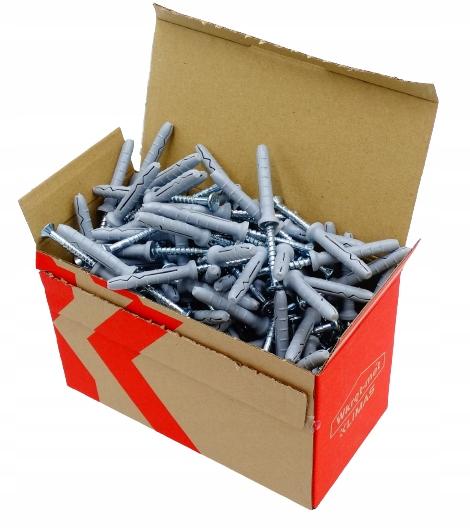

Quick Assembly Dowels Sm 8X50Mm Screw-Met 100 Pcs

QUICK ASSEMBLY PLUGS SM 8X50mm Wkręt-met 100 pcs.

Quick assembly plug by Wkręt-met, recommended for mounting wooden and wood-like elements, polypropylene sleeve.

⚙️ Application:

✅Recommended for the installation of wooden and wood-like elements

✅ Installation of wall profiles in plasterboard ceiling and wall structures

✅ Recommended for serial installation

✅ For the installation of skirting boards

⚙️Technical Specifications:

✅ Diameter (dk):8 mm

✅ Body length (Lk):50 mm

✅ DimensionDk [mm]: 11.5

✅ Dimensionhef [mm]: 40

✅ Dimension dw [mm]: 4.9

✅ DimensionLw [mm]: 55

✅ Number of pieces in the package: 100

✅ Screw socket type: PZ-2

✅ Screw head type:Conical

⚙️ Features and benefits:

✅ The increased head diameter ensures Much better pressure on the mounted elements

✅ The conical screw head is more massive and has a significant thickening under its base

✅ The optimally designed expansion zone guarantees perfect expansion in contact with the ground

✅ Quick and easy push-through installation reduces installation time

⚙️ INSTALLATION METHOD

✅ Before installation, identify the substrate in which the fastener will be installed and compare the loads that the fastener will transfer with the load-bearing capacities specified in the Safety Data Sheet or in the European Technical Assessment.

✅ The appropriate length of the fastener should be selected so that the expansion zone is located in the construction material of the wall.

✅ The drilling method is supervised (holes in perforated masonry and aerated concrete substrates should be drilled with a drill.) rotational without impact)

✅ The diameter of the drilled holes should match the diameter of the connectors used.

✅ Holes in solid materials should be approximately 10 mm deeper than the anchorage depth of the connector.

✅ Holes in solid materials should be cleaned of drill cuttings with a reciprocating drill movement at reduced speed.

✅Then a plastic sleeve is inserted into the hole and the screw is driven in until it penetrates the sleeve.
