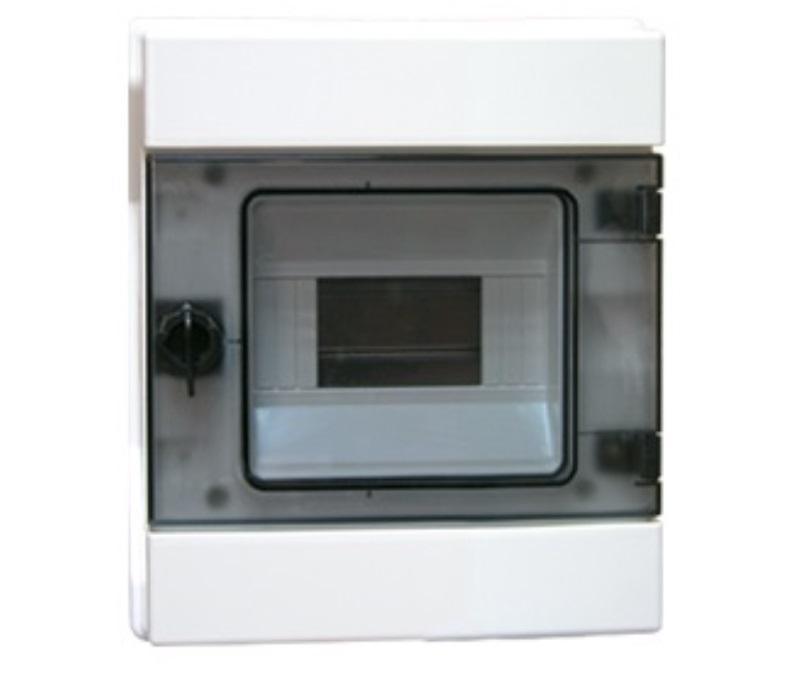

Surface-mounted distribution board RH-6 (N+PE) 1x6 IP65 1000V DC

RH NEO series hermetic switchboards are designed for home and industrial use with the possibility of installing overcurrent circuit breakers and electrical devices. They are available in a surface-mounted version and are widely used in outdoor installations.

Distribution boards equipped with transparent, tinted doors that open sideways (left or right), adapted for mounting a key lock.

Made of high-quality ABS plastic resistant to high temperatures up to 960°C (hot wire test - applies to the terminal strip).

Operational stability from -25°C to +60°C.

Impact resistance (IK 07 grade).

Possibility to install devices with a depth of 68 and 75 mm.

Models with 12 modules and larger are equipped with knockouts in the walls for cable entries and pipes. installation.

Possibility of sealing the door.

Dimensions [mm]: 225 x 260 x 138

Number of modules: 6 Protection degree: IP 65 Color: white The switchboard is equipped with: terminal strips for N and PE tracks, TH 35 mounting bracket, self-adhesive label for descriptions.
