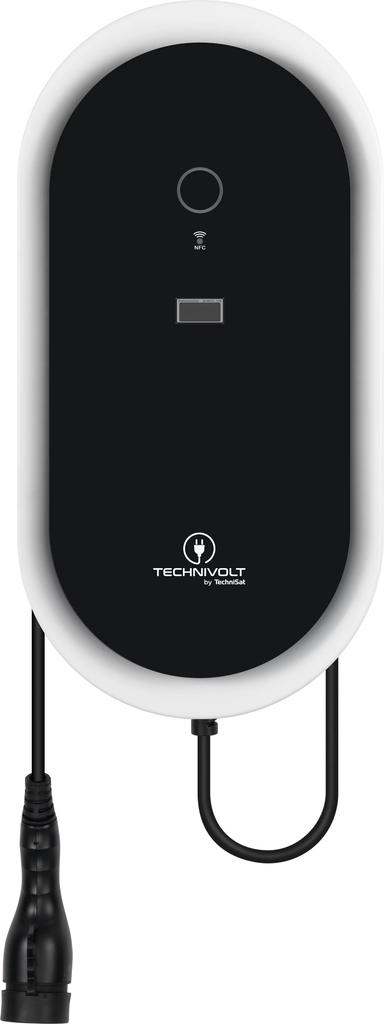

Wallbox Charging Station TECHNIVOLT 1100 SMART 11kW RFID 4G Meter 7.5m

? Intelligent charging station for electric cars (Wallbox) 11 kW

⏳ The most important parameters in a nutshell:

• ⚡ Charging power: Maximum 11 kW with a charging current of 16 A per phase (single-phase charging also possible).

• ? Charging cable: Factory-integrated 5 m or 7.5 m cable (depending on the selected variant) terminated with a Type 2 plug.

• ? Billing and metering: Built-in certified MID energy meter (model DVH4013, accuracy class B) enabling precise monitoring and billing of consumed electricity.

• ? Connectivity: Complete network equipment - built-in 4G LTE Cat1 modem (Micro-SIM), 2.4 GHz Wi-Fi and a fast Ethernet port.

According to the technical documentation contained in the datasheet-11297.pdf file, the TechniSat TECHNIVOLT 1100 SMART is a technologically advanced, three-phase charging station dedicated to the safe and fast powering of electric vehicles (EV) and plug-in hybrids in Mode 3.

The device has been designed for private and corporate installations, offering advanced dynamic network load management functions and full remote control.

⚡ What distinguishes the TECHNIVOLT 1100 SMART station?

• ?️ Complete built-in electrical protections ➡️ Maximum safety and lower installation costs. The wallbox has an integrated DC leakage current detection module and factory-built overcurrent circuit breakers (MCB with C characteristic) and differential circuit breakers (RCCB 4P-20A-30mA Type A).

This means there is no need to install expensive protection in the main distribution board of the building.

• ? RFID Authorization (MIFARE) ➡️ Protection against unauthorized access. Charging can be blocked and activated only using contactless RFID cards (ISO 14443A standard, frequency 13.56 MHz), which protects the station against electricity theft in semi-public or underground parking lots.

• ? Advanced Load Management (DLM) ➡️ Home network protection. This protects the fuses against overload and allows multiple devices to operate in a network simultaneously (Master/Slave).

• ? OCPP Protocol and Smart Home Integration ➡️ Full independence. Support for OCPP protocols in versions 1.5 and 1.6 allows the station to be connected to an external fleet management system (backend).

Support for Modbus-TCP, SMA SEMP and EEBUS enables seamless integration of the charger with home photovoltaics.

• ?️ IP54 protection class and IK08 resistance ➡️ Work in all conditions. The fireproof plastic and glass housing is fully resistant to weather conditions (IP54) and mechanical impact (IK08). It can operate in temperatures from -25°C to +55°C.

? Installation Guidelines (Installer's Cheat Sheet)

• Mains power supply: The station requires a three-phase power supply (AC 230/400 V, nominal current 16 A, frequency 50 Hz). The maximum cross-section of the power cable is 10 mm².

• Cable glands: The gland for the power line (from the bottom or rear) is a standard M32 gland (for cables with a diameter of 15-21 mm). The gland for data transmission cables (Ethernet) is an M25 gland (for cables with a diameter of Ø 4-9 mm).

• Mounting: Wall (a dedicated mounting template and a set of professional Fischer SXRL plugs are included). The maximum operating installation altitude is 2000 m above sea level.

? Detailed technical specifications

• Manufacturer: TechniSat

• Model: TECHNIVOLT 1100 SMART

• Product variants: Art. No. 0007/6301 (7.5 m cable)

• Charging mode: Mode 3 (in accordance with IEC 61851-1)

• Charging power: 11 kW

• Nominal output voltage: 230 / 400 V AC

• Nominal current (maximum): 16 A

• Output cable: Integrated with Type 2 plug (IEC 62196-2)

• Energy meter: Built-in MID, 7-digit LCD display, class B

• Vehicle communication: PLC, ISO 15118 Plug-&-Charge

• Network communication protocols: OCPP 1.5, OCPP 1.6, Modbus-TCP, SMA SEMP, EEBUS

• Wireless connectivity standards: 4G LTE Cat1 (Micro-SIM), Wi-Fi (802.11 b/g/n, 2.4 GHz)

• Wired connectivity standards: Ethernet (100Base-T, RJ45 socket)

• Leakage protection: Internal RCM module, $I_{\Delta n} \ge 6\text{ mA}$ direct current (DC)

• Input protection: MCB (C characteristic, 16 A), RCCB (4P-20A-30mA, Type A)

• Housing protection class: IP54 / Mechanical resistance: IK08

• Device dimensions: 34 x 66 x 11.2 cm

• Device weight: 9.19 kg (7.5 m version)

? What do you get in the set?

• TECHNIVOLT 1100 SMART charging station with charging cable

• Dedicated front protective glass

• Mounting angle key (Torx-TR 20)

• 2x RFID user card (MIFARE standard)

• Professional mounting set (4x Fischer SXRL 8 x 60 FUS A4 plugs)

• Mounting template (paper)

• Mounting instructions and user manual

• Does the station require an additional type B differential circuit breaker to be installed in the distribution board? No, the station has an integrated 6 mA DC differential current detection module (RCM) and a factory-built MCB fuse and Type A RCCB.

This fully complies with strict installation standards without incurring additional costs.

• What are the charging authorization configuration options in this model? By default, the charger is set to free charging mode (without authorization). However, it can easily be switched to authorization using the included RFID cards (MIFARE) or via the network backend (OCPP).

It also supports the ISO 15118 Plug-&-Charge automatic vehicle recognition standard.

• What happens to the master RFID card if I forget the operator's password to the web panel? The included user RFID cards can be assigned as "Master RFID" cards. Placing such a card against the reader for 120 seconds resets the device to factory settings (in the event of a lost password), allowing you to log in again with the default operator account.
