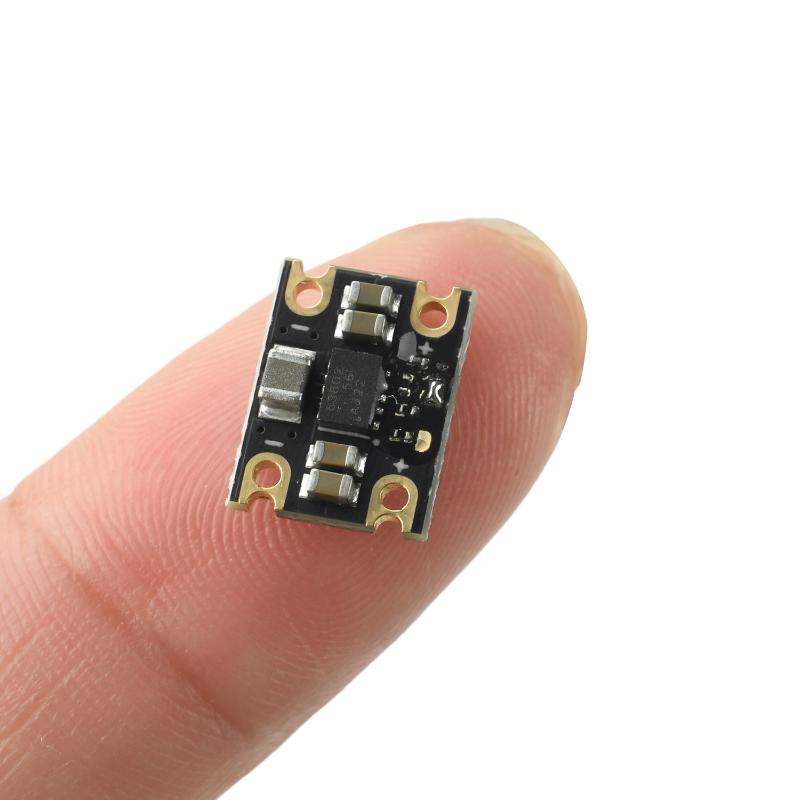

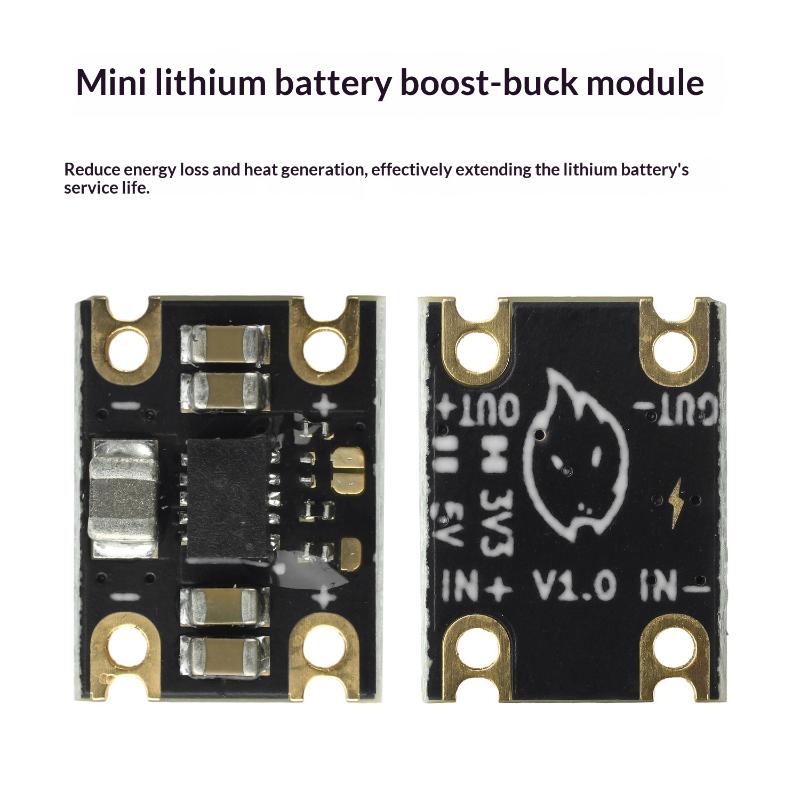

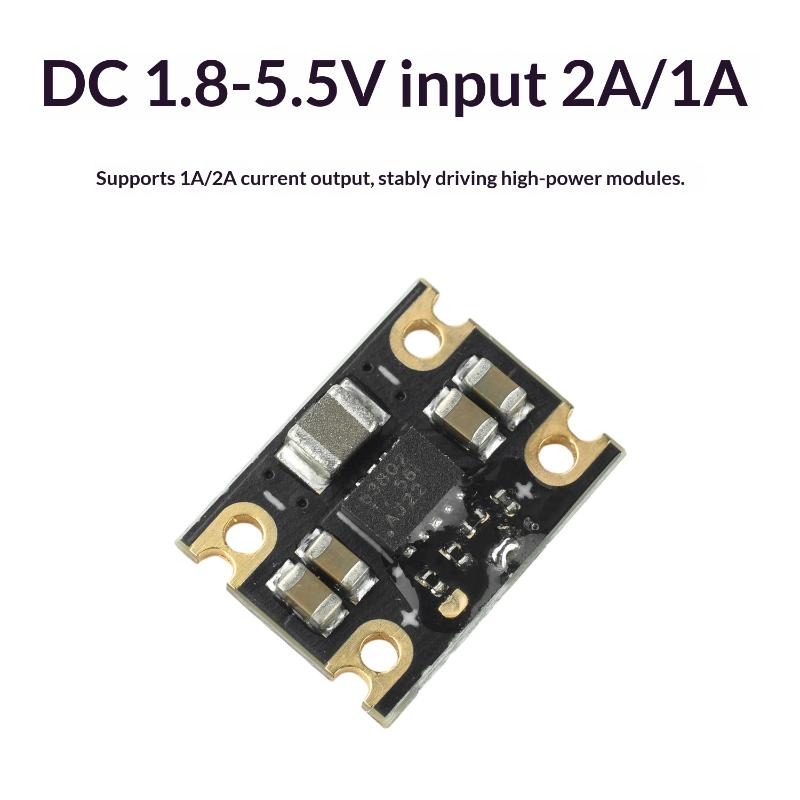

Tps63802 Mini Lithium Battery -Boost Module Dc 1.8-5.5V Input 2A/1A 3.3/5V Boost Output Battery Boost Module

Features: 1. Features the highly integrated TPS63802 chip, supporting multiple input voltages 2. Reduces energy loss and heat generation, effectively extending lithium battery runtime 3. Offers two selectable output voltages (3.3V/5V) for compatibility with diverse devices 4. Supports 1A/2A current output, reliably driving high-power modules 5. Easily integrates into various DIY projects, handheld devices, or power banks Parameter: 3.3V Input Voltage: DC 1.8-5.5V Output Voltage: 3.3V Output Current: 2A Quiescent Current: 20uA@3.7V Ripple 75mv 3.7V@3.3V 0A 34mv 3.7V@3.3V 2A 5V Input Voltage: DC 1.8-5.5V Output Voltage: 5V Output Current: 1A Quiescent Current: 30uA@3.7V Ripple 90mv 3.7V@5V 0A 18mv 3.7V@5V 1A PCB dimensions: 10.4 x 7.9 mm Package include: Module*1 The merchant warrants that their products comply with all applicable laws, and are offered only if they comply with Joom's policies and EU Product Safety and Compliance laws.
