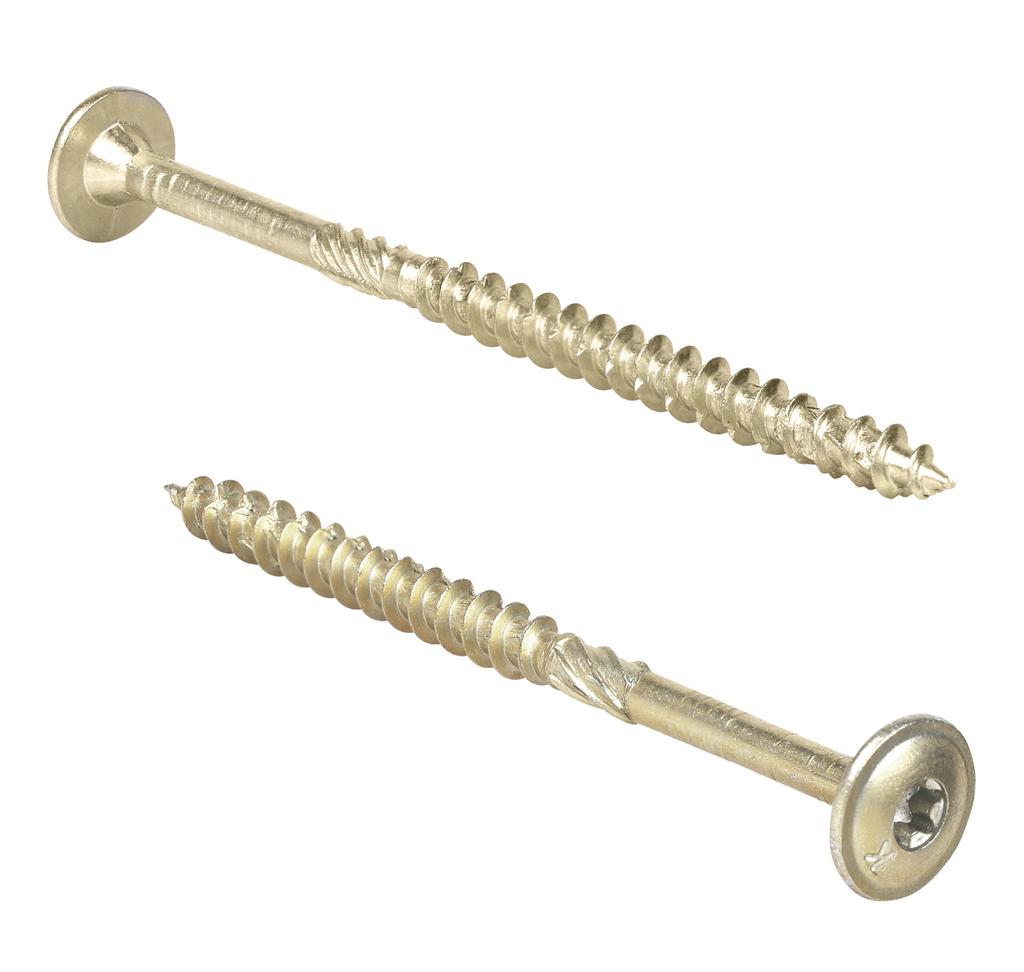

Carpentry screws with washer head WKCP-05080 (150)

Carpentry screws for wood, disc-shaped

5x80 mm, 150 pcs.

Construction screws made of galvanized steel have a washer head with a TX socket and a special drilling tip designed for connections in wooden structures.

The screws are used primarily for connections of structural elements made of solid wood, glued wood and wood-based panels in wooden structures.

The most important parameters

• Model: WKCP-05080

• Size: 5.0x80mm

• Maximum usable length:30mm

• Packaging: 150 pcs.

• Socket: TX-25

• Material: low-carbon galvanized steel

Original product of the renowned company KLIMAS Wkręt-Met ®

Features and benefits

1. Washer head with TX socket

Increases the pressure surface, ensuring high pull-through resistance. Guarantees optimal torque transfer.

2. Countersinking cutter

Reduces the torque required for screwdriving by widening the hole in the fastened element.

3. Milling tip/ cutting notches

The special shape of the milling tip means 20% less resistance when screwing, which extends the life of the battery and the tools themselves. Cutting notches on the thread cut the fibers of the wood structure during screwdriving.

4. Double thread

Additional threads on the tip facilitate screwing - they allow for faster "gripping" of the wood with less pressure.

5. High torque

Allows you to screw in screws without pre-drilling in hard types of wood.

6. Wax coating

Thanks to the special wax coating applied during the production process, the screwing torque is significantly reduced. This makes assembly faster, easier and reduces energy consumption in battery-powered tools.

New shape of the milling tip

The innovative change in the screw design is intended to further improve its assembly properties, in particular, easier initiation of screwing into the material and reduced resistance, thanks to which assembly is faster and the tools are less exploited.

➕ Less force required when starting and screwing in,

➕ Possibility to screw in longer screws with a weaker tool,

➕ Longer operating time of the battery-powered tool,

➕ Higher assembly speed.

Double thread - faster installation

Additional threads on the tip allow for quicker "gripping" of the wood during the first stage of screwing. This advantage is particularly important for connections where tightening the screw is difficult. Double thread allows us to achieve the same effect with much less clamping force.

Up to 20% less resistance when screwing

The new shape of the milling tip reduces resistance when screwing by up to 20%. This parameter is particularly important for those specialists who use cordless tools on a daily basis - it extends the battery life.

a.) Screwdriving resistance Nm,

b.) Anchorage depth,

1.) Old tip,

2.) New tip.

Up to 40% faster screwdriving time

In tests conducted before the product launch, we confirmed that the new shape of the screw tip reduces screwdriving time by up to 40% under the same load. Savings depend on the type of connection and the wood used.

1. Old tip

2. New tip

High strength parameters

The new tip for carpentry screws, designed in cooperation with contractors, facilitates installation and is characterized by high strength parameters such as: pull-out strength, shear strength, etc.

a.) Pull-out strength, kN

1.) Old tip,

2.) New tip.

Substrates and example applications

A. Solid timber

B. Glued solid timber

1. Connection of rafters to wall plate

2. Connection of beams at an angle

3. Installation of a post with a foundation anchor

4. Roof truss installation

These are just examples of applications.

The innovative design of the screws makes working with them a pure pleasure. They do not require pre-drilling. The deep and stable TORX socket effectively transfers torque without the bit popping out.

• [ dw ] outer thread diameter: Ø 5.0 mm

• [ d1 ] inner thread diameter: Ø 3.15 mm

• [ ds ] smooth part diameter: Ø 3.5 mm

• [ Dw ] head diameter: Ø 12 mm

• [ Lw ] screw length: 80 mm

• [ Lg ] minimum thread length: 50 mm

• [ t fix ] maximum usable length:30 mm

• Socket: TX-25

• number of pieces in the package: 150

• European Certificate ETA-18/0817 - a guarantee of the highest quality

• The screws were made in accordance with the standard PN-EN 1995:2014. This European Standard specifies the requirements and test methods for materials, geometry, strength, stiffness, and durability (i.e., corrosion protection) of fasteners used in load-bearing wooden structures.

The screws we offer are characterized by the highest quality and can be safely used in construction. We make every effort to ensure that the products delivered to our contractors are safe and adapted to specific tasks.

Video of product

https://youtu.be/hdrIzqSC1oM

(copy link and paste into browser window)

1. Before installation, select the appropriate screw length depending on the thickness of the elements being fastened and the minimum anchorage depth.

2. The wooden elements being connected should be free of defects (knots, cracks, discoloration, rot, mechanical damage), as this reduces their strength.

3. The screws should be installed using a screwdriver and an appropriate TX-type bit.

4. The screws can be screwed directly into the wooden substrate without pre-drilling holes or in pre-drilled holes, which reduces the risk of cracking small elements.

5. The diameter of the pre-drilled holes should not be larger than the internal diameter of the thread.

6. The minimum spacing between screws and the distance from the edge should be observed. (declaration of performance).

KLIMAS screws - the most common choice of professionals

You will find a full range of screw sizes in our other auctions.

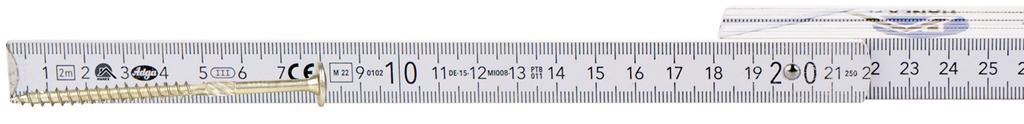

*The measuring tape and screwdriver are not included in the auction (they are only used for better presentation of the screws)
