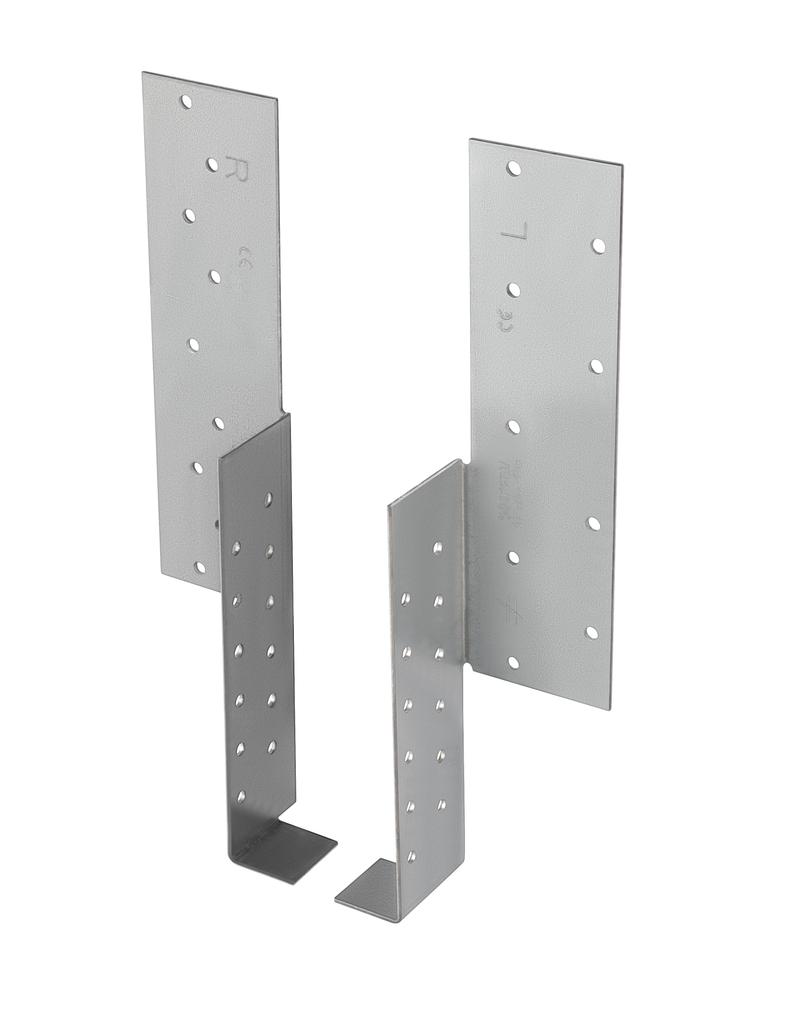

Rafter-purlin connector SFH-B 270mm (Pair) (1)

Rafter carpentry connector, rafter-purlin connector for transferring high expansion forces

The most important parameters

• Model: SFH

• Dimensions: 270 x 45 mm

• Sheet metal thickness: 2.0 mm

• Packaging: 1 set (1 pc left + 1 pc right connector.)

• Holes arm A: 9 pcs x Ø 5 mm

• Holes arm B: 12 ​​pcs. x Ø 5 mm

• Material: S250GD steel galvanized with 275 g/m2 (20 µm)

Original product of the renowned company SIMPSON Strong-Tie ®

A large number of nails mounted to the wall plate and rafters allows for very high load-bearing capacities (up to 100 kN), unattainable for other types of connectors.

1. Strong and durable connections

Thanks to the use of high-quality steel (S250GD steel) and the Sendzimir hot-dip galvanizing process, the connector guarantees reliable and durable connections.

2. Use class 2

It is characterized by a material moisture content corresponding to a temperature of 20°C and a relative humidity of the surrounding air exceeding 85% only for a few weeks a year. (e.g. open sheds or unheated attic)

Application and installation method

Rafter connectors are used to connect rafters or roof trusses to a purlin or wall plate after ensuring a suitable connection between the wall plate and the tie beam.

Guarantee of the highest quality. This standard specifies requirements and test methods for materials, geometry, strength, stiffness, and durability (i.e., corrosion protection).

The products we offer are of the highest quality and can be safely used in construction. We make every effort to ensure that the products we deliver to our customers are safe and suitable for specific tasks.

The auction is for a set: 1 pc left + 1 pc. right connector. Intended for connections: wood - wood Main element: solid wood, composite wood, glued laminated timber. Secondary element: solid wood, composite wood, glued laminated timber. Fixing to wood: using CNA 4.0 x ℓ system nails or alternatively CSA5.0 x ℓ system screws.
