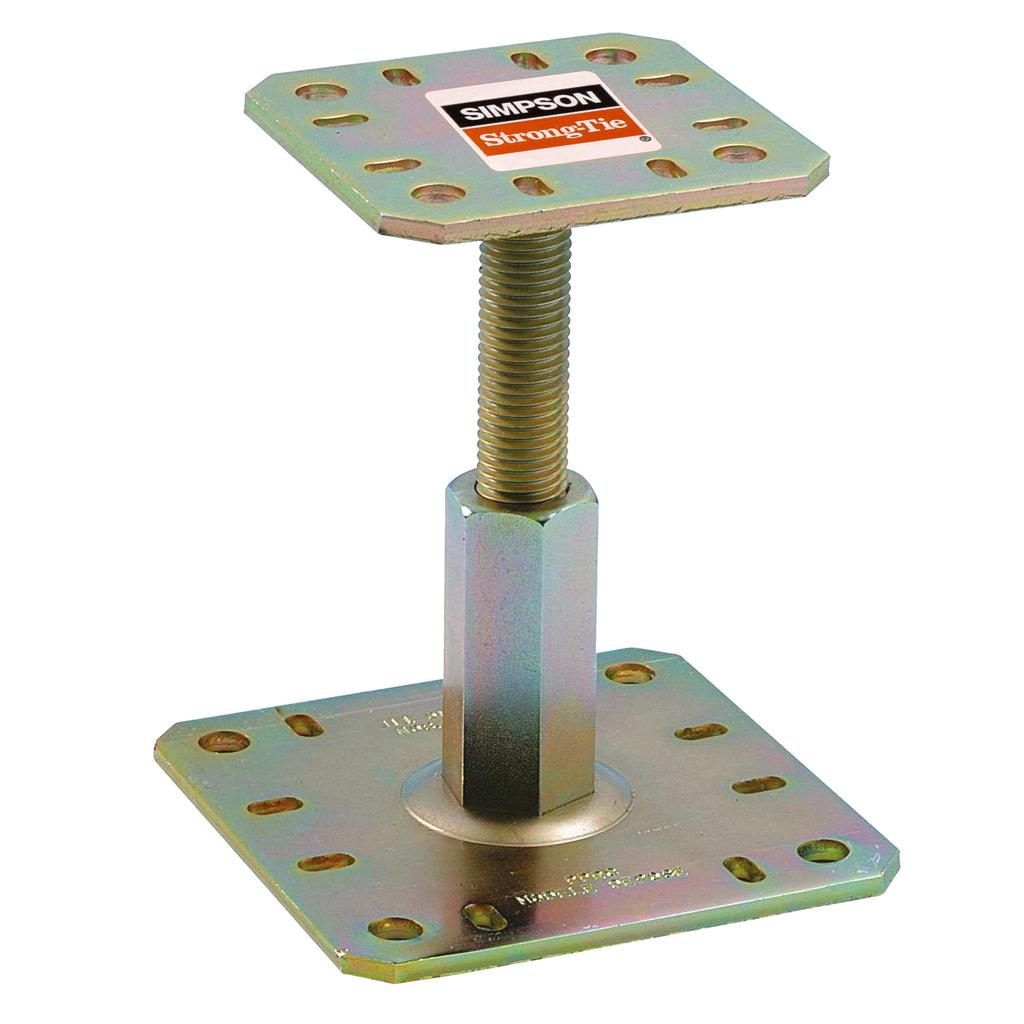

PPRC adjustable column base 100x130x100-150 (1)

Adjustable column base for anchoring

• Model: PPRC

• Upper base size: 100x100 mm

• Lower base size: 130x130mm

• Height: 100-150 mm

• Sheet thickness: 5.0 mm

• Holes upper base: 4 pcs. x Ø 12 mm, 8 pcs. x Ø 6x12 mm

• Holes lower base: 4 pcs. x Ø 12 mm, 8 pcs. x Ø 6x12 mm

• Packaging: 1 pc.

• Material: S235JR steel Electrolytically galvanized with passivation (Fe / Zn 12 / C) according to the NF EN ISO 2081 standard

Designed for stable anchoring of columns in ready-made foundations, offering easy adjustment height

Original product of the renowned company SIMPSON Strong-Tie ®

The new post base is a one-piece, non-welded joint suitable for various garden architecture applications.

1. Strong and durable connections

Thanks to the use of high-quality steel (S235JR steel), electrolytically galvanized with passivation, the connector ensures exceptional strength and durability of connections in a variety of wooden structures.

2. Height adjustment

The PPRC pole base offers convenient height adjustment, allowing you to precisely adapt the structure to the project's needs. Thanks to this feature, you can adjust the height of the pole support in wooden structures.

3. Usage class 2

It is characterized by a material moisture content corresponding to a temperature of 20°C and a relative humidity of the surrounding air exceeding 85% only for a few weeks a year. (e.g. open sheds or unheated attic)

Application and installation method

Used in wooden structures and roofs, pergolas, gazebos or terraces, and wherever it is necessary to adjust the height of the pole support.

Guarantee of the highest quality. This standard specifies requirements and test methods for materials, geometry, strength, stiffness, and durability (i.e. corrosion protection).

The products we offer are characterized by the highest quality and can be safely used in construction. We make every effort to ensure that the products delivered to our contractors are safe and adapted to specific tasks.

Connection: column - concrete Main element: concrete Secondary element: solid wood, composite wood, glued laminated wood. Fixing to wood: Ø10x80 carpentry screw Fixing to concrete: WA M10-78/5 expansion anchors or AT-HP chemical anchors with LMAS M10-120/25 threaded rod
