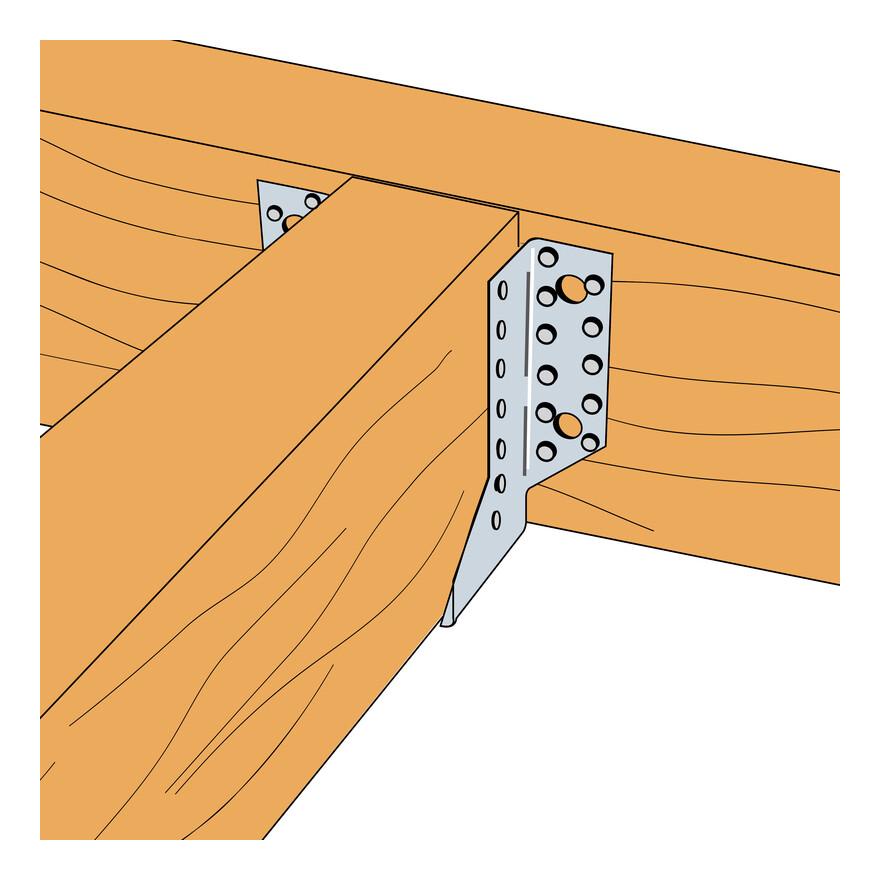

Split beam hanger 30x138x84x2mm right (1)

Two-piece beam hanger, divided

• Model: SDED340/30

• Mounting side: right

• Height: 138 mm

• Sheet thickness: 2.0 mm

• Packaging: 1 pc.

• Secondary beam dimensions: width 60-250 mm, height: 140-207 mm

• Holes main beam: 11 pcs. x Ø 5 mm, 2 pcs. x Ø 13 mm

• Holes secondary beam: 6 pcs. x Ø 5 mm

• Material: galvanized steel S250GD Z 275 g/m2 (20 µm)

Original product from a renowned company SIMPSON Strong-Tie ®

The two-piece hanger element allows it to be adapted to any wood cross-section.

1. High load capacity and durability

The SDE hanger is designed to withstand heavy loads. Thanks to its solid construction made of galvanized steel, it ensures a high load capacity, allowing for a safe and durable connection of structural elements.

2. Ease of installation

The SDE hanger has perforations that allow for precise placement of nails or screws. The two-piece construction allows for easier installation, especially in hard-to-reach places.

3. Versatile use

It can be used in various types of wooden structures, including connections between beams, rafters, and other load-bearing elements. The hanger can be mounted on both horizontal and vertical surfaces, which increases its versatility.

4. Service class 2

It is characterized by a material moisture content corresponding to a temperature of 20°C and a relative humidity of the surrounding air exceeding 85% only for a few weeks a year. (e.g. open sheds or unheated attic)

Application and installation method

Guarantee of the highest quality. This standard specifies requirements and test methods for materials, geometry, strength, stiffness, and durability (i.e., corrosion protection) of connectors used in load-bearing wooden structures.

The products we offer are characterized by the highest quality and can be safely used in construction. We make every effort to ensure that the products delivered to our contractors are safe and adapted to specific tasks.

Intended for connections: wood - wood, wood - concrete Note: Hangers are sold separately for each mounting side. Please select the appropriate side (left/right) or purchase a pair for a complete installation. Intended for connections: wood - wood, wood - concrete Main element: solid wood, composite wood, glued laminated timber, concrete. Secondary element: solid wood, composite wood, glued laminated timber. Hanger attachment to wood: using CNA4.0 ring-slot nails or CSA5.0 screws. Hanger attachment to concrete: using a Simpson Strong-Tie mechanical anchor (WA) or chemical anchor (AT-HP).
