Screws for sandwich panels with aluminum washer and EPDM gasket
Designed for fastening sandwich panels to solid materials such as wood, concrete, aerated concrete, brick.
*Installation in concrete, aerated concrete and brick is possible using the ULTRA expansion sleeve.
The most important parameters
• Model: GTR W SP A19

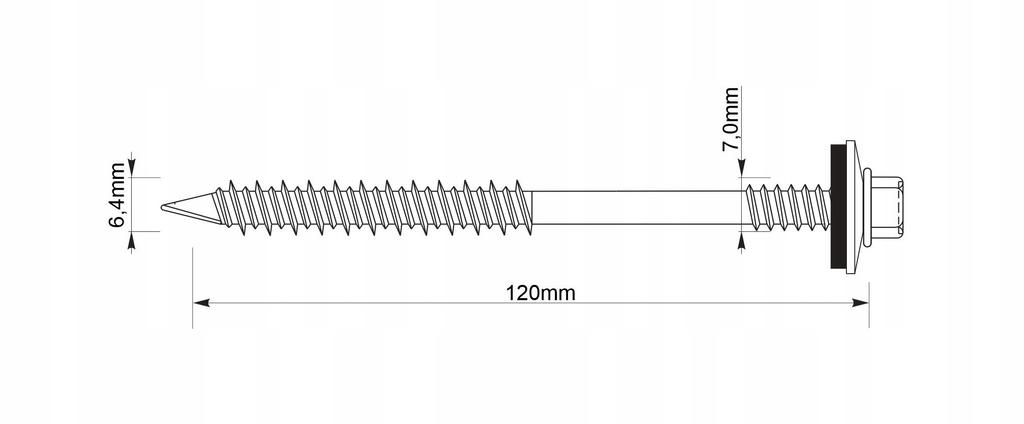

• Screw length:120 mm
• Thickness of boards that can be mounted:60-85 mm
• Drilling capacity in steel:up to 0.75 mm
• Socket: SW8
• Material: galvanized steel with gRey.coat coating.
• Corrosion class: C1-C4
• Color: GALVANIZED
• Packaging: 100 pcs.
Original Product of the Renowned Company Etanco®
Additional significant anti-corrosion protection and a perfect match to the RAL/NCS color. UV stabilizers ensure color consistency even after several years, and the modern Powder.coat powder coating technology ensures the durability of the coating during installation and a long service life.
2. EPDM washer
Made of the best sealing material - EPDM. It does not lose elasticity over time and has a very long aging period. Resistant to changing weather conditions and UV radiation. After installation, it self-vulcanizes to the sheet metal, creating a tight connection.
3. Hexagonal head with marking
The hexagonal head ensures easy and secure screw installation, which significantly simplifies work and increases installation efficiency. The distinctive marking of ETANCO products allows for easy identification; each production batch is assigned a unique number, enabling precise identification.
4. Thread under the screw head
The additional thread with an increased diameter ensures proper distribution of the EPDM washer on the thin cladding sheets of the sandwich panel.
5. GREY.COAT ceramic coating
Provides the highest protection against corrosion while maintaining excellent drillability. This allows them to be used in demanding conditions, such as a C4 corrosive environment.
6. Self-tapping tip (double thread)
Specially designed drilling point combined with the Hi-Lo thread enables direct installation in wood and concrete (in the case of concrete, a 5 mm diameter hole must first be made).
In combination with the ULTRA expansion sleeve, installation is possible in materials such as solid brick, ceramic brick, perforated brick, aerated concrete.
Designed for attaching sandwich panels to solid materials such as wood, concrete, aerated concrete, brick.
*Installation in concrete, aerated concrete and brick possible using the ULTRA expansion sleeve.
1. Substrate material: wood
2. Substrate material: concrete
3. Screw socket: SW8
4. Maximum drilling capacity: 0.75 mm
5. Anti-corrosion coating type: gRey.coat (corrosion environment C1-C4)
8. Tightening torque: 5 Nm
9. Recommended rotational speed during screw installation: 1000 rpm
10. Thickness range of boards used wooden substrate: 60-85 mm
11. Thickness range of used boards concrete substrate: 60-85 mm
12. The product requires preliminary drilling with a diameter of: 5 mm
GRAY.COAT ceramic coating
A. baked ceramic top coating, approx. 5 μm
B. chemical film, 1 μm
C. zinc layer, 4 μm
D. steel DIN 1.1133
All our products have current reference documents developed in cooperation with renowned research institutes.
The products we offer are characterized by the highest quality and can be safely used in construction. We make every effort to ensure that the products delivered to our contractors are safe and adapted to specific tasks.
The auction is for screws in GALVANIZED color.
Other colors and sizes are available in our other auctions.
*Due to different monitor settings, colors may differ from reality, therefore the presented colors are indicative.
*The measuring cup is not included in the set and is only used for better product presentation.
Enables the use of fasteners in environments with an atmosphere corrosivity class: C1, C2, C3, C4 according to PN-EN ISO 12944-2:2001
