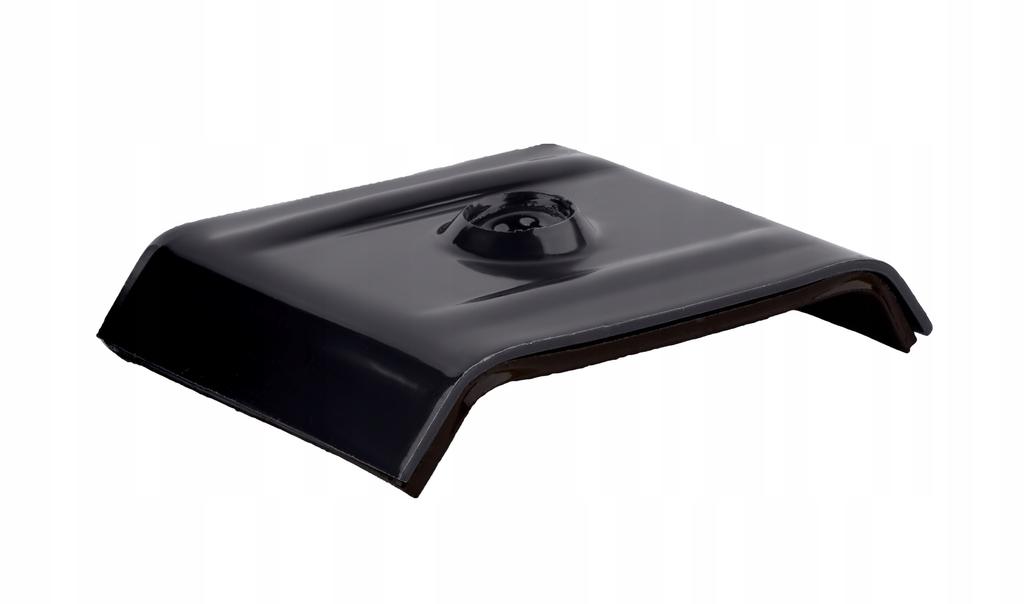

Saddles 40mm RAL 7016

Calots, aluminum washers for sandwich panels with a wave width of 40 mm

• Material: aluminum and EPDM gasket

• Color: 7016

• Packaging: 100 pcs.

Designed for fastening sandwich panels using GTR SP screws. Saddle washers increase the load-bearing capacity and tightness of the connection thanks to a larger contact surface with the sandwich panel cladding.

The most important parameters

• Model: PKAL4132R7016

• Wave width:40 mm

• Length: 40 mm

• Opening angle: 38°

• Color: 7016

• Packaging: 100 pcs.

Original product of the renowned company Etanco®

1. Load-bearing capacity and tightness of the connection

Stable fastening of sandwich panels and at the same time tightness of the connection, which can increase the durability and resistance of the structure to weather conditions.

2. Compatibility with screws

The product is designed for fastening sandwich panels using specialized screws for sandwich panels with a diameter of 6.3 mm, thus ensuring a fit to the structure.

3. Material and workmanship

Aluminum as a construction material ensures corrosion resistance and durability, and EPDM as a gasket guarantees excellent sealing properties and flexibility. This ensures a perfect fit, tightness and long service life.

Intended for for fastening sandwich panels using GTR SP screws. Saddle washers increase the load-bearing capacity and tightness of the connection thanks to a larger contact surface with the sandwich panel facing.

All our products have current reference documents developed in cooperation with renowned research institutes.

The products we offer are of the highest quality and can be safely used in construction. We make every effort to ensure that the products delivered to our contractors are safe and adapted to specific tasks.

The auction concerns saddlebags in color 7016.

Other colors and sizes are available in our other auctions.

*Due to different monitor settings, colors may differ from reality, therefore the presented colors are indicative.

(manufacturer - board type)

• Ondatherm 1001 T - matching calotte 26 mm

• Promisol 1040 TS - matching calotte 26 mm mm

• Alubel 28 - matching cap 40 mm

• Alubel 40 - matching cap 40 mm

• AIutech Dak - matching cap 26 mm

• Aluform 20/125 - matching cap 40 mm

• Aluform 45/150 - matching cap 26 mm

• AI utherm Dt 900 - matching cap 26 mm

• 39/333T - matching cap 26 mm

• AL 45/150 - matching cap 26 mm

• Ondatherrn 1001 TS - matching cap 26 mm

• Ondafibre 3005T - matching 26 mm cap

• Agratherm 1001 TS - matching 26 mm cap

• 20/125 - matching 40 mm cap

• 35/207 - matching 40 mm cap

• 8/307 - matching 40 mm cap

• 89/305 - matching 40 mm cap

• DACHOWA ALAMENTTI - matching 40 mm cap

• DACHOWA EPS d - matching 40 mm cap

• PWD - matching 26 mm cap mm

• BALEXTHERM PU-R - matching cap 26 mm

• 20-35 - matching cap 40 mm

• 20-65 - matching cap 26 mm

• 20-100 - matching cap 26 mm

• 35-115 - matching cap 40 mm

• 20-115 - matching cap 26 mm

• 35-190 - matching cap 40 mm

• 35-206 - matching cap 40 mm

• 22-270 - matching cap 26 mm

• 35/207 - matching 40 mm cap

• 85/280 - matching 40 mm cap

• DL 70; 80; 100; 120; 140; 160 - matching cap 40 mm

• GORLICKA D 1000 - matching cap 40 mm

GORLICKA D 1000 GS-PIR - matching cap 40 mm

• 35-207 - matching cap 40 mm

• JI 45.333.1000 - matching cap 26 mm

JI Roof 1000 - matching cap 26 mm

• KS 1000 FF - matching cap 30 mm

• KAS AL. - 20/125 A - matching cap 40 mm

• KAS AL.- 30/153 A - matching cap 26 mm

• KAS- 35/207 - matching cap 40 mm

• KAS - 89/305 - matching cap 40 mm

• KAS- D 80 - matching cap 40 mm

• 35-207 - matching cap 40 mm

• 45-333 S - matching cap 26 mm

• LP35 - matching cap 40 mm

• LM40 250 1000 - matching 26 mm cap

• 35-207 - matching 40 mm cap

• 45-150 - matching 26 mm cap

• 45-333 S - matching 26 mm cap

• PGB TD5 - matching 26 mm cap

• SP 35 - matching cap 40 mm

• SP 45 - matching cap 40 mm

• M 40K D/333 - matching cap 26 mm

• 20.125/8 - matching cap 40 mm

• 40.250/4 - matching cap 26 mm

• 45.150/6 - matching cap 26 mm

• 45.333/3 - matching cap 26 mm

• PLANNJA 35 - matching cap 40 mm

• PWW-D - matching cap 26 mm

• PW-PUR-D - matching cap 26 mm

• 26/143 - matching cap 40 mm

• 45/150 - matching cap 40 mm

• 90/305 - matching cap 40 mm

• PIRTECH - matching cap 40 mm

• PWD-S - matching cap 26 mm

• PWD-W - matching cap 26 mm

• SP2C PUR - matching cap 40 mm

• SP2C PIR - matching cap 40 mm

• SPC W - matching cap 40 mm

• 35R/1035 - matching cap 40 mm

• 89R/915 - matching cap 40 mm

• PS 35/207 - matching cap 40 mm

• SIP D - matching cap 40 mm

• 35-207 - matching cap 40 mm

• 20-125 - matching cap 40 mm

• 30-153 - matching cap 26 mm

• 40/333 - suitable cap 26 mm

• 85/280 - suitable cap 40 mm

ThyssenKrupp Steel Europe AG

• Hoesh Thermodach - suitable cap 40 mm

• T 85.1 - suitable cap 40 mm

• SNV - suitable cap 26 mm

Friedrich von Lien AG

• W35-1035 - suitable cap 40 mm

Wurzer Profiliertechnik GmbH

• WU 20/125 - suitable cap 40 mm

• WU 35/207 - matching 40 mm cap

• WU 45/333 - matching 26 mm cap

• WU 80/307 - matching 40 mm cap
