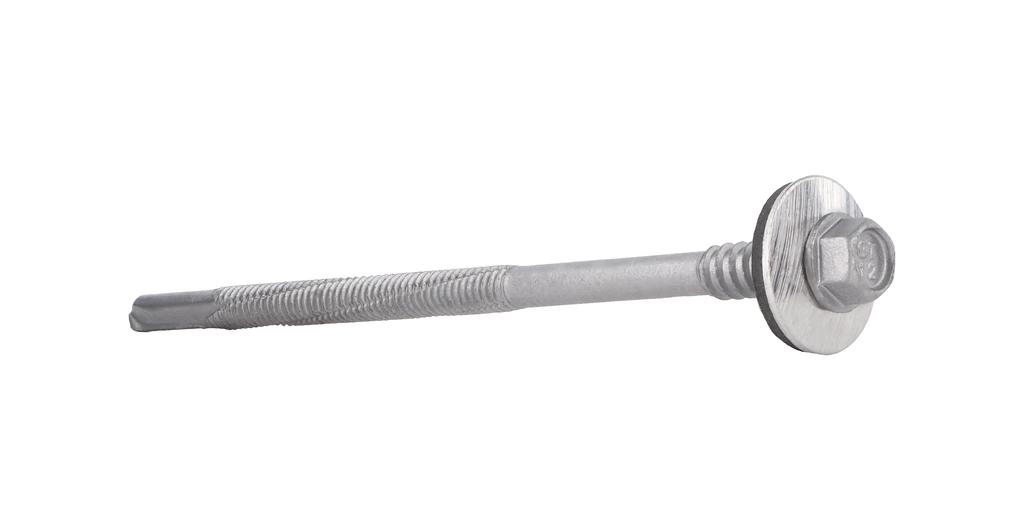

Screws for sandwich panels with aluminum washer and EPDM gasket
Designed for fastening sandwich panels to steel structures up to 12 mm thick
The most important parameters
• Model: GTR 12 SP A19
• Screw length: 200 mm
• Thickness of plates that can be mounted: 125-160 mm
• Drilling capacity in steel: up to 12 mm
• Socket: SW8
• Material: galvanized steel with a coating gRey.coat.
• Corrosion class: C1-C4
• Color: GALVANIZING
• Package: 100 pcs
Original Product of a Reputable Company Etanco®
Additional significant anti-corrosion protection and a perfect match to the RAL/NCS color. UV stabilizers ensure color consistency even after several years, and the modern Powder.coat powder coating technology ensures the coating's durability during installation and a long service life.
2. EPDM washer
Made of the best sealing material - EPDM. It does not lose elasticity over time and has a very long aging period. Resistant to changing weather conditions and UV radiation. After installation, it self-vulcanizes to the sheet metal, creating a tight connection.
3. Hexagonal head with marking
The hexagonal head ensures easy and secure screw installation, which significantly simplifies work and increases installation efficiency. The distinctive marking of ETANCO products allows for easy identification; each production batch receives a unique number, enabling precise identification.
4. Thread under the screw head
The additional thread with an increased diameter ensures proper distribution of the EPDM washer on the thin cladding sheets of the sandwich panel.
5. GREY.COAT ceramic coating
Provides the highest protection against corrosion while maintaining excellent drilling ability. This allows them to be used in demanding conditions, such as a class C4 corrosive environment.
6. Self-drilling tip
Significantly improves the installation process by eliminating the need for pre-drilling holes. GTR 12 screws can handle steel up to 12mm thick.
• for steel structures up to 12 mm thick
1. Substrate material: steel profile
2. Screw socket: SW8
3. Maximum drilling capacity: 12 mm
4. Anti-corrosion coating type: gRey.coat (corrosion environment C1-C4)
7. Tightening torque: 5 Nm
8. Recommended rotational speed during screw installation: 1500 rpm
9. Thickness range of used boards: 125-160 mm
10. Minimum thickness of steel substrate: 3 mm
GRAY.COAT ceramic coating
A. baked ceramic top coating, approx. 5 μm
B. chemical film, 1 μm
C. zinc layer, 4 μm
D. steel DIN 1.1133
All our products have current reference documents developed in cooperation with renowned research institutes.
The products we offer are characterized by the highest quality and can be safely used in construction. We make every effort to ensure that the products delivered to our contractors are safe and adapted to specific tasks.
The auction applies to screws in the color GALVANIZED.
Other colors and sizes are available in our other auctions.
*Due to different monitor settings, colors may differ from reality, therefore the presented colors are indicative.
*The measuring cup is not included in the set and is only used for better product presentation.
Allows the use of fasteners in environments with an atmosphere corrosivity class: C1, C2, C3, C4 according to the PN-EN ISO 12944-2:2001 standard
