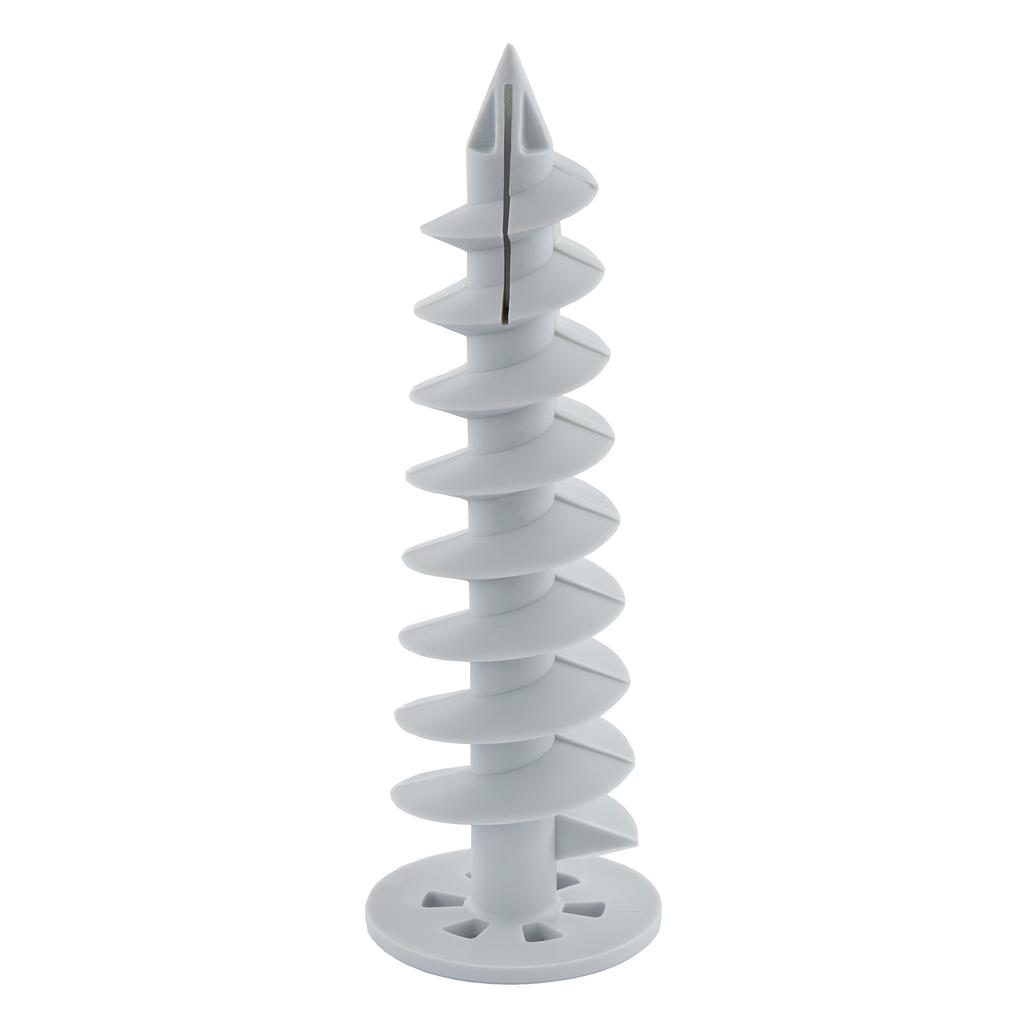

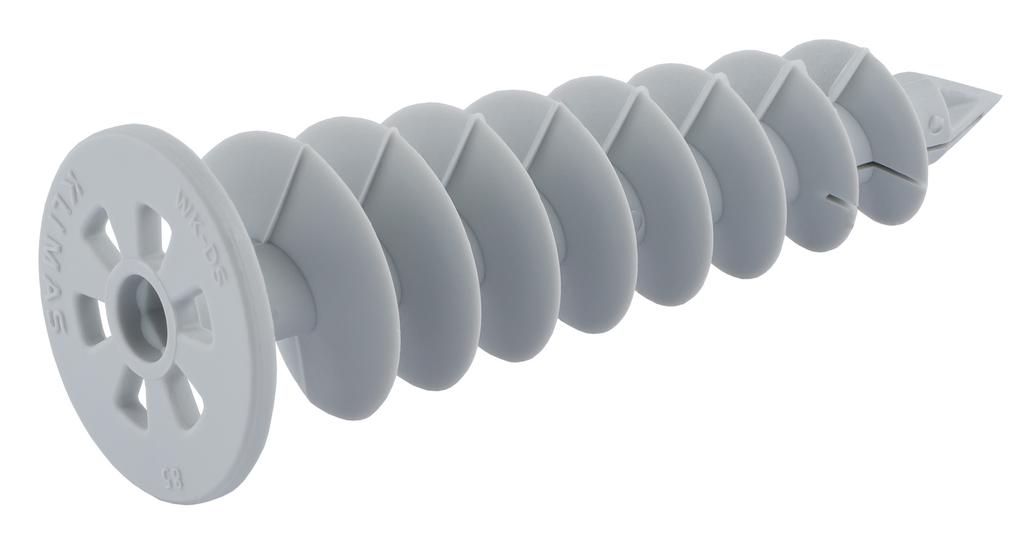

Plastic spiral screws for mounting in polystyrene
28x85 mm, 10 pcs.
Made of high-quality polyamide, which guarantees resistance to changing weather conditions.
They are designed for fastening lightweight non-structural elements (max. up to 5 kg/pc.) to wall facades made of polystyrene. Recommended for mounting elements such as: signs, house numbers, mailboxes, lighting elements, motion sensors, etc.
The most important parameters
• Model: WK-DS085
• Plate diameter (head): 28 mm
• Connector length: 85 mm
• Quantity in the package: 10 pcs.
• Socket type: TORX-30
• Material: polyamide
• Compatible with screws with a diameter of: 4.5 mm
Original product of the renowned company KLIMASWkręt-Met ®
Features and benefits
1. Screw-in connectors allow to maintain thermal insulation continuity at the mounting point, eliminating thermal bridges. The connectors are made of high-quality polyamide, which guarantees resistance to changing weather conditions.
2. The connectors are mounted with a 4.5 mm diameter screw. The fasteners are not intended for structural fastenings or fastenings exposed to significant dynamic forces (shutters, blinds, window awnings, etc.).
Substrate and example applications
Designed for fastening light non-structural elements (max. up to 5 kg/pc.) to wall facades made of polystyrene.
• wall flashings,
• house numbers,
• lighting elements,
• motion sensors, etc.
The fasteners are not intended for structural fastenings or fastenings exposed to significant dynamic forces. (shutters, blinds, window awnings, etc.).
Screw-in fasteners ensure thermal insulation continuity at the attachment point, eliminating thermal bridges. The fasteners are made of high-quality polyamide, ensuring resistance to changing weather conditions.
• plate (head) diameter: 28 mm
• Connector length: 85 mm
• Quantity in the package: 10 pcs.
• Socket type: TORX-30
• Material: Polyamide
• Compatible with screws with a diameter of:4.5 mm
• Before installation, mark the mounting locations of the fasteners on the façade.
• It is recommended to use two mounting methods:
• Screw the fastener into the thermal insulation layer before applying the adhesive layer and the reinforcing layer (mesh).
• Drill holes in the applied adhesive layer with the reinforcing layer (mesh) and the structure layer (plaster) using a concrete drill, then screw the fastener into the thermal insulation layer.
• The fastener should be screwed in using a screwdriver and a TORX-30 bit.
• Into the fastener thus installed, screw in a Ø 4.5 mm screw (not included in the kit). set) by attaching the element to the facade.
KLIMAS screws - the most common choice of professionals
*The measuring tape and the steel screw are not included in the set, they are only for better product presentation.
