WKSS-60110-B spacer screws (100)

Spacer screws for leveling battens with TORX socket

6x110 mm, 100 pcs.

The screws are made of galvanized steel and have a countersunk head and a TORX socket.

The screws are primarily used for leveling structural battens, suspended ceiling surfaces and floors, as well as for plumb wall structures under facades.

The most important parameters

• Model: WKSS-60110-B

• Size: 6.0x110 mm

• Maximum usable length:50 mm

• Packaging: 100 pcs.

• Socket: TX-30

• Material: carbon steel, galvanized

Original product of the renowned company KLIMAS Wkręt-Met ®

Features and benefits

1. Countersunk head with TX socket

Ensures proper countersink in the fastened element. The TX socket guarantees optimal torque transfer.

2. Cutting projections

Ensures full head countersink in the fastened element - flush with the material.

3. Support thread

The special asymmetric thread shape allows for easy leveling of the fastened element.

4. Milling Tip/Cutting Notches

The special shape of the milling tip provides 20% less resistance when screwing, extending the life of the battery and the tools themselves. Cutting notches on the thread cut the fibers of the wood structure during screwing.

5. Double Thread

Additional coils on the tip facilitate screwing - they allow you to "grab" the wood with less pressure.

6. High Torque

Allows you to drive screws without pre-drilling, even in hard types of wood.

7. Wax Coating

Thanks to the special wax coating applied during the manufacturing process, the screwing torque is significantly reduced. This makes installation faster, easier, and reduces energy consumption, which is particularly important in battery-powered tools.

The screw's design significantly accelerates work efficiency.

The screws have two different shank profiling zones. The first is a classic sharp wood thread with a sharp tip, the second is special rings that hold the attached element, allowing you to adjust the differences in distance between the elements.

Leveling battens using WKSS Klimas Wkręt-met screws significantly reduces work time and guarantees a strong connection. This solution will be appreciated by professionals who value speed and comfort of work.

Substrates and sample applications

A. Solid wood

B. Glued solid wood (CLT, KVH, BSH/GLT, LVL)

1. Leveling battens

2. Leveling ceiling surfaces

3. Leveling external facades

These are only example applications.

They are most often used for leveling roof battens as an alternative to traditional screws/nails and wedges.

Wedges once commonly used in combination with traditional screws or nails are less precise, and leveling takes significantly more time. A significant disadvantage of wooden wedges is that they dry out and, over time, fall out, leading to a loss of structural stability, also known as floating.

The new solution, spacer screws, meets the needs of contractors and solves the problems of previous solutions. These products are ideal for both new roofing and renovations of old roofs, where structural elements can be reused.

While a properly constructed new structure generally has no irregularities or requires only minor corrections, the use of spacer screws is extremely helpful in renovation processes.

• solid wood,

• glued laminated timber CLT, KVH, BSH/GLT or LVL.

• [ dw ] outer thread diameter: Ø 6.0 mm

• [ d1 ] inner thread diameter: Ø 3.9 mm

• [ ds ] smooth part diameter: Ø 4.3 mm

• [ Dw ] head diameter: Ø 12 mm

• [ Lw ] screw length: 110 mm

• [ Lg ] minimum thread length: 60 mm

• [ t fix ] maximum length Usable diameter:50 mm

• Socket: TX-30

• Quantity in package: 100 pcs.

• Material: carbon steel, galvanized (zinc layer thickness is at least 5 μm)

• Reaction to fire: Class A1

• European Technical Assessment ETA-18/0817

The screws we offer are characterized by the highest quality and can be safely used in construction. We make every effort to ensure that the products delivered to our contractors are safe and adapted to specific tasks.

https://youtu.be/mm57nzJR6Io

(copy the link and paste in browser window)

1. Insert the structural screw.

2. Screw the screw in fully.

3. Loosen the screw to obtain a gap.

4. Adjust the remaining screws.

5. Example of incorrect installation.

6. Example of correct installation.

• Before starting the installation, select the appropriate length of the screws depending on the thickness of the elements being fastened and the minimum anchorage depth.

• The wooden elements being connected should be free from defects (knots, cracks, discoloration, rot, structural and shape defects, mechanical damage), as this reduces their strength.

• The screws should be installed using a screwdriver and a suitable bit for the socket type TX.

• Screws should be screwed directly into the wooden substrate without drilling holes first.

KLIMAS screws - the most common choice of professionals

At our other auctions you will find a full range of leveling screws.

• 6x60 mm

• 6x70 mm

• 6x80 mm

• 6x90 mm

• 6x100 mm

• 6x110 mm

• 6x120 mm

• 6x130 mm

• 6x145 mm

• 6x160 mm

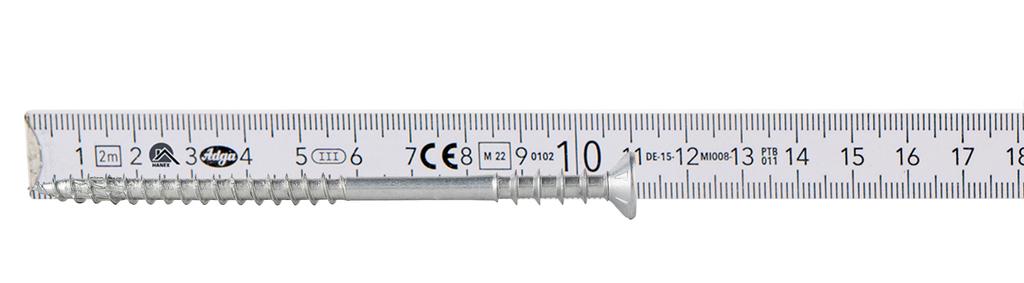

*measuring tape is not included in the set (it is only used for better presentation of screws)
