Universal pegs with hook SFXL-08040065 (25)

Universal expansion plugs with hook

8x40 mm 25 pcs.

Consists of a polyamide sleeve and a galvanized steel screw with a straight hook.

Designed for mounting lightweight interior finishing elements and lightweight installation elements in all building substrates.

The most important parameters

• Model: SFXL-08040065

• Pin size: 8.0x40 mm

• Hook size: 4.5x65 mm

• Packaging: 25 pcs

• Pin material: polyamide (nylon)

• Hook material: galvanized steel

• plastic element - sleeve

• connector - steel hook

Original product of the renowned company KLIMAS Wkręt-Met ®

Features and Benefits

1. Enlarged diameter of the plug sleeve

The enlarged diameter of the sleeve collar ensures firm support on the ground.

2. Unique shape of the sleeve

The unique shape of the sleeve is suitable for all types of surfaces, making the plug very universal.

3. Stabilizing "Protrusions"

The shape of the sleeve causes the material to loop and provides secure anchoring on the opposite side of the thin-walled substrate.

4. Reduced initial diameter of the plug

Reducing the initial diameter of the plug significantly facilitates inserting the sleeve into the hole.

2. Solid ceramic brick

3. Perforated ceramic brick

4. Silicate brick hollow

5. Aerated concrete

6. Gypsum board, 2xGypsum boards

7. Fiber-cement board

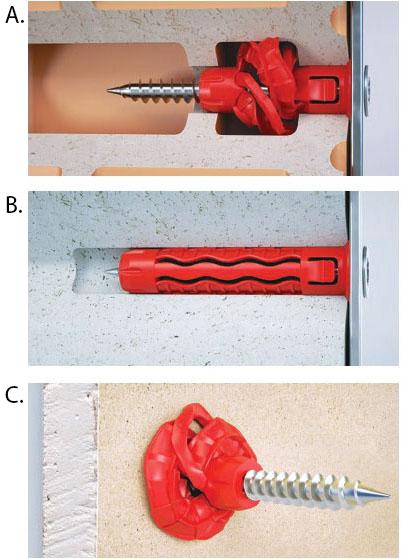

A. Substrates with hollow blocks (e.g. ceramic blocks)

B. Solid substrates

C. Plasterboards, OSB boards

1. Installation of hanging elements in natural stone substrates

2. Installation of hanging elements

3. Mounting home furnishings

4. Mounting lighting elements

These are only example applications.

• Pin diameter [dk]: Ø 8.0 mm

• Pin length [Lk]:40mm

• Hook diameter [dw]: Ø 4.5 mm

• Hook length [Lw]:65 mm

• number of pieces in the package: 50

• plug material: polyamide (nylon)

• hook material: galvanized steel

• installation type: pre-installation

• substrate: concrete, solid brick, perforated ceramic brick, aerated concrete, plasterboard, cement board

• National Rating Technical- ITB-KOT-2021/1847 1st edition

The dowels we offer are of the highest quality and can be safely used in construction. We make every effort to ensure that the products delivered to our contractors are safe and adapted to specific tasks.

https://youtu.be/zeni9EoQpvc?si=q_jdXw3ah9606kXl

(copy link and paste into browser window)

The way assembly

• Before Before performing the installation, the substrate in which the connector will be installed should be identified and the loads that the connector will transfer should be compared with the load-bearing capacities specified in the National Technical Assessment.

• The appropriate length of the connector (screw + sleeve) should be selected, depending on the thickness of the elements being fastened.

• The drilling method is supervised (holes in masonry substrates made of perforated elements or aerated concrete should be drilled with a rotary drill without impact).

• The diameter of the drilled holes should be consistent with the diameter of the connectors used.

• Holes in substrates made of solid materials should be approximately 10 mm deeper than the anchorage depth of the connector.

• Holes in solid materials should be cleaned of drilling dust by using a reciprocating drill at reduced speed.

• Then a plastic sleeve is inserted into the hole and the screw is screwed in until it penetrates the T-shirt (preliminary assembly).

KLIMAS pegs - the most common choice of professionals

*the measuring tape is not part of the auction (it is only used for better presentation of the screws)
