Universal dowels conical screw SFXP-10060080 (50)

Universal expansion plugs

10x60/80 mm 50 pcs.

Consists of a polyamide sleeve and a galvanized steel screw with a conical head and a PZ-3 socket.

Designed for mounting lightweight interior finishing elements and lightweight installation elements in all building substrates.

The most important parameters

• Model: SFXP-10060080

• Plug size:10.0x60 mm

• Screw size:6.0x80 mm

• Packaging:50 pcs.

• Maximum usable length:20 mm

• Socket:PZ-3

• Plug material:polyamide (nylon)

• Screw material:galvanized steel

• plastic element- shirt,

• connector - steel screw.

Original Product of the Renowned Company KLIMAS Wkręt-Met ®

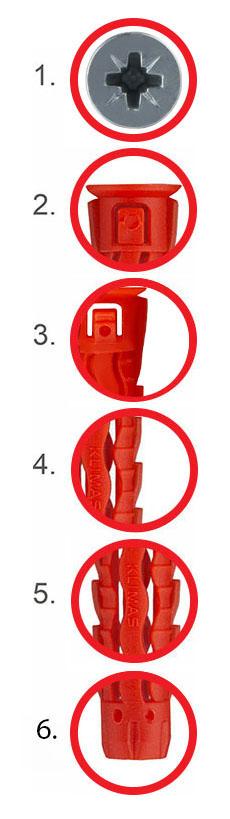

Features and benefits

1. Galvanized conical head with PZ socket

Galvanization guarantees exceptional corrosion resistance, thus maintaining its durability, and the conical head enables full flushness with the surface of the fastened element.

2. Enlarged collar diameter

Ensures a firm grip of the sleeve on the ground - the product is more stable and less susceptible to movement during use.

3. Stabilizing "fins"

4. Stabilizing "lugs"

Allows for even better stabilization of the sleeve, which is crucial in applications where durability is a priority.

5. The unique shape of the sleeve

Guarantees a "knot" effect, which increases the pressure surface in empty spaces. This allows the product to perform its function perfectly and ensure a solid connection.

6. Smaller initial diameter of the sleeve

Its smaller initial diameter is an innovative solution that significantly simplifies the installation process in the hole. This allows for faster and more efficient product insertion.

2. Ceramic brick solid

3. Perforated ceramic brick

4. Hollow silicate brick

5. Aerated concrete

6. Gypsum board, 2xGypsum boards

7. Fibre-cement boardA. Substrates with hollow blocks (e.g. ceramic blocks)B. Solid substratesC. Plasterboards, OSB boards

1. Installation of design elements in gypsum board substrates.

2. Installation of decorative elements in OSB board substrates.

3. Installation of monitoring elements on brick walls.

4. Installation of apartment finishing elements in mixed substrates.

These are only sample applications.

The innovative design of the wheel sleeve ensures versatile use - it can be safely used in any type of substrate.

Specification Product Details

• Plug diameter [dk]: Ø 10.0 mm

• Plug length [Lk]: 60mm

• Screw diameter [dw]: Ø 6.0 mm

• Screw length [Lw]: 80mm

• Max. usable length [tfix]: 20mm

• Socket: PZ-3

• Number of pieces in the package: 50

• Plug material: polyamide (nylon)

• Screw material: galvanized steel

• Mounting type: pre-assembly

• substrate: concrete, solid brick, perforated ceramic brick, aerated concrete, plasterboard, cement board

• National Technical Assessment - ITB-KOT-2021/1847 issue 1

The plugs we offer are characterized by the highest quality and can be safely used in construction. We make every effort to ensure that the products delivered to our contractors are safe and adapted to specific tasks.

https://youtu.be/zeni9EoQpvc?si=q_jdXw3ah9606kXl

(copy link and paste into browser window)

• Before installation, identify the substrate in which the connector will be installed and compare the loads that the connector will transfer with the load-bearing capacities specified in the National Technical Assessment.

• Select the appropriate length of the connector (screw + sleeve), depending on the thickness of the fasteners to be installed. elements.

• The drilling method is monitored (holes in masonry substrates made of perforated elements or aerated concrete should be drilled with a rotary drill without impact).

• The diameter of the drilled holes should match the diameter of the fasteners used.

• Holes in solid materials should be approximately 10 mm deeper than the fastener anchorage depth.

• Holes in solid materials should be cleaned of drill cuttings by using a reciprocating drill motion at reduced speed.

• Next, a plastic sleeve is inserted into the hole, and the screw is screwed in through the fastener until it penetrates the sleeve (pre-assembly).

KLIMAS dowels - the most common choice of professionals

*the measuring tape is not part of the auction (it is only used for better presentation of the screws)
