THERMAL IMAGING CAMERA PRO -20 +550 USBC PC CONNECTION LCD 2.8" ALARM 9h OPERATION

✅ PROFESSIONAL THERMAL IMAGING CAMERA

✅ Mileseey TR10

Compact thermal imaging camera rich in numerous functions, a wide selection of color palettes, a large and clear 2.8-inch screen with a resolution of 192 by 192 pixels ensures comfortable work, high-quality images with clear details.

• Measurement range from -20℃ to 550℃ and a wide field of view of 50° x 50°.

• Fast and accurate measurement temperature.

• Alarm with light signal that activates when any set temperature ranges are exceeded.

✅ FEATURES AND FUNCTIONS CAMERAS:

1. Tracking low and high temperature values.

2. Adjustable emissivity coefficient.

3. PC software for data analysis.

4. Alarm/warning for low and high temperature.

5. Function for automatic indication of hot and cold spots.

6. Automatic data saving function.

7. Data saving on the included micro SD card.

8. Convenient and functional USB type C connector.

9. Capacity and durable battery (up to 9 hours of continuous operation)

10. Wide temperature range from -20 to 550 degrees Celsius.

11. Dedicated computer application allows for further data analysis in real time, as well as offline after exporting the data to a computer.

12. Certificates and Patents: the device meets CE, FDA, FCC standards and a number of other standards and is patented.

✅ RICH COLOR PALETTE:

8 variants to choose from allows you to adjust colors and ranges to your needs. In the color palette you will find the following variants:

• White hot

• Black hot

• Red hot

• Blue hot

• Green hot

✅ COMFORT OF CAMERA USE

Fast and convenient charging and data transmission via the included USB Type-C cable.

The large and durable built-in battery provides excellent operating time of up to 9 hours (depending on the settings).

✅ PC SOFTWARE

It allows, among other things, sharing the image from the camera to the computer screen in real time. In addition to the image, dedicated software displays other parameters of the image captured by the camera: maximum and minimum temperature, distance to the object, emissivity, and temperature range.

It also allows for analysis and export of the collected data.

✅ SOLID AND DURABLE CONSTRUCTION

The device has a skeleton structure, the soft-touch housing provides pleasant comfort in everyday use of the device.

✅IP54 INSULATION CLASS

Resistant to drops falling at any angle from all sides (rain) and dustproof.

✅ THERMAL IMAGING CAMERA TECHNICAL SPECIFICATIONS:

• Model: TR10

• Temperature range: -20℃ ～ 550℃ (4℉～1022℉)

• Optical resolution: 192 x 192

• Accuracy: ±3℃

• Thermal sensitivity: ≤50mK

• Screen size: 2.8 inches

• Refresh rate: <25 Hz

• Field of view: 50°/ 50°

• Focal length: 1.35 mm

• Hot / cold spot alarm: yes

• Available color palettes: 8 variants

• Memory: 8G micro SD card

• Photo format: JPEG

• Power supply: reusable lithium battery (up to 9 hours of continuous operation)

• Ingress protection class: IP54

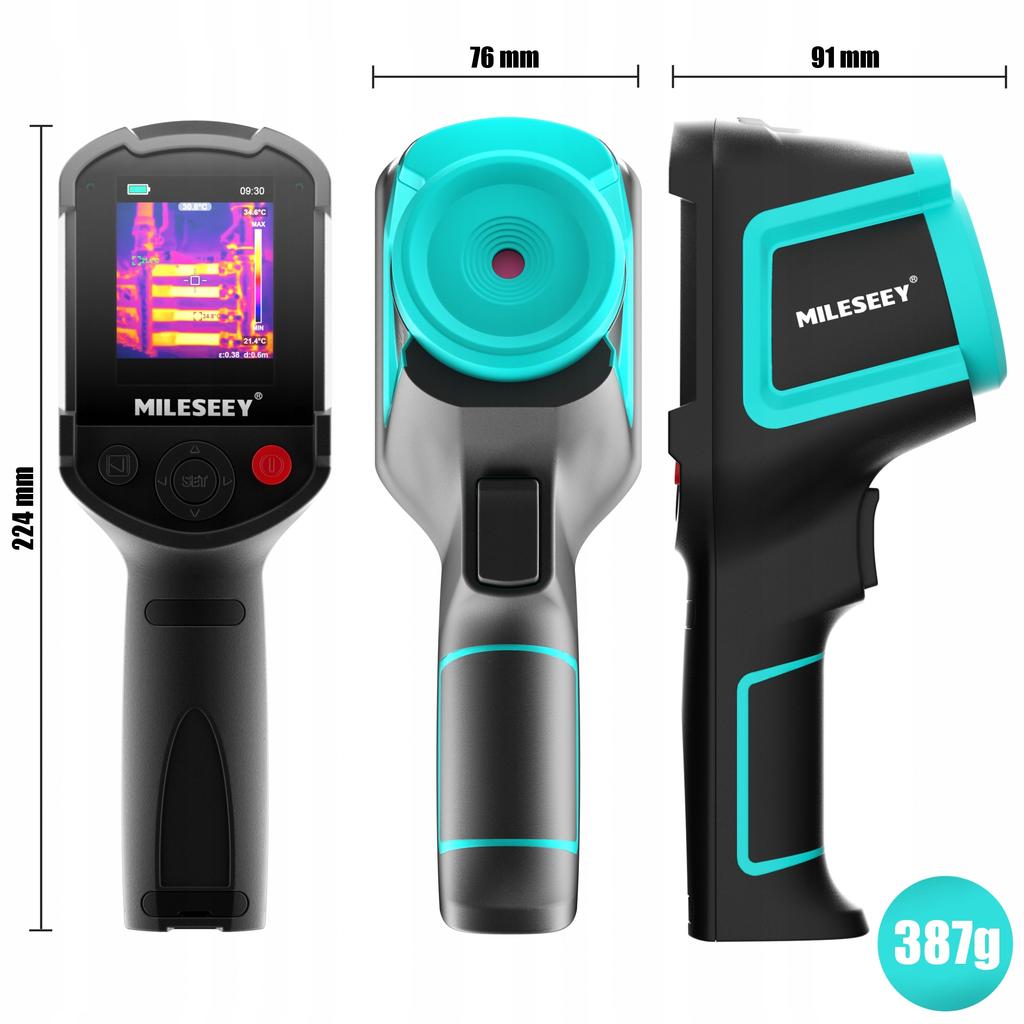

• Dimensions: 224 x 76 x 91mm

• Weight: 387g

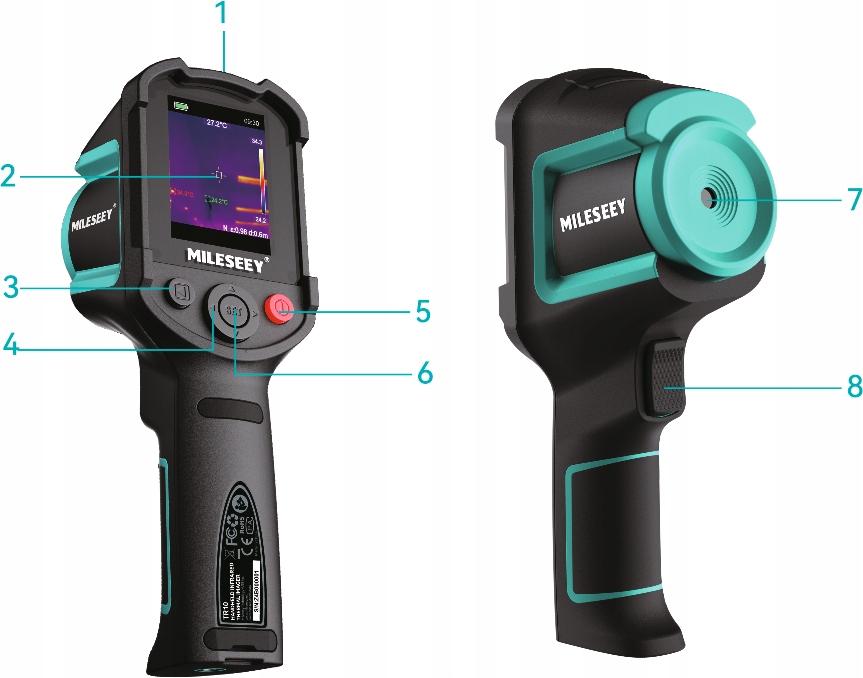

✅ DESCRIPTION OF THERMAL IMAGING CAMERA COMPONENTS:

1. USB-C charging port

2. LCD screen

3. Button: photo recording

4. Button: "up/down/left/right"

5. Button: "on/off/back"

6. Settings button

7. Lens Camera

8. Image recording/taking photos

✅ DISPLAY DESCRIPTION:

1. Charge status Battery

2. Center Temperature

3. Center Point/Crosshair

4. Maximum Temperature and Location

5. Minimum Temperature and Location

7. Maximum Temperature on the Side Temperature Bar

8. Temperature Bar

9. Minimum Temperature on the Side Temperature Bar

10. N: Normal Range (N will be replaced by H when the High Temperature Range is selected)

11. Emissivity Value (Adjustable)

12. Detection Distance

✅ KIT CONTENTS:

• TR10 thermal imaging camera,

• User manual in English and Polish!

• Original packaging,

• Protective case,

• USB Type-C cable.
