DIGITAL VIBROMETER VIBRATION METER PROBE

✅VIBROMETER - DIGITAL VIBRATION METER

The meter is used to measure speed, acceleration and displacement.

The meter was designed to control the vibration of all machines, electric and pneumatic tools.

The meter allows you to detect vibrations and oscillations in machines and devices.Thanks to vibration measurement, we can assess the condition of machines and devices in terms of synchronization, misalignment, looseness or loose parts.

✅ VIBRATIONS AND THEIR CONSEQUENCES:

The device allows you to detect and examine both mechanical vibrations, i.e. those caused by the operation of various types of machinery, as well as vibrations caused by public transport or others.

All types of vibrations can negatively impact the environment, both buildings and people and animals. Long-term vibrations can lead to structural damage. In the case of mechanical vibrations caused by the operation of a machine operated by a person, these vibrations can lead to pathological changes in the circulatory (vascular), nervous, and musculoskeletal systems.

✅TECHNICAL SPECIFICATION VIBROMETER

• Vibration Transducer Type: Piezo-Ceramic Shear Type

• Acceleration Measurement Range: 0.1~199.9m/s 2 peak

• Velocity Measurement Range: 0.1~199.9mm/s rms

• Displacement Measurement Range: 0.001~1.999mm p-p

• Measurement Accuracy: ±5% ±2digits

• Measuring Frequency Acceleration Range: 10Hz～1KHz (LO) 1KHz～15KHz (HI)

• Measuring Frequency Velocity Range: 10Hz～1KHz (LO)

• Measuring frequency offset range: 10Hz～1KHz (LO)

• Response time: 1 second

• Display: 3 1/2 digit LCD

• Power supply: 9V battery

• Standby current: ≤ 15 μA

• Working current: ≤ 25mA

• Battery life: 20 hours of continuous use

• Auto power off: turns off automatically after 60 seconds

• Display backlight: 7 seconds

• Operating temperature range: 0~40℃

• Operating humidity range: 30~90%RH

• Low battery indicator: 6.4V±0.2V

• Dimensions: 72x35x145 mm

• Weight: 229g (without battery)

• Operating temperature: -10 ℃ ~ 80 ℃

• Temperature accuracy: ± 2 ℃

✅ VIBRATION METER FEATURES

• Easy to use, compact design allows for easy portability with readings.

• Displays measurement value and status.

• Acceleration, velocity, and displacement measurement.

• Temperature measurement.

• Ability to select different vibration frequencies.

• A highly sensitive probe on a 94cm cable ensures accurate measurements, and selecting the appropriate tip for the measurement situation allows for precise measurements.

• 3 interchangeable tips included (including one magnetic for flat surfaces, e.g., housings).

• Low battery indicator.

• Automatic power-off function.

• Backlit LCD screen.

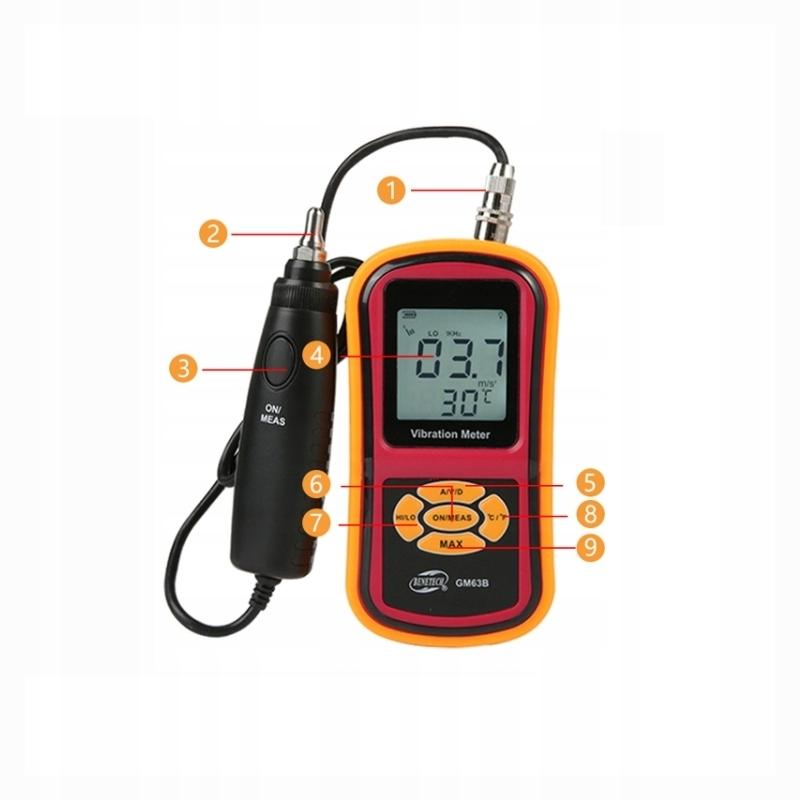

✅ DESCRIPTION OF THE VIBRATION METER PARTS:

1. Probe connector

2. Replaceable sensor tip

3. Measurement on/off button. Press to turn on the meter. Hold down while taking a measurement, release the button to freeze the measurement result on the display.

4. LCD display

5. Measurement mode change button (acceleration / velocity / displacement)

6. Device switch and measurement start button

7. Frequency selection button (only for acceleration measurement)

8. Temperature unit change button

9. Maximum value display button

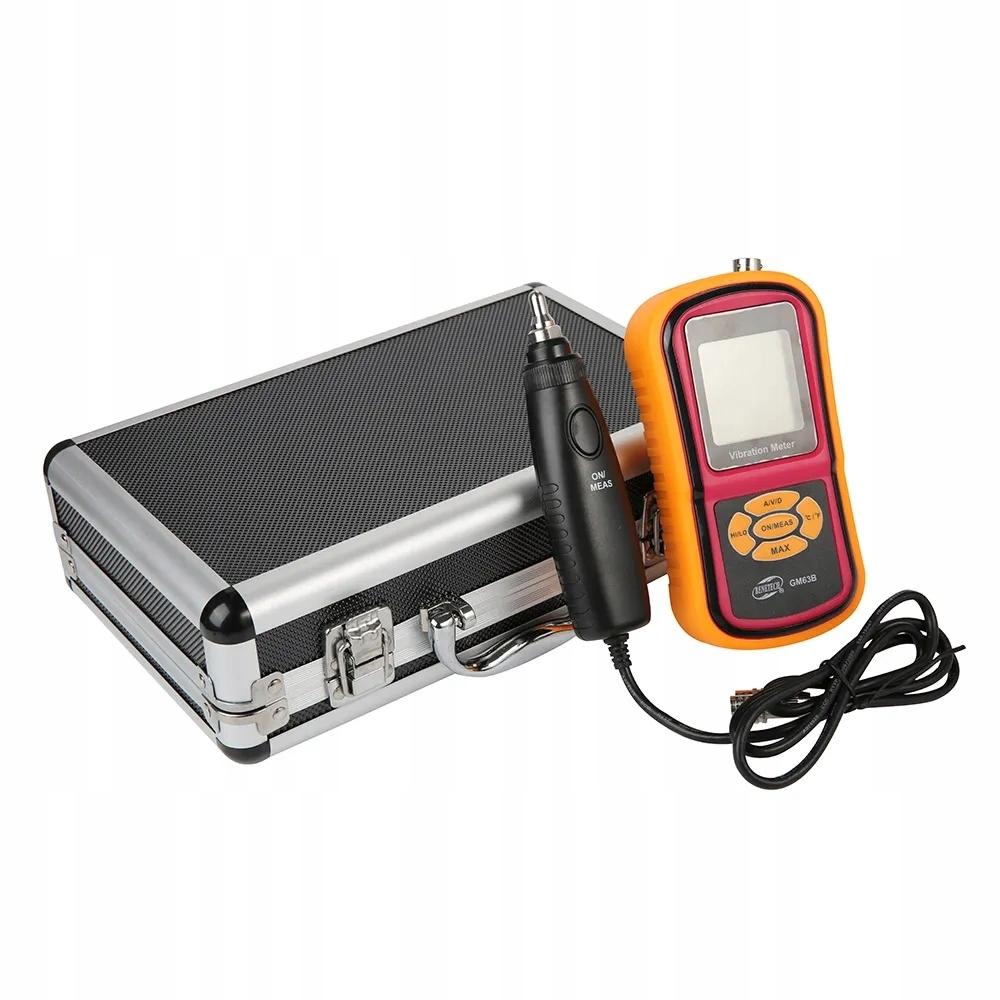

✅ SET CONTENTS:

• Benetech vibrometer

• vibrometer probe on cable

• elegant and practical case

• 3 probe tips

• user manual in Polish

• 9V battery
