ELECTROMAGNETIC FIELD METER CE WAVE TESTER 5G

✅ ELECTROMAGNETIC FIELD METER

WINTACT WT3122 WAVE TESTER

The electromagnetic field meter is used to measure electric radiation and magnetic emissions.

✅The device is also equipped with a temperature sensor. It also has a battery charging function via a USB cable.

Besides the basic measurement of current values, it also has maximum and average measurement values

The WT3122 is used in testing and examining electromagnetic radiation both indoors and outdoors.

The device is equipped with an internal, built-in electromagnetic radiation sensor. The radiation reading is displayed on a high-quality digital LCD screen.

✅ EXAMPLES OF METER APPLICATION:

✅ Observation of electromagnetic radiation in: Houses, apartments, offices, industrial buildings and outdoors.

✅ Testing of electromagnetic radiation for: Mobile phones, computers, home theater systems, and high-voltage cables.

✅ Testing the effectiveness of radiation protection measures: Protective clothing, anti-radiation foils and other articles for safety against E-M radiation.

✅ Impact and threats of electromagnetic radiation to humans:

1. May be one of the causes of leukemia in children.

2. Causes cancer and accelerates the spread of cancer cells.

3. Direct threat to the nervous, reproductive, and immune systems.

4. Mental retardation in children, weakened vision, and a negative impact on the development of skeletal tissues.

5. May cause hematogenic damage to the liver.

7. Negative impact on eyesight.

Furthermore, strong electromagnetic radiation can disrupt a person's natural bioelectric and biomagnetic fields. Elderly people, children, and pregnant women are particularly susceptible to this threat.

All types of electrical devices and appliances can be sources of artificial electromagnetic radiation.

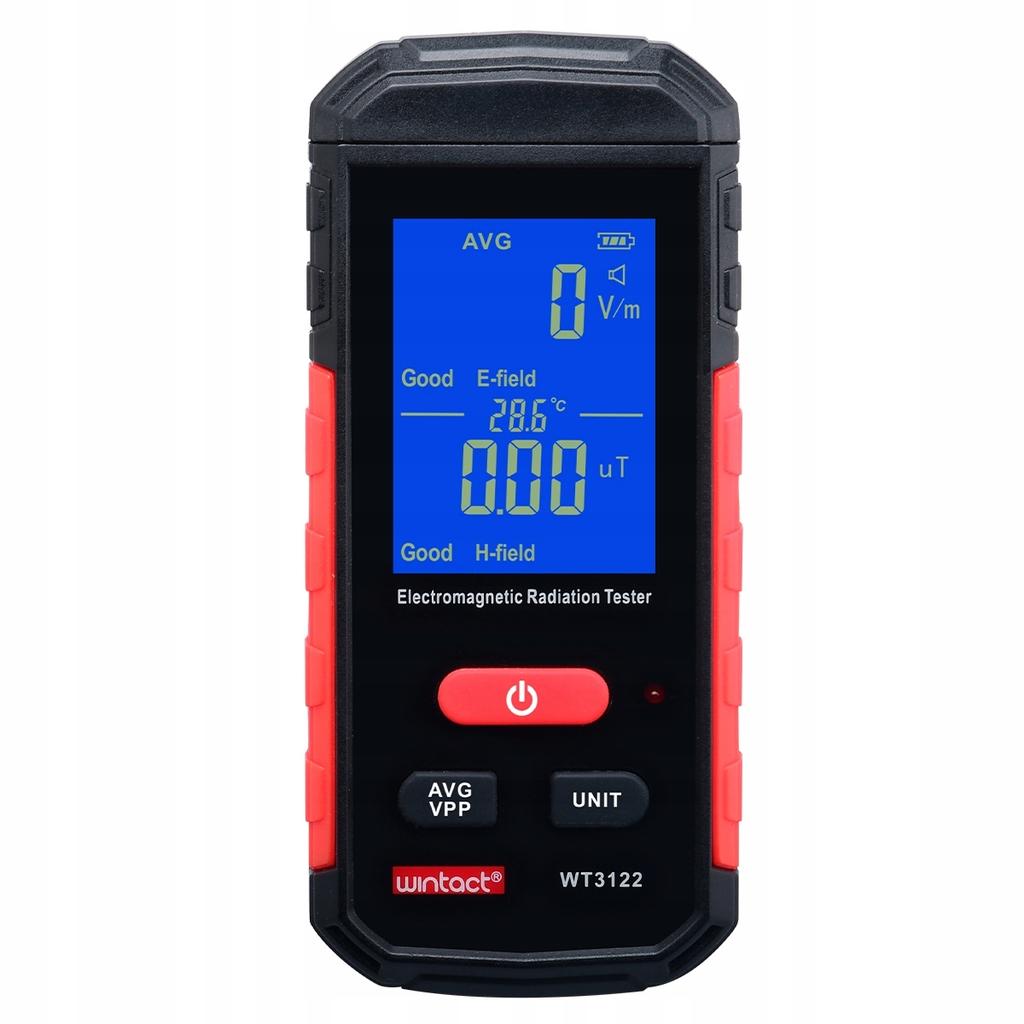

✅ DESCRIPTION OF ELEMENTS DISPLAY:

• VPP - maximum recorded value

• AVG - average recorded value

• HOLD - held value

✅ UNITS AND NOTATIONS:

• V/m - Electric field strength: volts per meter

• E-field - electric radiation

• Safe - value within the norm (safe)

• Harmful - value too high (dangerous)

• H-field - magnetic wave radiation

• µJ - unit of magnetic field strength: micro joule

• mG -unit of magnetic field strength:

✅ DESCRIPTION OF HOUSING ELEMENTS:

• 1. Induction zone

• 2. LCD display

• 3. Power button

• 4. Average / maximum value / mode change

• 5. Warning indicator - LED diode

• 6 Selecting the unit of measurement

• 7. Charging port

✅ The device meets the reference standards:

• GB8702-1988 Regulations for Electromagnetic Radiation Protection

• HJ/T10.3-1996 Environmental Impact Assessment Methods and standards on Electromagnetic Radiation

• GB9175-88 Hygienic Standard for Environmental Electromagnetic Waves

✅ TECHNICAL PARAMETERS OF THE ELECTROMAGNETIC FIELD METER:

• Units: V/m (electric field) / μT (magnetic field),

• Accuracy: 1 V/m (electric field) / 0.01μT (magnetic field),

• Range: 1V/m-1999V/m (electric field) / 0.01μT-99.99μT (magnetic field),

• Alarm threshold height: 40V/m (electric field) / 0.4μT (magnetic field),

• Display reading: 3-1/2-digit LCD,

• Frequency range: 5Hz—3500MHz,

• Sampling time: about 0.4 sec,

• Test mode: Dual, at the same time,

• Out of range reading: Display shows “1”,

• Operating temperature: 0°C~50°C,

• Operating humidity: Relative humidity ＜80%,

• Operating voltage: 9V,

• Power supply: built-in battery,

• Dimensions: 60 x 25 x 133 mm,

• Weight: 121 g.

✅ Reinforced and ergonomic housing:

• Soft touch buttons and housing - increased resistance to falls and pleasant to the touch material.

• Ergonomic housing with profiled sides.

• Large and clear display and small size of the device.

✅ Set contents:

• WT3122 Electromagnetic Field Meter

• USB Charging Cable

• User Manual in Polish

• Original Packaging
