SONOMETER - SOUND LEVEL METER DECIBLE METER

SONOMETER - DECIBLE METER

BENETECH DIGITAL SOUND LEVEL METER

The sound level meter has been designed to meet the safety requirements for measurements in engineering, medicine and industry.

It can be used to measure sound levels in various environments such as factories, offices, traffic, workstations, at home, but also to check the sound quality of audio systems.

• Sound level measurement;

• MIN/MAX value reading;

• Holding measurement results (function HOLD);

• Backlit LCD display;

• Manual or automatic shutdown;

• Configurable light alarm function;

• Automatic shutdown function with the possibility of disabling it;

• The device can be calibrated using the potentiometer on the back of the device.

• Measurement range: 30dBA~130dBA,

• Accuracy: ± 1.5 dB (94dB@1KHz),

• Frequency range: 31.5Hz~8KHz

• Equalization filter: A,

• Digital display: 4-line LCD display

• Resolution: 0.1dB,

• Sampling rate: 2 times / sec.

• Microphone: ½ ” electrolytic condenser microphone,

• Max Hold: holds the maximum reading,

• Power supply: 3 x 1.5V AAA batteries

• Usage conditions: 0~40℃,10~80%RH,

• Storage conditions: -10~60℃,0~90%RH

• Weight: 84.08g (without batteries)

• Dimensions: 50 x 33 x 159.5 mm

1. Power on and screen backlight button.

2. MAX/MIN function button.

3. Reading hold button (HOLD).

4. LCD display.

5. Electret condenser microphone.

6. Noise absorbing wind trap.

7. Calibration knob.

8. Sticker with technical parameters.

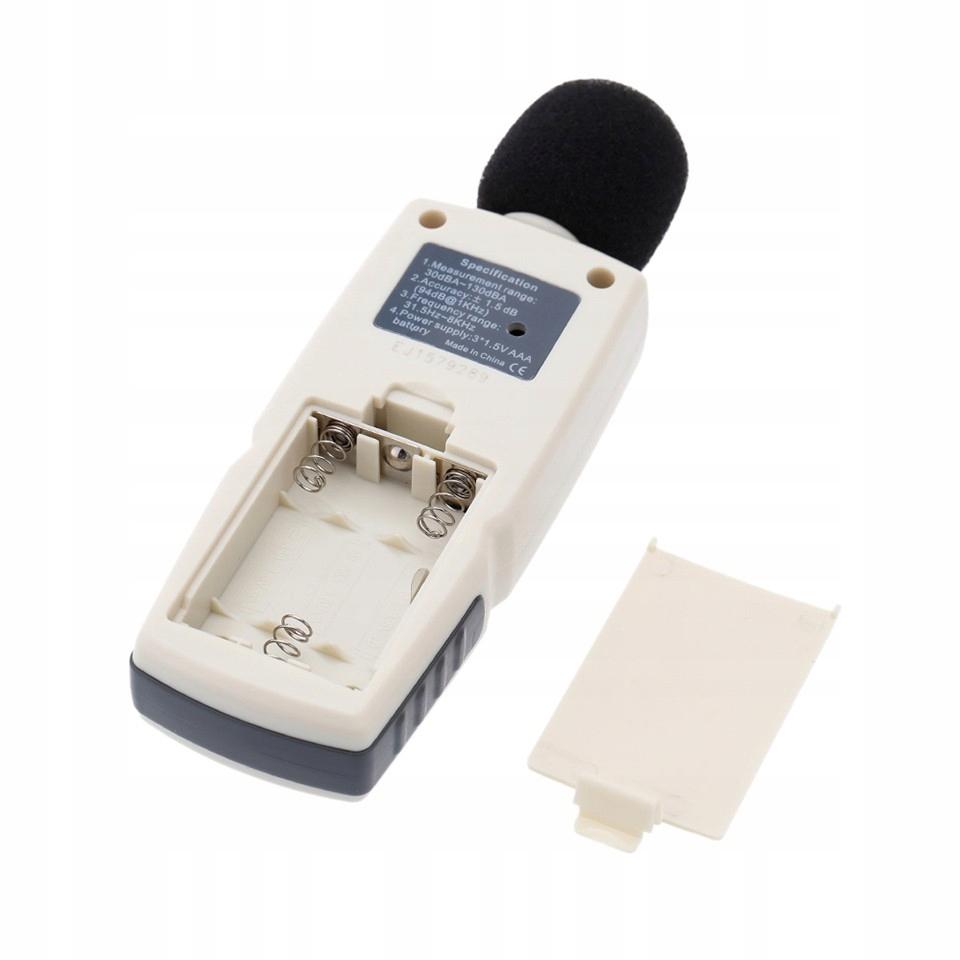

9. Battery cover.

Manual calibration possible

Using the potentiometer on the back of the housing and a standard acoustic calibrator.

1. Battery level indicator.

2. OVER - warning sign / reading exceeding the measurement range.

3. Data retention - HOLD.

4. Maximum reading.

5. Minimum reading.

6. Sound intensity measurement result.

7. Sound intensity unit.

• Digital decibel meter,

• 3 x battery 1.5V AAA

• User manual in Polish,

• Original packaging.
