Motherboard Asus ROG STRIX X870E-E GAMING WIFI /AMD X870/DDR5/SATA3/.2/USB4/WiFi/BT/PCIe5.0/AM5/ATX

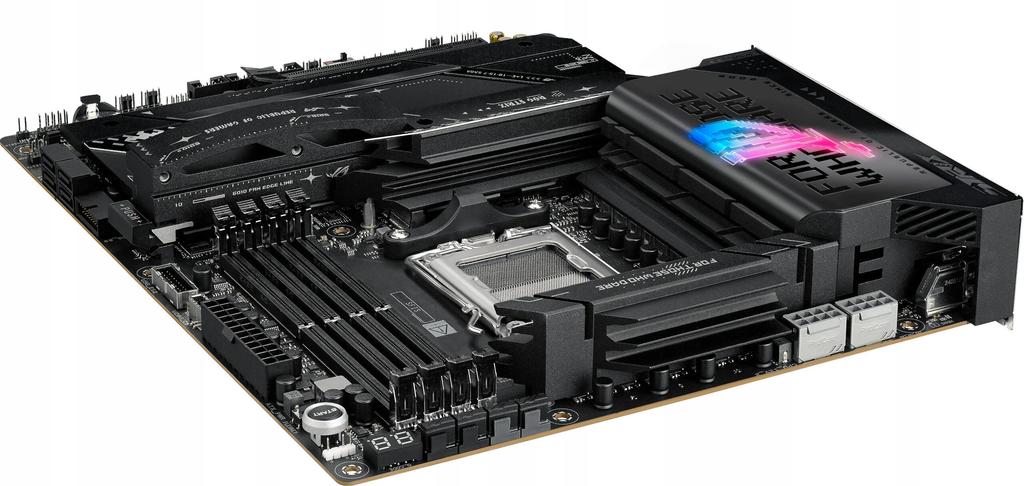

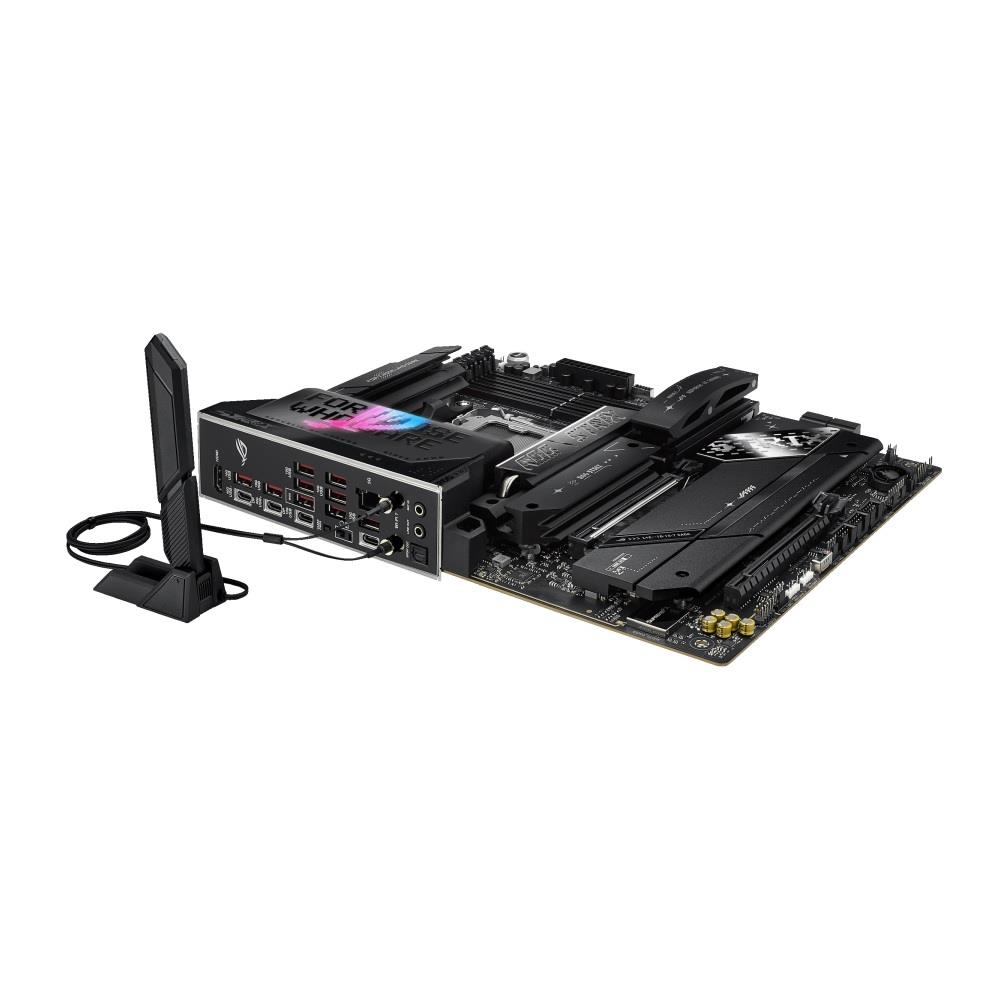

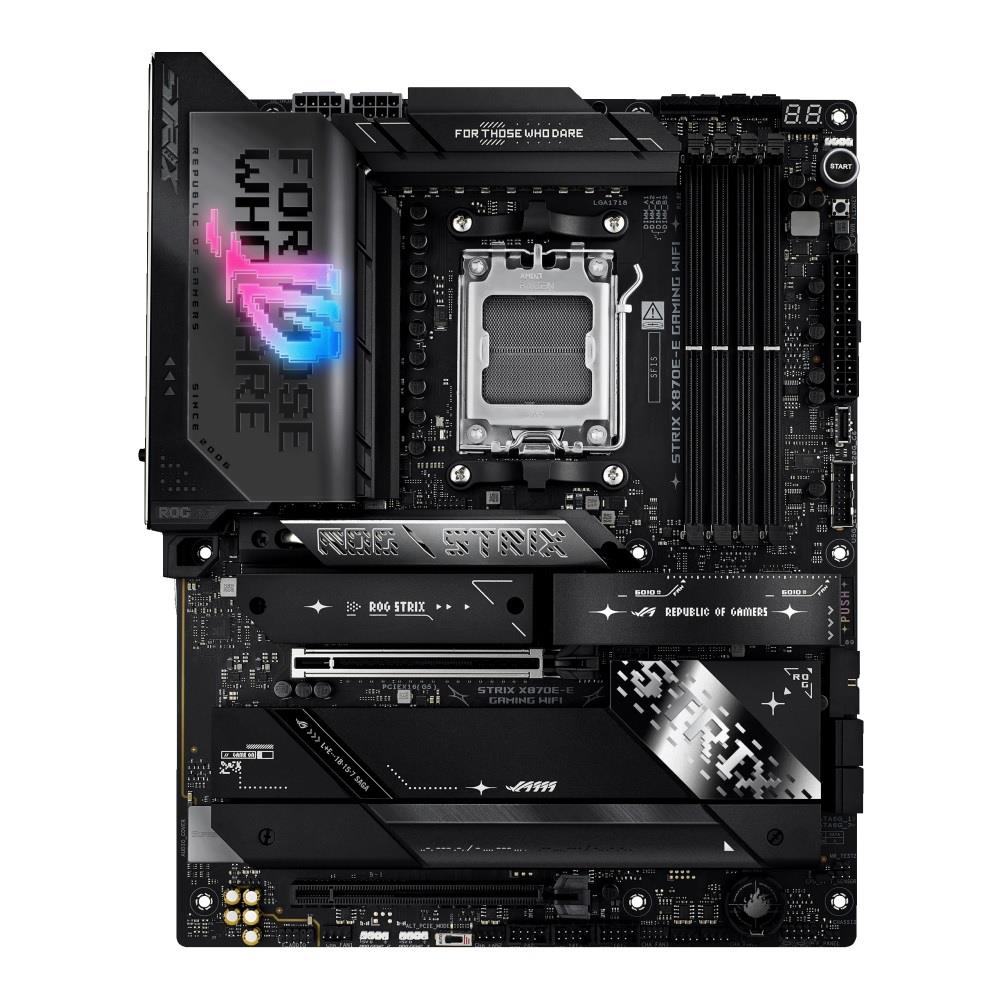

Asus ROG STRIX X870E-E GAMING WIFI Motherboard

AMD X870 DDR5 SATA3 M.2 USB4 WiFi BT PCIe5.0 AM5 ATX

• Number of DDR5 memory connectors: 4

• Maximum memory size: 192 GB

• RAM mode: Dual Channel

• RAM notes:

• Supports up to:

• - 8000+MT/s(OC) with Ryzen 9000 Series Processors

• - 8400+MT/s(OC) with Ryzen 8000 Series Processors

• - 8000+MT/s(OC) with Ryzen 7000 Series Processors

• ECC and Non-ECC Un-buffered DIMM

• Supports AMD EXTended Profiles for Overclocking (EXPO)

• NitroPath DRAM Technology

• ASUS Enhanced Memory Profile (AEMP)

• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration

• Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

• Built-in graphics card: None or AMD Radeon™ Graphics (depends on processor)

• Card slots graphics:

• 2x USB4 Type-C

• Notes on the card Graphics:

• Graphics specifications may vary between CPU types. Please refer to

• AMD CPU specifications

• Supports max. 4K@60Hz as specified in DisplayPort 1.4a

• Supports max. 4K@60Hz as specified in HDMI 2.1

• Integrated sound card: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

• Sound card ports:

• 2x Audio Jack

• Optical S/PDIF output

• Internal front panel audio jack

• Sound card notes:

• Impedance sense for front and rear headphone outputs

• Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking

• High quality 120 dB SNR stereo playback output and 110 dB SNR recording

• Supports up to 32-Bit/384 kHz playback

• Audio Shielding

• Savitech SV3H712 AMP

• Gold-plated audio jacks

• Premium audio capacitors

• Audio cover

• The LINE OUT port on the rear panel does not support spatial audio If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

Connectivity / communication

• LAN port: 1x 5 Gigabit LAN Realtek®

• Network card notes: ASUS LANGuard

• Maximum USB 2.0 ports: 6

• Maximum USB 3.x ports: 16

• Maximum USB 4.0 ports: 2

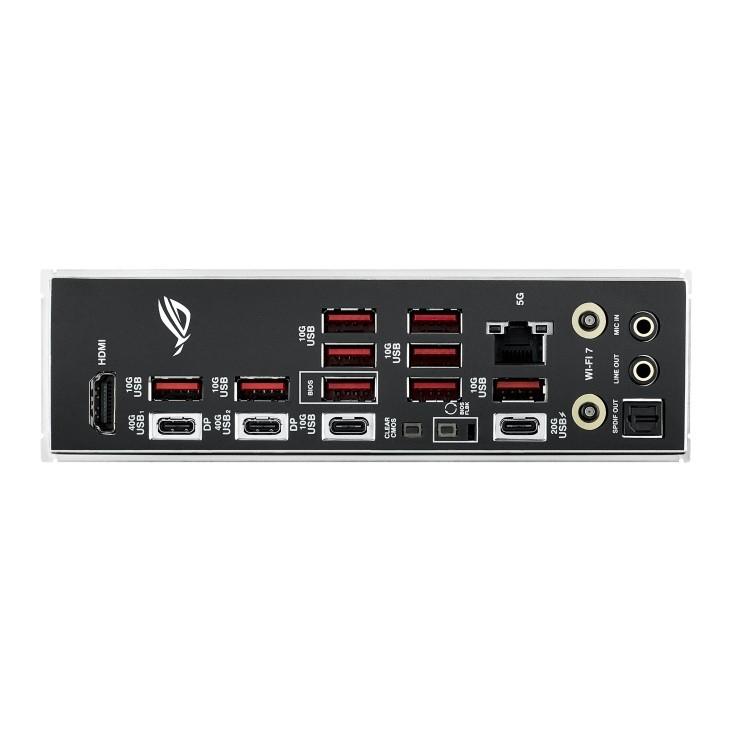

• Back panel USB ports: 9x USB 3.1 + 1x USB 3.1 Type-C + 1x USB 3.2 Type-C + 2x USB4 Type-C

• Onboard USB ports: 3x USB 2.0 (6 ports) + 2x USB 3.0 (4 ports) + 1x USB 3.2 Type-C (1 port)

• Wi-Fi port: IEEE 802.11a/b/g/n/ac/ax/be

• Bluetooth port: Bluetooth V5.4

• WiFi / BT notes:

• 2x2 Wi-Fi 7 (802.11be)

• Supports 2.4/5/6GHz frequency band

• Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate

• Wi-Fi features may vary depending on the operating system

• For Windows 11, Wi-Fi 7 will require24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E

• For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details

• Wi-Fi 6GHz frequency band and bandwidth regulator may vary between countries

• The Bluetooth version may vary

• Processor socket: Socket AM5

• Supported processor types: AMD Ryzen™ (AM5)

• Processor notes:

• AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

• Board Form Factor: ATX

• Motherboard Chipset: AMD X870

• Integrated SATA Controller: Chipset + CPU: 4x SATA III 6Gb/s - RAID 0,1,5,10 + 5x M.2 + RAID 0,1,5,10

• Controller Notes SATA:

• AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors:

• - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

• - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

• - M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)

• AMD X870E Chipset:

• - M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

• - M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

• - 4 x SATA 6Gb/s ports

• AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/

• 0/1/5/10. RAID 5 Funciton is only supported by AMD Ryzen 9000series CPU

• M.2_2 & M.2_3 slots share bandwidth with PCIEX16(G5)

• When M.2_2 & M.2_3 are occupied with SSD devices, PCIEX16(G5) will run

• x8 only

• PCI Express x16 slots: 2

• PCI slot notes:

• AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors:

• - 1 x PCIe 5.0 x16 slots (supports x16 mode)

• AMD X870E Chipset:

• - 1 x PCIe 4.0 x16 slot (supports x4 mode)

• PS/2 port: None

• Serial port (COM): None

• Parallel port (LPT): None

• Other ports and slots:

• Wi-Fi module with an antenna connector

• 4-pin CPU Fan header

• 4-pin CPU OPT Fan header

• 4-pin AIO Pump header

• 5x 4-pin Chassis Fan header(s)

• 3x Addressable Gen 2 header

• CPU Over Voltage jumper

• FlexKey button

• 10-1 pin System Panel header

• Thermal Sensor header

• Start button

• BIOS FlashBack button

• Clear CMOS button(s)

• Power port: ATX (24-pin) + 2x ATX12V (8-pin)

• Dimensions [W x H] (mm):305 x 244

• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

• Additional equipment:

• 2x SATA 6Gb/s cables

• 1x Thermal pad for M.2 22110

• 1x ASUS Wi-Fi moving antennas

• 1x Cable ties pack

• 1x M.2 Q-Latch package

• 2x M.2 Q-Slides

• 1x ROG key chain

• 1x ROG Strix stickers

• 5x M.2 Rubbers

• 1x Quick start guide

• Additional information: Operating System: Windows 11 64-bit
