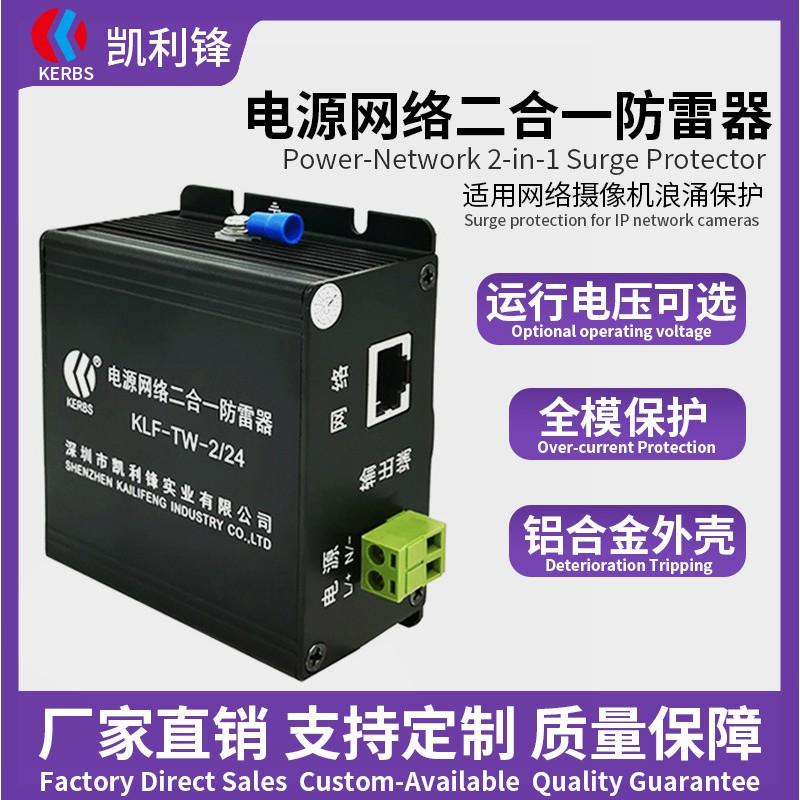

RJ45 PoE Surge Protector IP Camera Aluminum Housing Dual Port 24V DC 10kA Lightning Protection Network SPD

Packages list: same as you select;

Product Highlights: • Reliable dual-port protection for IP cameras and network devices against lightning-induced surges and transient overvoltages • Durable aluminum alloy housing ensures excellent heat dissipation and mechanical robustness • Supports high-speed Ethernet (100/1000 Mbps) with low insertion loss and minimal signal degradation • Designed for outdoor/indoor security systems, CCTV installations, and industrial networking environments • Compact, plug-and-play installation—no configuration required

Product Specifications: Model: KLF-TW-2/24 Operating Voltage (Un): 24 Vdc Maximum Continuous Voltage (Uc): 30 Vdc Nominal Discharge Current (In): 5 kA (8/20 μs) Maximum Discharge Current (Imax): 10 kA (8/20 μs) Voltage Protection Level (Up): ≤200 V (line-line) Operating Temperature Range: -40°C to +70°C Transmission Rate: 100 / 1000 Mbps Port Configuration: 2 x RJ45 (PoE-compatible) Housing Material: Aluminum Alloy

Note: • Ensure proper grounding for optimal surge suppression performance • Not suitable for AC mains or non-PoE applications • Complies with IEC 61643-21 standards for signal line SPDs
