Leica L6G Lino Plane Laser in a Case

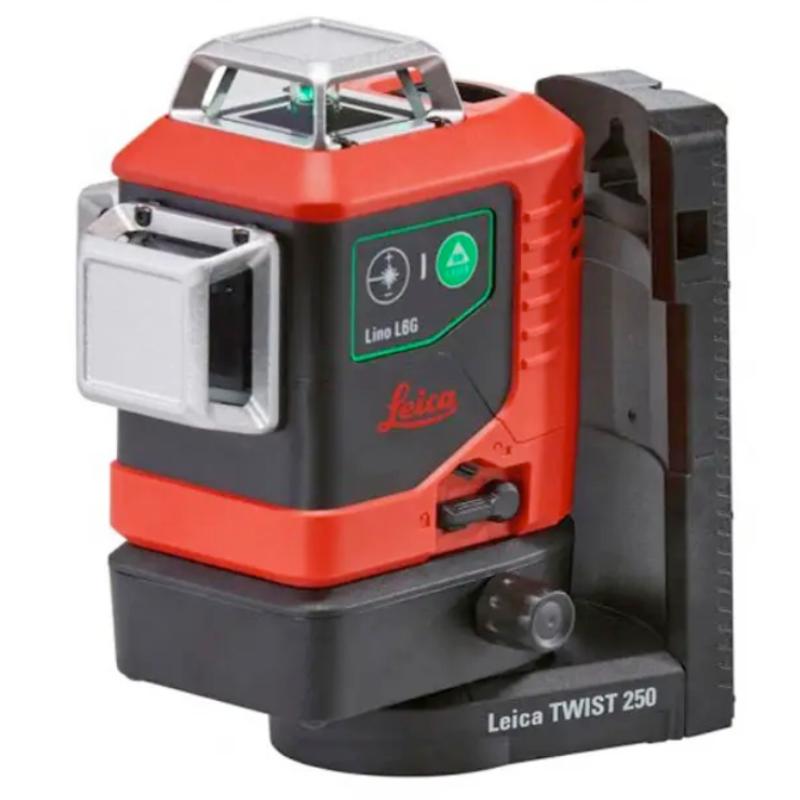

Leica L6G LINO Plane Laser in a Case

The LEICA LINO L6G is a laser that projects three 360° planes in green. After turning on the LINO L6G, it automatically levels itself within a range of +/- 4°, and each beam can be activated separately.

The laser has a plummet function, i.e., intersecting vertical lines allow you to transfer points from the floor to the ceiling, and after turning on the horizontal beam, you can transfer points on walls, displaying a total of 6 laser points.

An additional function is changing the beam intensity in 3 modes. The L6G housing is equipped with a tribrach with adjustment for aligning vertical beams. The device has a mode of operation with a laser beam receiver, which increases its measurement range up to 140m in diameter.

The LINO L6G has optical and acoustic signals informing about the laser deflection outside its self-leveling range. The laser level is powered by a lithium-ion battery and a charger. The laser can also be powered by batteries (3x AA) thanks to the included battery pack.

The compensator lock allows for work on slopes. The carrying case includes space for a receiver with a holder, allowing for easy storage of the entire set if necessary. The L6G laser comes with a multi-function magnetic holder that allows for mounting it to a steel structure or directly to a wall using wall plugs.

The holder is equipped with a sliding adjustment mechanism and a locking mechanism. The manufacturer provides a 24-month warranty on the product or a 36-month warranty after registering the product on the manufacturer's website, a maximum of 8 weeks after purchase.

Horizontal and two vertical green laser lines 360°

Best visibility thanks to high-power green laser diodes

Self-leveling over a wide range

Fixed plumb point thanks to the integrated base

Adjustable intensity of the laser lines (50%, 75%, 100%)

Operating range up to 35 meters

Lithium-ion power for up to 11 hours

Uninterrupted operation with the Triple-Power concept

Intelligent magnetic adapters with versatile Application

Online user manual

Working range (diameter): 70m / 140m with receiver

Self-leveling time: <3s

Work on slopes

Operating time on 1 battery charge: up to 11 hours (3 beams, 50% power)

LINO L6G plane laser

UAL 130 holder

Magnetic adapter for TWIST 250 holder

Sales document (Receipt / VAT invoice)

Laser beam: 525nm, green laser, class 2 Automatic leveling range: ± 4° Accuracy: ±2mm/ 10m Power supply type: Li-Ion battery + 3xAA battery compartment Ingress protection class: IP54 Battery operating time: up to 8 hours (3 beams, 50% power) Operating temperature: from -10°C to 50°C Dimensions: 124 x 107 x 154 mm Weight: 781g
