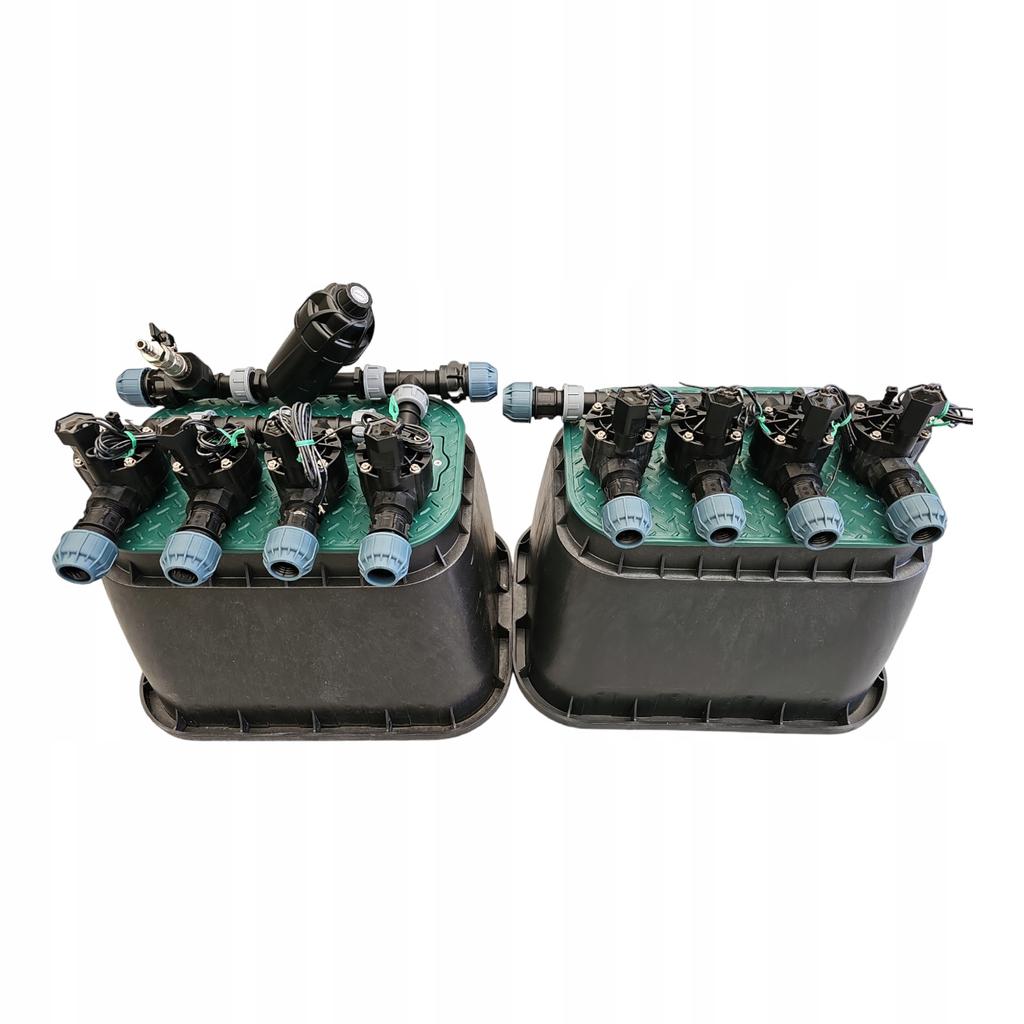

Rain Bird 8-Section Set: Collector with Filter and Compressor, 2 Wells, Pe 20

Rain Bird HV Set 8 Stations Collector with Filter Compressor and 2 PE20 Wells

Rainworks 8 Station Irrigation Set with Filtration and Standard Wells

Ensure effective irrigation of your garden with a complete irrigation set. Our 8-section irrigation collector is equipped with high-quality solenoid valves from the renowned Rain Bird brand and additional amenities, such as a compressor connection and a Watermil filter.

• ✳️Rain Bird HV Solenoid Valves: The eight-channel collector is equipped with Rain Bird HV solenoid valves, guaranteeing precise and even irrigation of each section of the garden.

• ✳️Compressor Connection: The compressor connection allows you to quickly and efficiently blow out the system of stagnant water before the onset of winter, which helps keep the system in perfect condition.

• ✳️Watermil 1 Filter: The Watermil 1 filter ensures effective water filtration, eliminating impurities and protecting the solenoid valves from damage.

• ✳️Rainworks Standard Manholes: The set includes 2 Rainworks Standard Manholes, which facilitate access to the solenoid valves and enable easy maintenance and repairs.

• The set is designed for PE pipe with a diameter of 20 mm.

8-Station Irrigation Collector - Rain Bird 100-HV with Watermil Filter

Ensure perfect irrigation conditions for your garden with the Rain Bird collector.

Our complete set is equipped with solenoid valves from the renowned Rain Bird company, enabling precise irrigation control on 8 sections.

Additionally, the compressor connection ensures effective blowing of the system before the arrival of winter.

✳️Rain Bird 100-HV Solenoid Valves (8 pieces):

• Adjust the amount of water for each section of the garden.

• Solid construction guarantees reliability.

✳️Swivel Collector Tees (7 pieces) and Swivel Collector Elbows (2 pieces) pieces):

• They facilitate the configuration of the irrigation system.

• They provide convenient connections between components.

✳️Connectors 20-1` (11 pieces):

• Hassle-free connections between solenoid valves and PE pipe.

✳️Watermil 1`` Filter:

• Effectively eliminates impurities, protecting the system from damage.

✳️Compressor Connection:

• Quick and efficient blowing out of the system before the arrival of winter.

• Allows for rapid emptying of water from the system.

• Connection for PE pipe with a diameter of 20mm.

• Perfect for watering gardens with various water needs.

• Collectors for 25mm and 32mm diameter pipes are also available at our other auctions.

Invest in a proven irrigation system from Rain Bird and enjoy the beauty of your garden all year round!

Assembly of the entire collector does not require the use of any tools!! All you need is your own hands :)

⚡ The manifold should be assembled according to the diagram in the photo above.

⚡Threaded connections between the solenoid valves and output connectors, as well as the solenoid valves and manifold tees, should be protected with Teflon, i.e., wrapped with the included Teflon tape, making about 16 wraps around each threaded connector.

⚡The compressor connection is already Teflon-coated by us!! Just tighten it all the way.

⚡We'll give you the Teflon tape needed to protect the manifold against possible leaks for FREE!!

ATTENTION!! Collector connectors (tees and elbows) used in the collectors are always from the same company (Tavlit, Irritec or Elysee - depending on availability)

Each collector will consist of tees and elbows from the same company!!

RainWorks Standard Electrovalve Manhole - Reliability and Functionality in One!

Are you looking for a reliable electrovalve manhole for your irrigation system? This is the RainWorks Standard Solenoid Valve Manhole - a product of a renowned company, combining solid construction with ease of use.

⭐Up to 4 Solenoid Valves:

• The manhole is designed to operate up to 4 solenoid valves, allowing for comprehensive irrigation control in your garden.

⭐Comfortable Handle on the Cover:

⭐Original Product, High Quality:

• The manhole comes from the renowned manufacturer RainWorks, guaranteeing reliability and durability.

• Dimensions of the Cover: 400x275mm

• Dimensions of the Base: 520x390mm

• Height of the Manhole: 325mm
