Globe Chamfer Cutter with Bearing Z2 45° D24.3 S8Mm

GLOBUS Chamfer Cutter with PREMIUM Bearing

Cutter with HM blades brazed to a top-quality steel body. Each cutter is quality tested to guarantee excellent cutting quality and balance. For materials such as wood, plywood, sandwich panels, and plastics.

The lower bearing allows the cutter to be guided along a template placed under the milled material.

• Diameter (D [mm]): 24.30

• Working height (I [mm]): 8.00

• Length (L [mm]): -

• Shank diameter (S [mm]): 8.00

• Angle (A [°]): 45.00

• Number of teeth (Z): 2

• Rotation (ROTATION): RH - Right

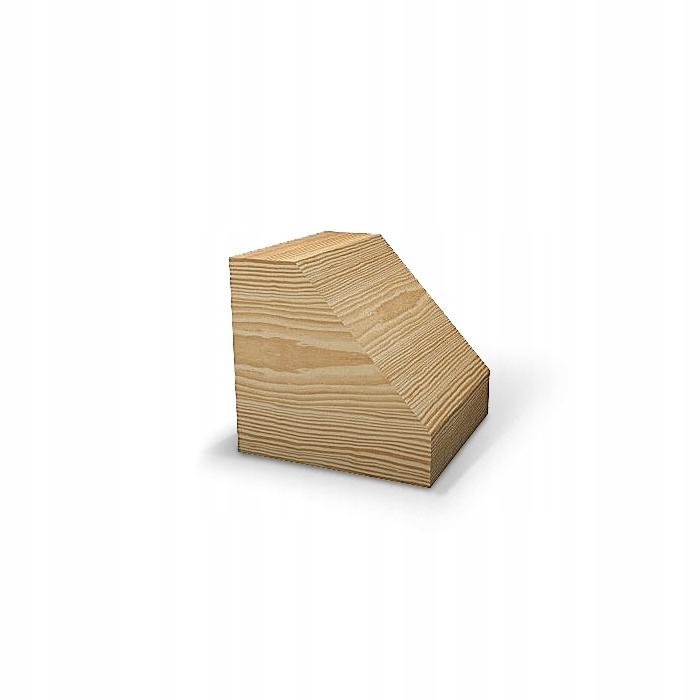

APPLICATION: Edge chamfering, working with a template DO MACHINE: Top spindle milling machine MATERIAL: Solid wood, wood-based materials, PVC edging
