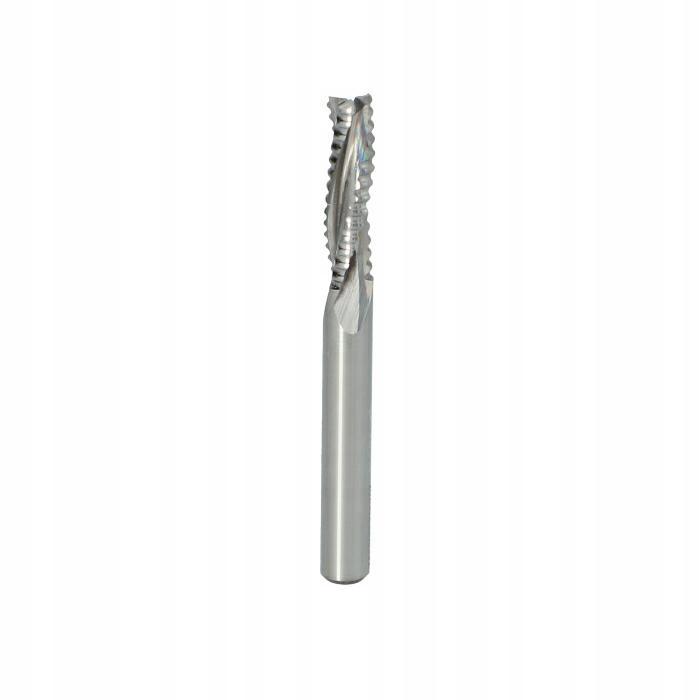

Solid carbide milling cutter Z3 Coarse D=6 I=22 =60 =6/Positive

ITA TOOLS Z3 Solid Carbide Spiral End Mill

Z3 solid carbide end mills from the premium series are manufactured from a special type of carbide that is characterized by long service life. Designed for machining on CNC machines and handheld/stationary milling machines.

A wide range of dimensions and the possibility of applying a coating will allow you to customize the tool to your individual needs.

• Diameter (D [mm]): 6.00

• Working height (I [mm]): 22.00

• Shank diameter (S [mm]): 6.00

• Total length (L [mm]): 60.00

• Revolutions (REVOLUTION): Right-hand

• BODY (BODY): Solid Carbide

• Number of teeth (Z): 3

• Two-flute cutter, positive

• Upward chip ejection

• Special type of carbide with increased service life

• Coating possible

aluminum: A0, A1, A2, PA6, PA7, PA1, PA11 etc.; Dibond composite,

plastics:

PLEXI, PE - polyethylene,

PE-LD - low-pressure polyethylene,

PE-HD - high-pressure polyethylene,

PP - polystyrene,

PS-E - expanded polystyrene (styrofoam),

PW - polycarbonate,

PVC (PVC) - polyvinyl chloride,

PETF - polyesters,

PA - polyamide,

ABS, POM, PMMA; HPL.

Size: L
