Villager Jigsaw Vlp 1320 Body 18 V 3000 SPM Wood 90

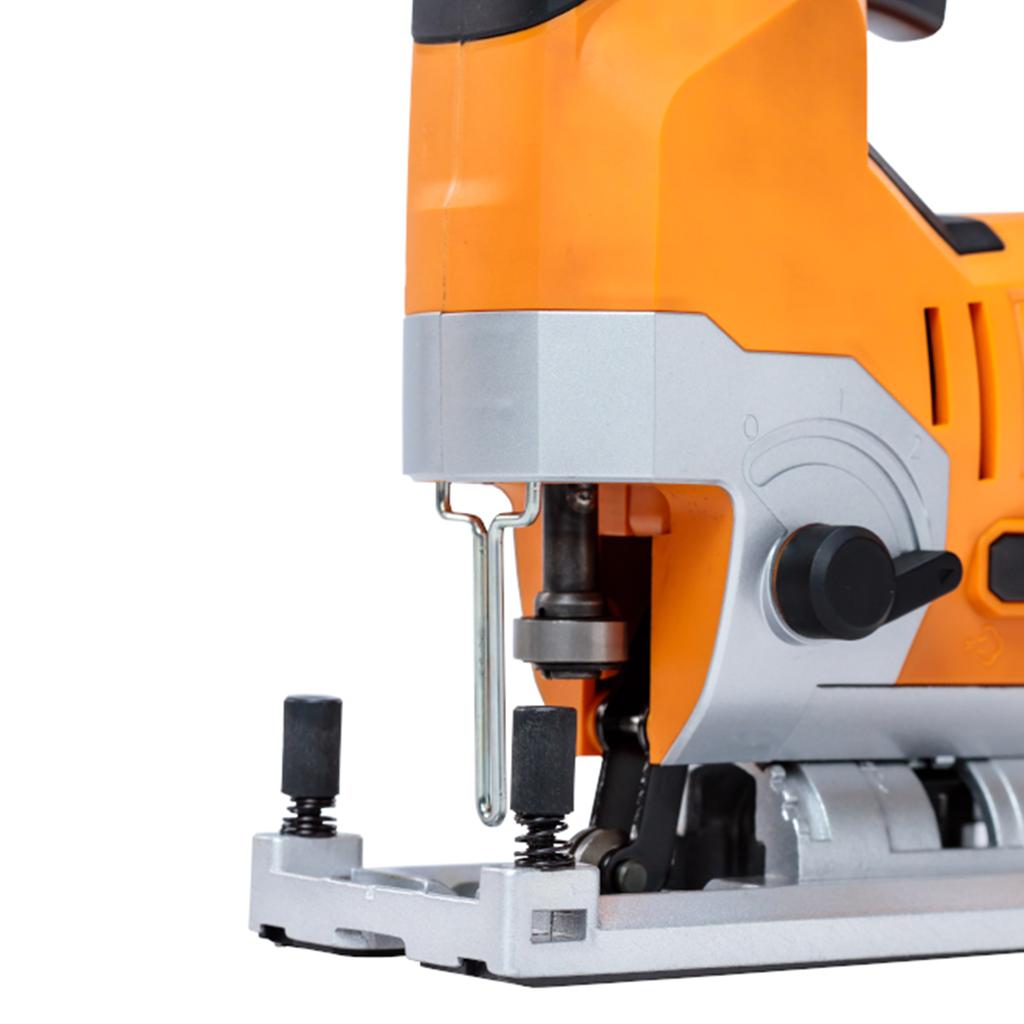

VILLAGER VLP 1320 BODY 18 V Cordless Jigsaw

The VILLAGER VLP 1320 is a cordless jigsaw from the FUSE 18 V system, equipped with a brushless motor. The tool reaches up to 3000 strokes/min, and the blade stroke is 26 mm.

The maximum cutting depth is 90 mm in wood and 10 mm in metal. The adjustable shoe allows for bevel cuts at angles up to 45°. The product is offered in the BODY version, i.e. without a battery and charger.

• FUSE 18 V system - the jigsaw works with compatible Villager batteries from the same platform.

• Brushless motor - the drive design does not use classic carbon brushes.

• Up to 3000 strokes/min - allows you to adjust the cutting speed to the type of material and the blade used.

• 26 mm blade stroke - allows you to work when cutting wood, metal and other compatible materials.

• Cutting wood up to 90 mm - maximum cutting depth declared by the manufacturer.

• Cutting metal up to 10 mm - when using the appropriate blade.

• Cutting Bevel up to 45° – adjustable foot allows for angled cuts.

• Tool-free foot adjustment – makes it easy to change the cutting angle without using additional tools.

• Cordless power supply – allows for operation without a power cord.

• Weight 1.95 kg – the compact design makes it easier to guide the device during work.

• BODY version – battery and charger are not included.

The VLP 1320 model is equipped with a brushless motor, which does not use carbon brushes typical of classic commutator motors.

This solution is used in cordless power tools and limits the number of consumables in the drive system.

Up to 3000 strokes/min

The jigsaw reaches a speed of up to 3000 strokes/min, and the length of a single blade stroke is 26 mm.

These parameters allow the device to be used for straight cutting and cutting out curves and shapes when using a blade appropriate for the material being processed.

Cutting wood up to 90 mm

The maximum cutting depth in wood declared by the manufacturer is 90 mm.

The jigsaw can be used, among others, for cutting boards, wood-based boards, panels, strips and elements used in assembly and carpentry works.

Cutting metal up to 10 mm

When using the appropriate blade, the device also allows for cutting metal up to 10 mm thick.

The type of blade and tool settings should be Always select the appropriate setting for the type and thickness of the material being processed.

Bevel cuts up to 45°

The adjustable working foot allows you to perform bevel cuts at an angle of up to 45°.

This function can be used when cutting elements at an angle, for finishing work, and for preparing joints requiring a beveled edge.

Tool-free foot adjustment

Changing the foot position can be done without the use of additional tools, making it easier to switch between straight and bevel cuts.

This solution allows you to quickly prepare the jigsaw for the next type of work.

VILLAGER FUSE 18 V System

The VLP 1320 is part of the VILLAGER FUSE 18 V platform and works with compatible Li-Ion batteries from this series.

Your FUSE 18V battery can also be used with other compatible power tools from this system.

BODY version without battery

The product is sold as a BODY, therefore the set does not include a battery or charger.

A compatible VILLAGER FUSE 18V battery and a suitable charger are required to get started.

• Brand: VILLAGER

• Model: VLP 1320

• Type: cordless jigsaw

• Version: BODY

• Battery System: VILLAGER FUSE

• Voltage: 18 V

• Motor Type: brushless

• Speed: 0–3000 spm

• Blade Stroke: 26 mm

• Maximum Cutting Depth in Wood: 90 mm

• Maximum Cutting Depth in Metal: 10 mm

• Maximum cutting angle: 45°

• Footrest angle adjustment: yes

• Tool-free footrest adjustment: yes

• Power supply: cordless

• Battery included: no

• Charger included: no

• Weight: 1.95 kg

• EAN: 8605032620114

• VILLAGER VLP 1320 BODY cordless jigsaw

• Instruction manual and safety instructions

Cordless jigsaw for wood and metal

The VILLAGER VLP 1320 is a brushless FUSE 18V jigsaw with a speed of up to 3000 spm and a 26mm blade stroke. It can cut wood up to 90mm, metal up to 10mm, and make bevel cuts up to 45°. The BODY version is designed for users with a compatible FUSE 18V battery and charger.
